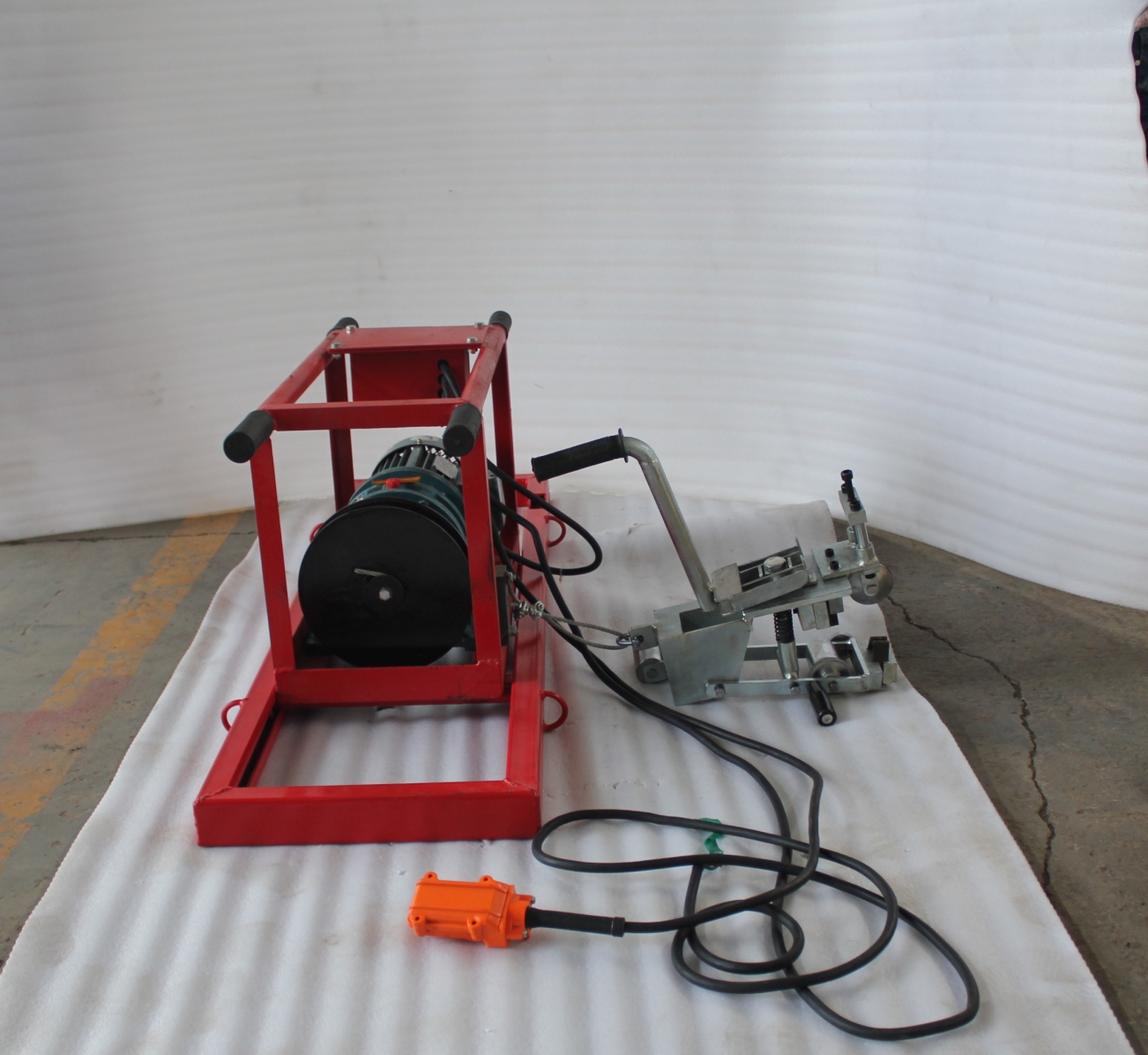

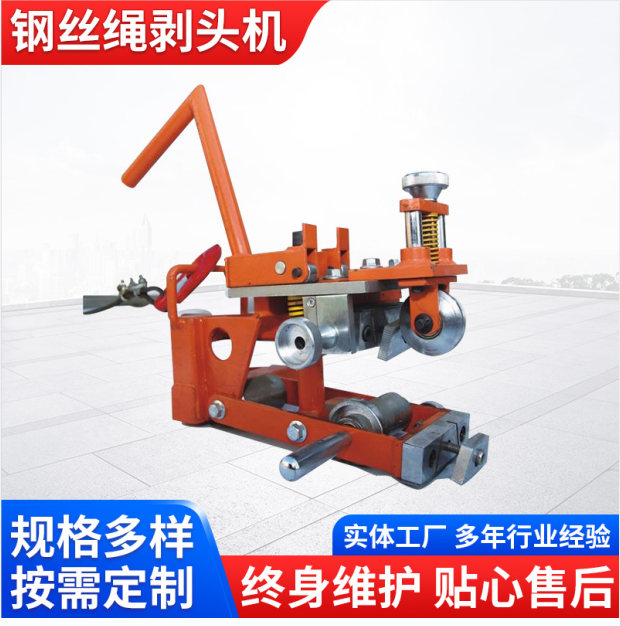

Wire Rope Head Stripping Machine, Explosive-Proof Wire Rope Belt Head Stripping Machine for Mining

Separation of coverings for conveyor belts, such as fabric cores, steel wire rope cores, between the coverings and canvas, between the coverings and steel wire rope, and between the canvas.

Standard Conveyer Belt Peeling Machine Technical Specifications:

Power, Voltage: 380V 50Hz

2. Power: 0.75 Kw, 1.1 Kw, 1.5 Kw

3. Weight: 32 Kg

4. Application Range: Various layered conveyor belts with joints, including EP, NN, cotton duck, and other materials, in widths ranging from 650mm to 2200mm.

Features of Standard Conveyer Belt Peeling Machine:

1. Large stripping area and fast speed significantly reduce labor intensity and minimize the time required for joints.

2. Lightweight for easy carrying and handling.

3. Stable operation.

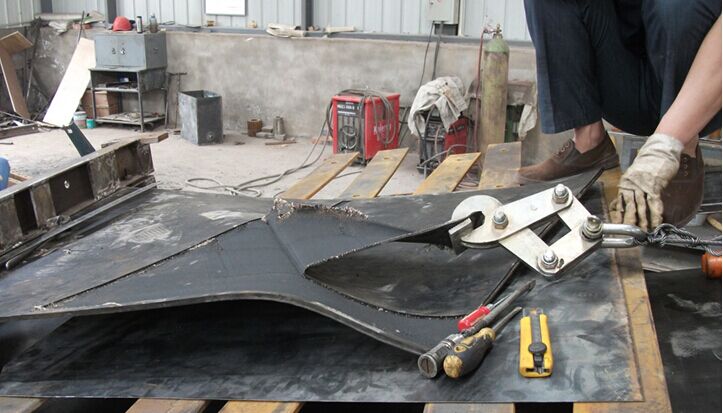

How to Use a Standard Conveyor Belt Peeling Machine:

1. Align the conveyor belt centerline according to standard procedures; the corresponding joint should be cut and separated layer by layer.

2. Place the conveyor belt剥头机 in the proper position and secure it with steel wire rope.

3. Power on.

4. Clamp the separated layers with a fixture, start the motor, and use a blade to score the剥离部分 at the appropriate location.

5. After the layer is peeled off, repeat the above steps to peel off separately.

Second, third, etc.

Caution for Common Conveyor Belt Skinning Machine Use:

1. Power connection must be performed by a qualified electrician.

2. Secure the剥头机 during use to prevent sliding.

3. Do not exceed the specified width during stripping.
