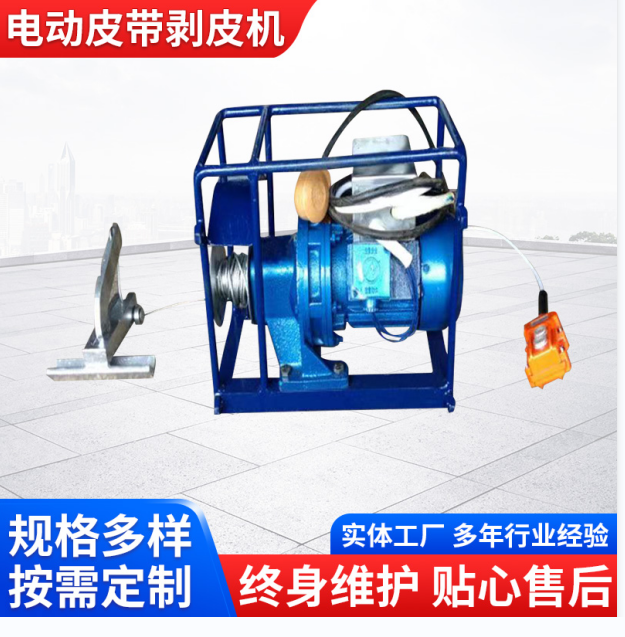

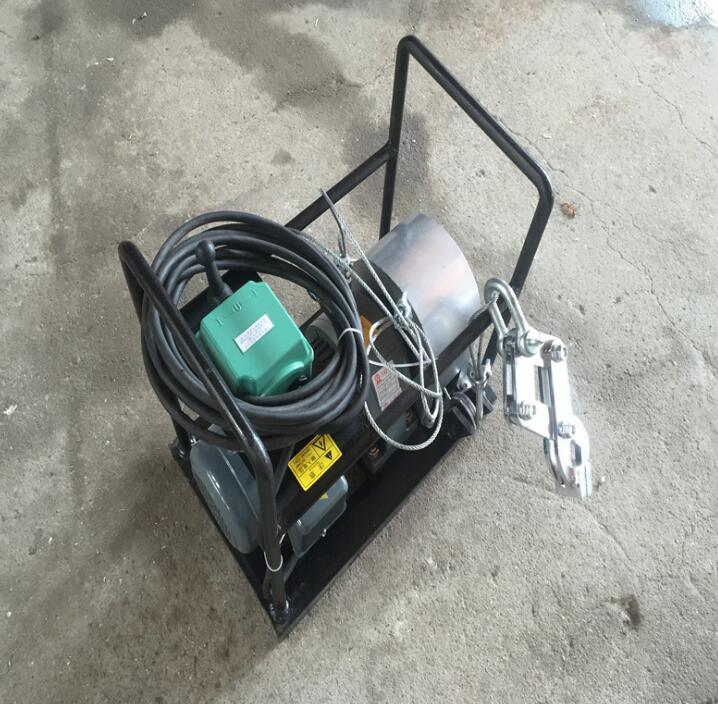

Wire Rope Core Stripper Conveyor Belt Skinning Machine Mining Electric Belt Peeling Machine
Wire Rope Head剥皮机 Application Range:
Separation of covering rubber from fabric and steel wire rope cores of conveyor belts, as well as between the fabric and steel wire rope.
Wire Rope Head Stripping Machine Technical Specifications:
Power supply, voltage: 380V, 50Hz
2. Power: 0.75 Kw, 1.1 Kw, 1.5 Kw, 3 Kw
3. Weight: 40KG, 45KG, 50KG, 55KG
4. Applicable Range: Layered joints of various types such as EP, NN, cotton duck, and various widths of 650mm to 2200mm for standard conveying belts
Wire Rope Head剥皮机 Features:
1. Large stripping area and fast speed significantly reduce labor intensity and shorten the time required for joints.
2. Lightweight for easy carrying and handling.
3. Stable operation.

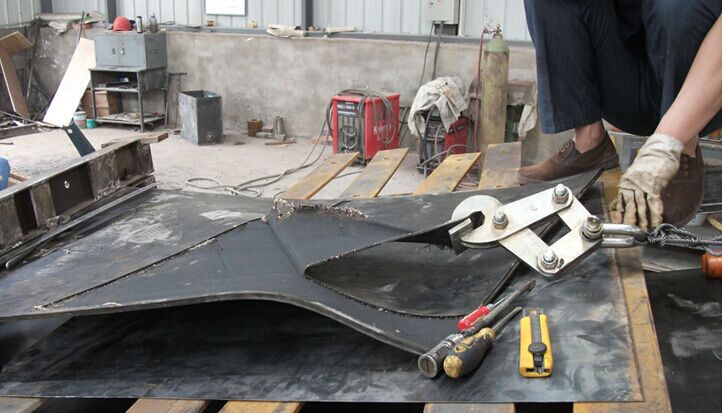

How to Use Wire Rope Head Removal Machine:
1. Align the conveyor belt using standard methods, and then cut the corresponding joint with a knife to separate a layer.
2. Place the belt stripping machine in the proper position and secure it with a钢丝rope.
3. Power on.
4. Clamp the separated layer with a fixture, start the motor, and use a blade to score the剥离 part at the appropriate location.
After removing one layer, repeat the above steps to strip off the second, third, and so on.
Wire Rope Head Stripping Machine Usage Precautions:
1. Power connection should be performed by a professional electrician.
2. Secure the剥头机 during use to prevent slippage.
Do not exceed the specified width during stripping.
