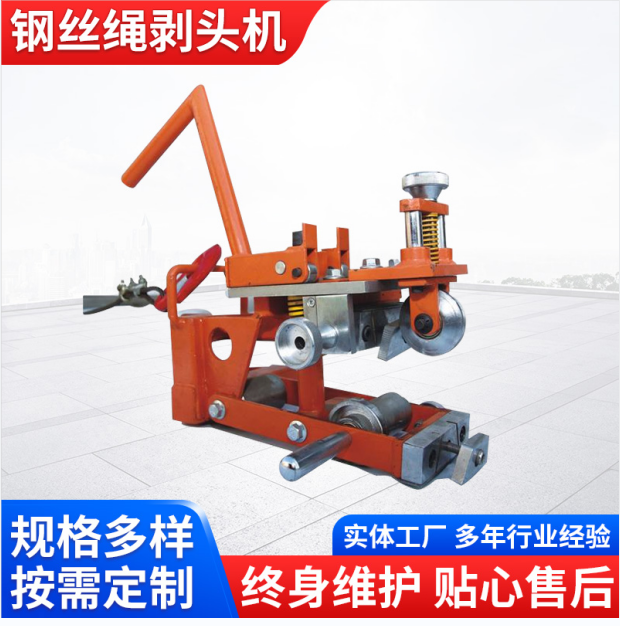

Wire Rope Stripping Machine, Explosion-proof Electric Wire Rope Stripping Machine, Conveyor Belt Skinning Machine

Usage:

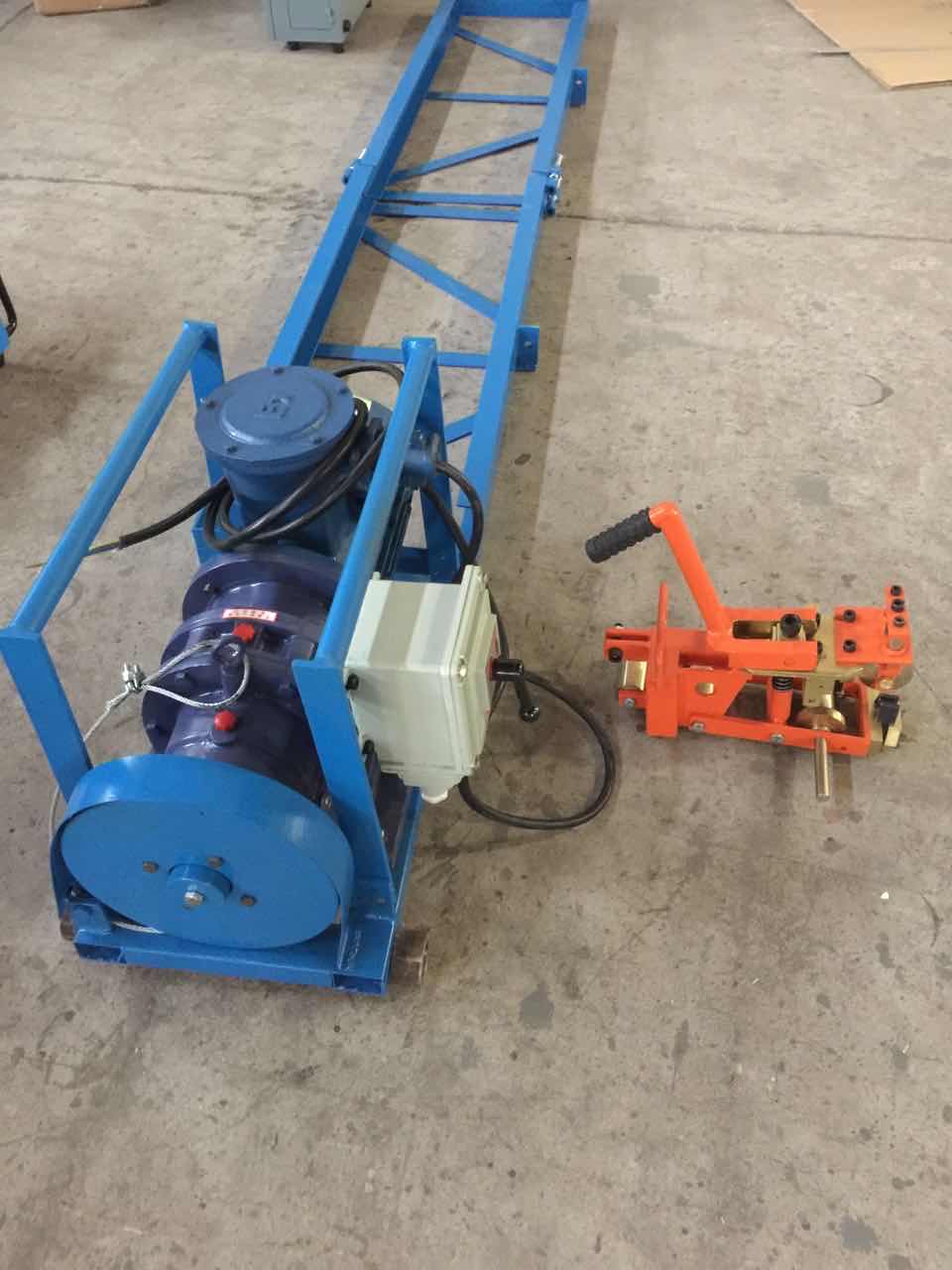

Power plants, mining, steel mills, ports, petrochemicalsAYThe BPJ series of peelers is designed for securing and cleaning the adhesive layer on the leading edge of the belt conveyor during the preparation of belt joints, which can be used in various situations and locations.

Large stripping area and high speed significantly reduce labor intensity and the time needed for joints.

2. Light in weight, easy to carry and transport.

3. Stable operation.

Motor Power: 0.75 kW

Line Speed: 0.3 m/s

3. Strip Width: 200mm (Conveyor Belt & Steel Cord Conveyor Belt) 400mm (Standard Belt)

Usage Instructions:

1. Align the conveyor belt centerline using standard methods, and then cut and separate the corresponding joint area by slicing through it, peeling off one layer.

2. Place the conveyor belt stripping machine in the appropriate position and secure it with钢丝绳.

3. Power on.

4. Clamp the separated layer with a fixture, start the motor, and use a blade to score the剥离部分 at the appropriate location.

After removing the first layer, repeat the above steps to peel off the second, third layers, etc.

Cautionary Notes:

Power connection should be performed by a qualified electrician.

2. Secure the peeler during use to prevent it from sliding.

3. Do not exceed the specified width during stripping.
