BPJ-3 Tape Peeling Machine, Conveyor Belt Peeling Machine, Explosion-proof Wire Rope Peeling Head Machine

For stripping layers during conveyor belt joints, especially suitable for nylon belt and canvas belt stripping. The nylon belt can strip layers up to a width of350mm. Enhance joint efficiency and alleviate workers' labor intensity.

 The XLP-100 electric stripping machine boasts the advantage of using a 220V voltage, which reduces the electrical preparation required at the joint site. Additionally, the machine weighs only 21 kg and is equipped with a handle for easy portability.

II. Composition:

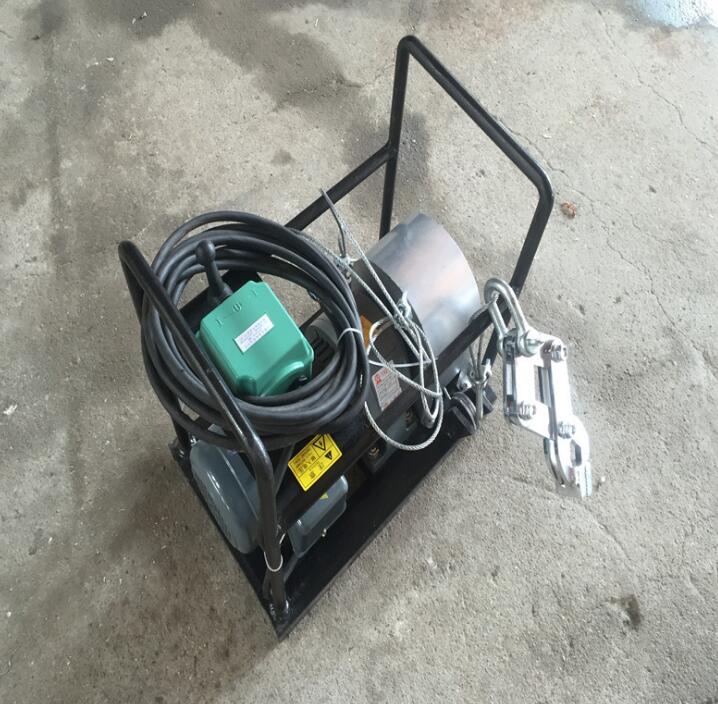

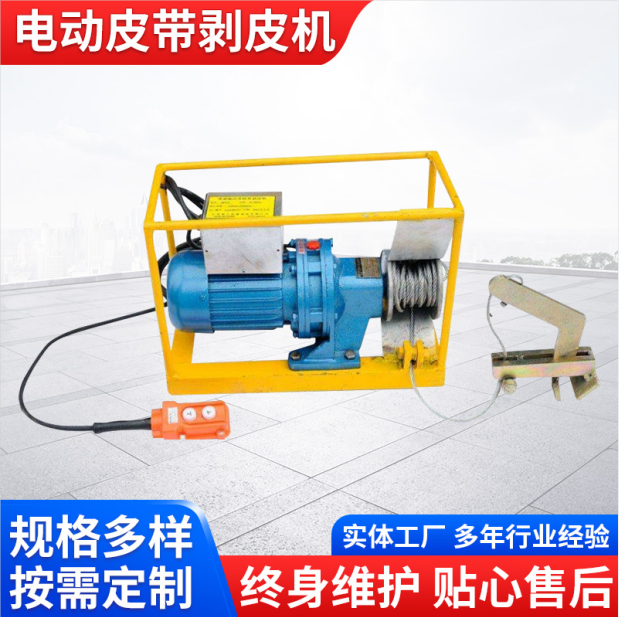

The XLP-100 electric stripping machine is composed of a handheld controller (1), motor (2), reducer (3), rope drum (4), rear fixed sleeve (5), handle (6), and robotic arm (7). The motor's output power is reduced through a meticulously designed reducer, driving the rope drum to move the robotic arm at one end in and out, completing the stripping operation.

The total length of the steel wire rope is 6 meters. During the preparation for stripping, pay attention to the distance between the stripping position and the fixed position of the stripping machine; it must not exceed 6 meters.

Before peeling with the stripping machine, use a fixed sleeve to secure the machine to a sturdy location. The stripping machine's maximum pulling force is 500 kg, so it needs to be sufficiently strong. If this is not possible on-site, reduce the width of each strip to decrease the pulling force.
