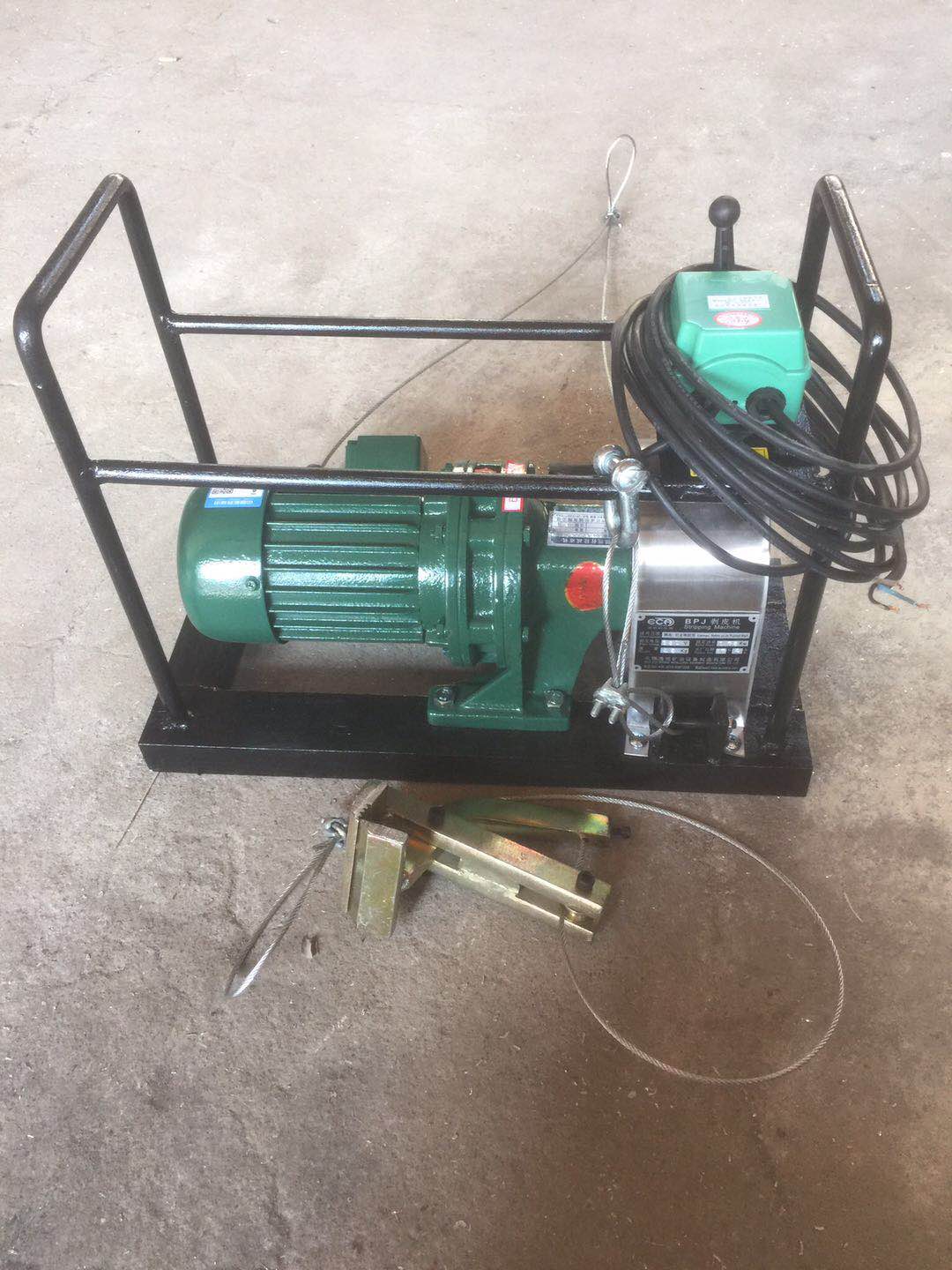

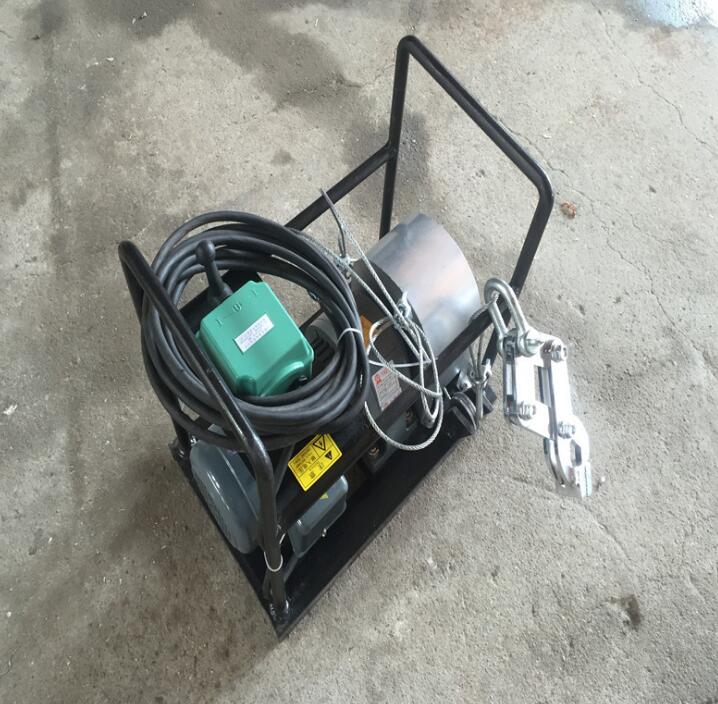

Used Steel Wire Conveyor Belt Peeling Machine BPJ-3 Electric Peeling Machine Sulfur Joint Peeling Head Machine

Separation of coverings for conveyor belts with various fabric cores and steel wire rope cores, including separation between the coverings and canvas, coverings and steel wire rope, and canvas itself.

Standard Conveyer Belt Peeling Machine Technical Specifications:

Power supply, voltage: 380V 50Hz

2. Power: 0.75 Kw, 1.1 Kw, 1.5 Kw

3. Weight: 40 Kg

3. Application Range: EP, NN, cotton duck, and various layered conveyor belts with joints, in widths ranging from 650mm to 2200mm.

Features of Standard Conveyer Belt Skinning Machine:

1. Large stripping area and fast speed, significantly reducing labor intensity and the time needed for joints.

2. Light in weight, easy to carry and transport.

3. Stable operation.

How to Use a Standard Conveyor Belt Peeling Machine:

1. Align the conveyor belt centerline using standard methods, and then cut and separate the corresponding joint area by slicing, peeling off one layer.

2. Place the conveyor belt uncoiler in the proper position and secure it with钢丝 rope.

3. Power on.

4. Clamp the separated layer with a fixture, start the motor, and use a blade to cut the剥离部分 at the appropriate location.

5. After peeling off one layer, repeat the above steps to peel off the second, third, and so on.

Cautionary Notes for Standard Conveyer Belt Peeling Machine Use:

1. Power connection must be performed by a qualified electrician.

2. Secure the剥头机 during use to prevent sliding.

3. Do not exceed the specified width during stripping.
