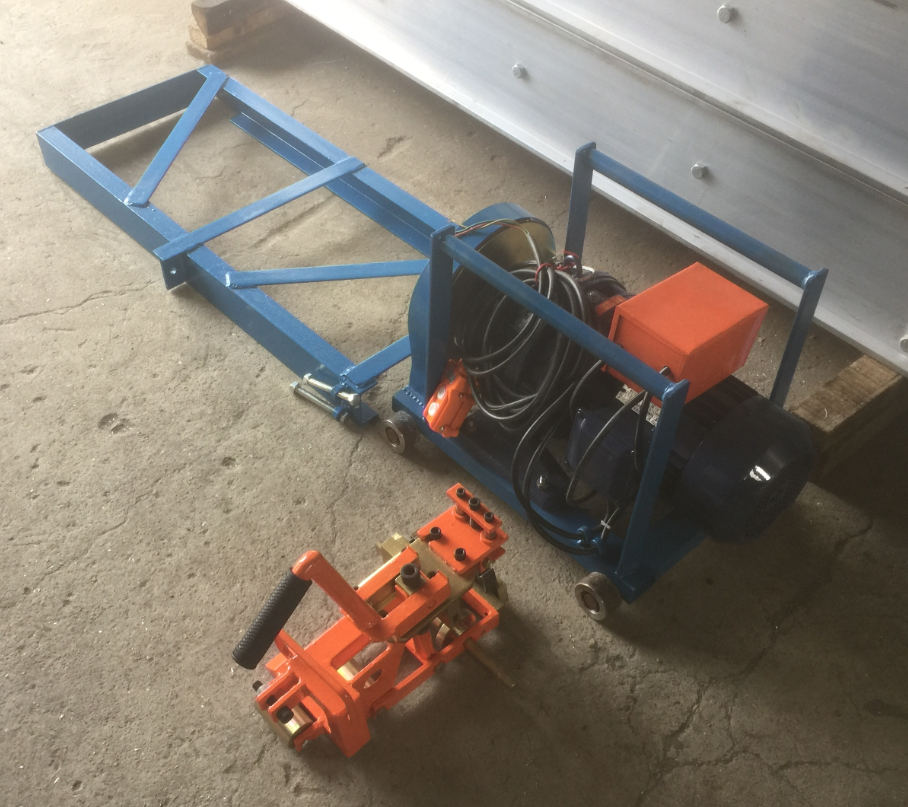

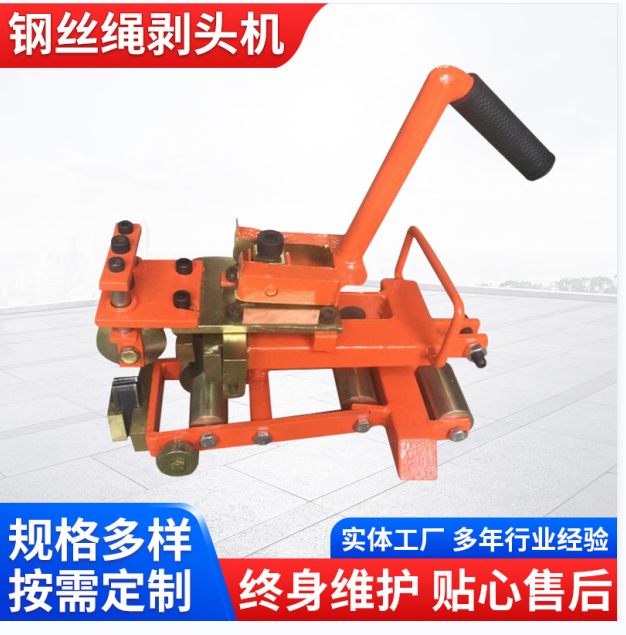

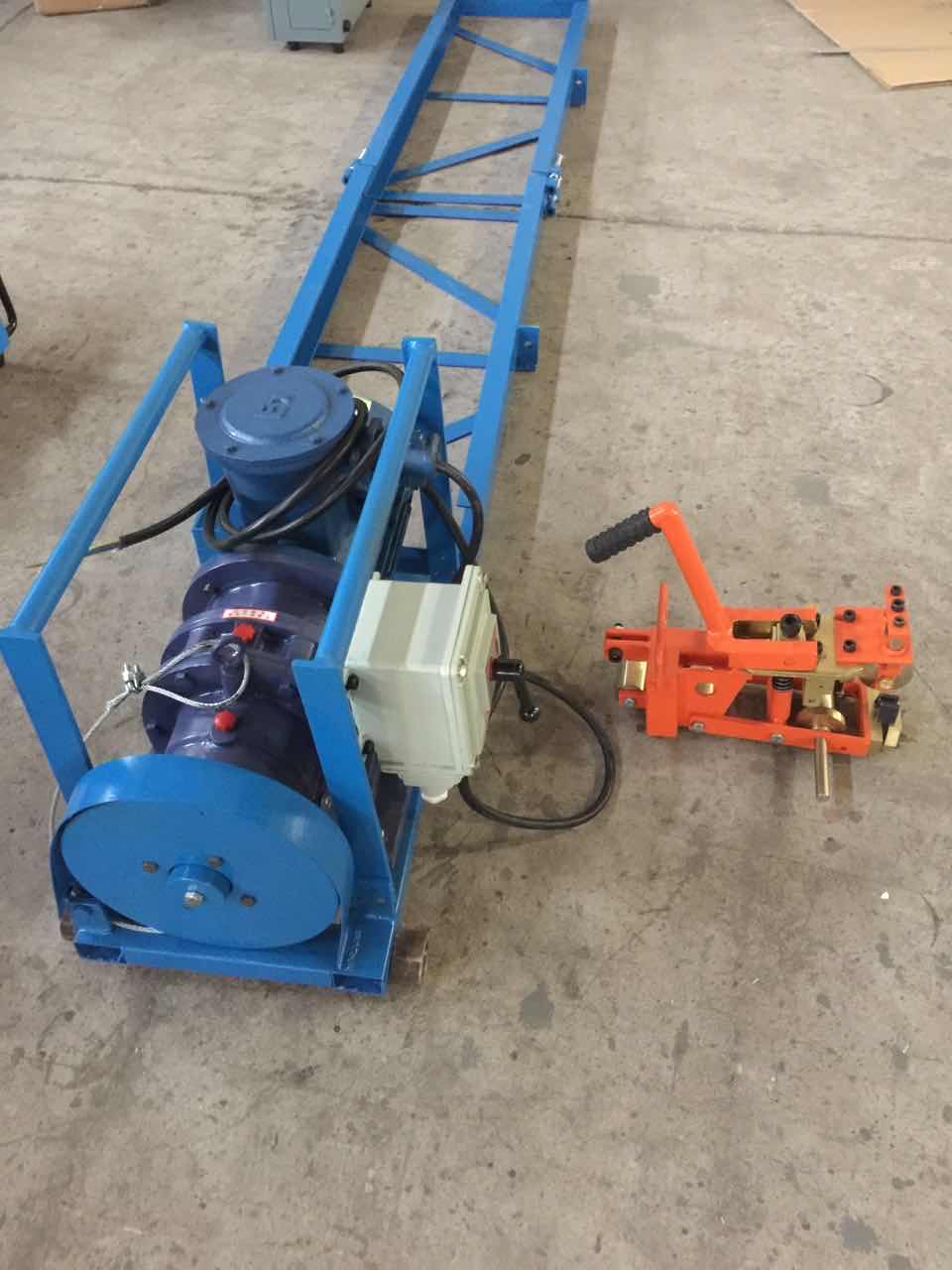

Mining Belt Wire Rope Core Stripper  Explosion-proof Electric Stripper

Separation of coverings on conveyor belts with various fabric cores and wire rope cores, including the separation between coverings and canvas, coverings and wire ropes, and canvas itself.

Wire Rope Head剥皮机Technical Specifications:

Power supply, voltage: 380V, 50Hz

2. Power: 0.75Kw, 1.1Kw, 1.5Kw, 3Kw

3. Weight: 40 kg, 45 kg, 50 kg, 55 kg

4. Application Range: Multi-layered conveyor belts with joints, including EP, NN, cotton duck canvas, etc., in widths ranging from 650mm to 2200mm.

Features of Wire Rope End Stripper:

1. Large stripping area and fast speed significantly reduce labor intensity and minimize the time required for joints.

2. Lightweight for easy carrying and handling.

3. Stable operation.

Rope Head Peeling Machine Operation Instructions:

1. Align the conveyor belt centerline as per standard procedures, and then use a knife to cut and separate the corresponding joint area, peeling off a layer.

2. Place the conveyor belt剥头机 in the proper position and secure it with steel wire rope.

3. Power on.

4. Clamp the separated layer with a fixture, start the motor, and then use a blade to score the剥离 portion at the appropriate location.

After peeling off the first layer, repeat the above steps to peel off the second, third, and so on.

Safety Precautions for Wire Rope Head剥机 Use:

1. Power connection should be performed by a qualified electrician.

2. Secure the stripping machine during use to prevent slippage.

3. Do not exceed the specified width during stripping.
