Explosion-proof Electric Belt Peeling Machine / Skinning Machine / Laminated Belt Peeling Machine

One. Belt Peeling Machine Application Range

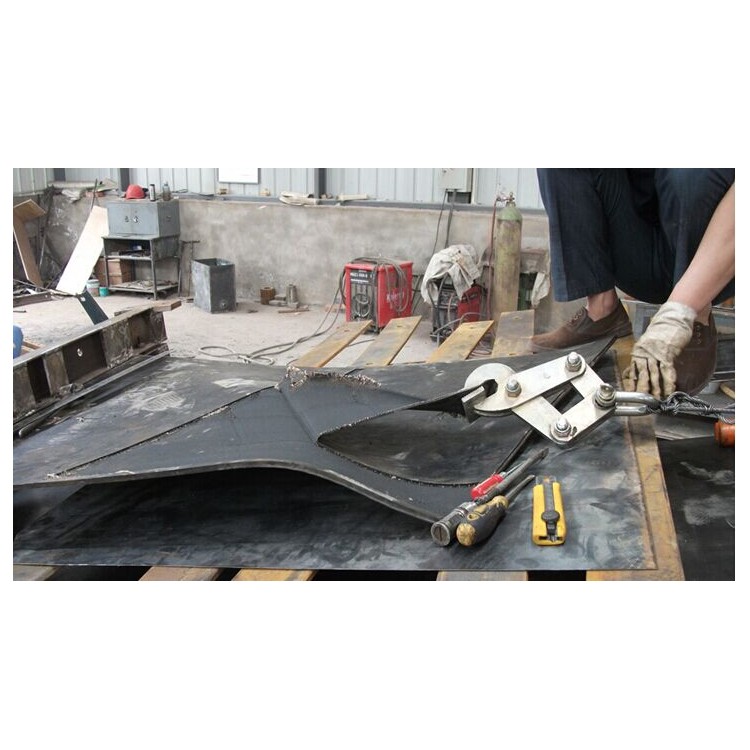

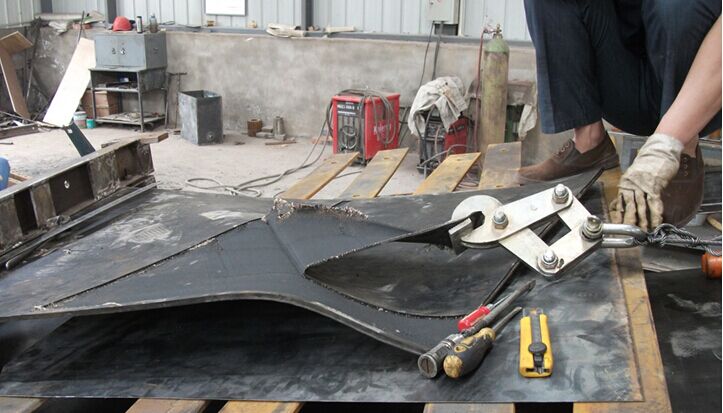

The剥头机 systems for power plants, mines, steel mills, ports, and petrochemicals are used for securing and cleaning the adhesive layer on the belt lead end during belt joint preparation. This operation can be used in various occasions and locations.

II. Features of the Belt Skinning Machine:

（1) Large stripping area and fast speed significantly reduce labor intensity and shorten the time required for connections.

（2) Lightweight for easy carrying and handling.

（3) Stable operation

3. Technical Parameters of Belt Peeling Machine:

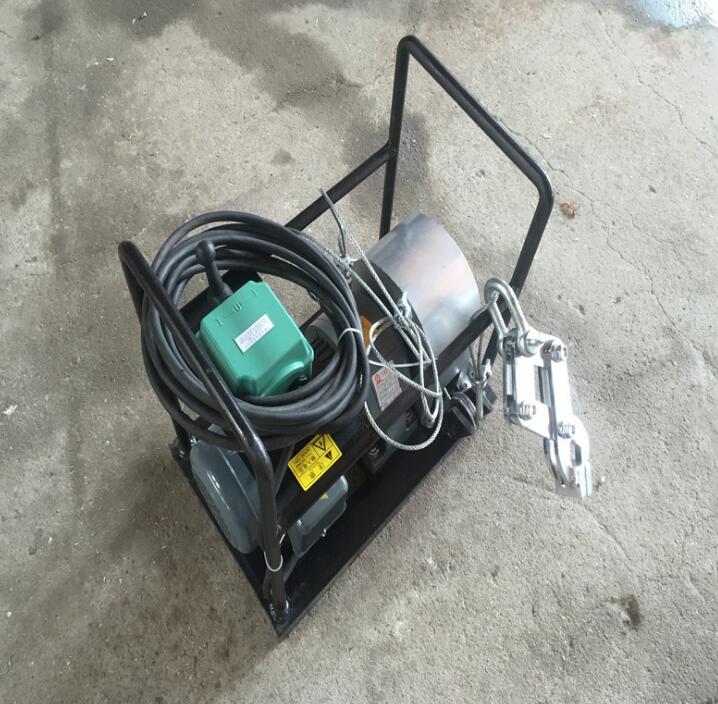

Name: Standard Conveyer Belt Peeling Machine

Model:BPJ-3

Voltage:380V  50HZ

Power:0.75KW

Weight:15kg

Line Speed:0.3m/s

Application Scope:650mm-2200mm wide conveyor belts in various widths

Four: Safety Precautions for the Use of Belt Skinning Machines

（1) Power connection must be performed by a qualified electrician.

（2) Secure the peel machine during use to prevent it from sliding.

（3) Do not exceed the specified width during stripping.
