Tape Peeling Machine, Coated Tape Stripping Machine, AY-BTJ Wire Rope Head Stripping Machine

Make Please provide the Chinese content you would like translated into American English. Please provide the Chinese content to be translated. Ming Book

I. Feature Overview:

剥层工具 for conveyor belt splicing, especially suitable for nylon and canvas belts. Nylon belts can be stripped up to 350mm wide in one go. Enhances splicing efficiency and reduces labor intensity.

 The XLP-100 electric stripping machine's advantages include using a 220V voltage, which eases electrical preparation at the joint site. Additionally, the machine weighs only 21 kg and comes with a carry handle for easy portability.

II. Composition:

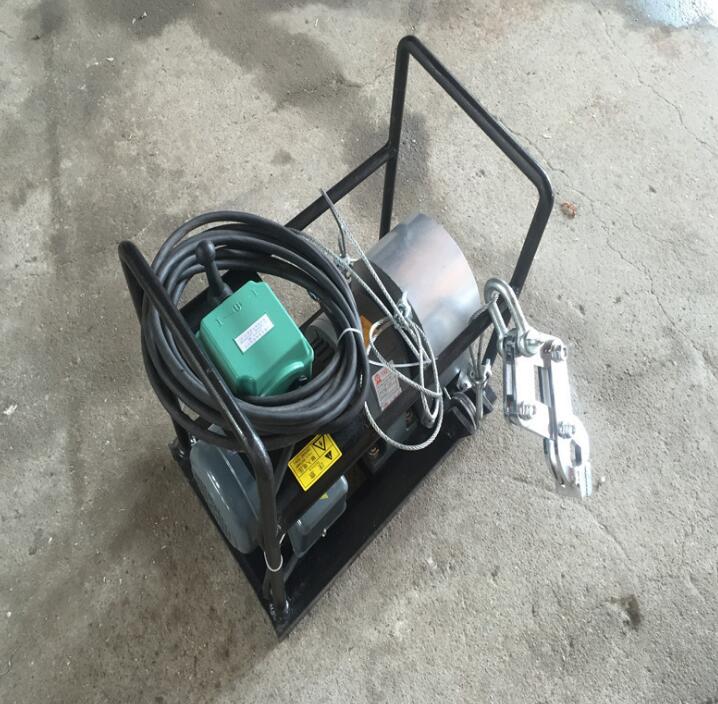

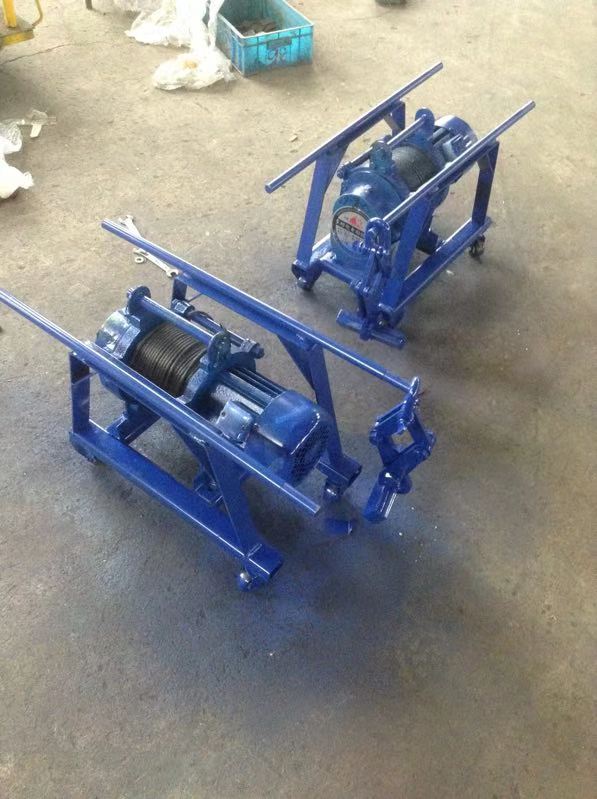

 The XLP-100 electric剥layer is composed of a handheld controller (1), motor (2), reducer (3), wire rope drum (4), rear mounting sleeve (5), handle (6), and mechanical arm (7). The motor's output power is reduced through a meticulously designed reducer, driving the wire rope drum to move the mechanical arm at one end in and out, thereby completing the剥layer task.

 The total length of the wire rope is 6 meters. During the preparation for the stripping operation, attention must be paid to the distance between the stripping position and the fixed position of the stripping machine, which should not exceed 6 meters.

Before peeling with the stripping machine, use a fixed sleeve to secure the machine to a sturdy location. The stripping machine's maximum pulling force is up to 500 kg, so it needs to be sufficiently sturdy. If this is not possible on-site, reduce the width of each stripping operation to decrease the pulling force.

 Section 3: Peeling Operations

 One person operates the handheld controller's button, one person

 Tighten the wire rope at the manipulator end until the manipulator reaches the剥皮 area.

 The end of the belt. Tensioning the wire rope when unrolling it is to prevent

 The steel wire rope is loosely coiled around the drum.

Clamp the end of the belt layer with the robotic arm and lift the arm.

 Handle, to separate the front panel from the movable panel. Place the belt layer

 Insert the end into the space between the two clamps, press down the handle to clamp the belt. Hold the button on the handheld controller to start peeling layers. The gripping force of the mechanical arm on the belt is proportional to the tension of the steel wire rope. Therefore, once the wire rope is tightened, the operator can release the handle, allowing the mechanical arm to move freely.

 This剥层机can peel off the layer relative to the nylon belt in one go.350mm (in case of fracture along both sides of the peeling line). The width of the robot arm is 250mm.
