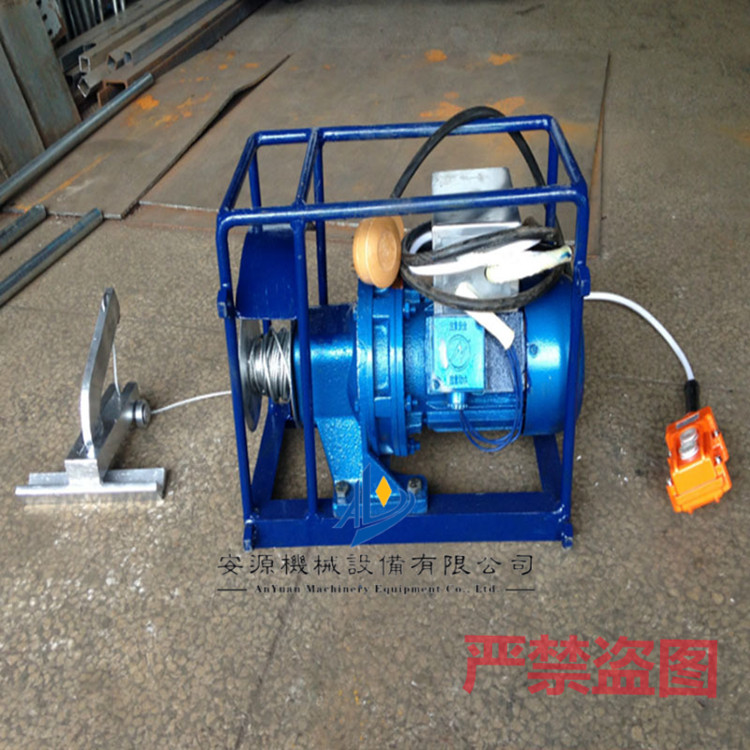

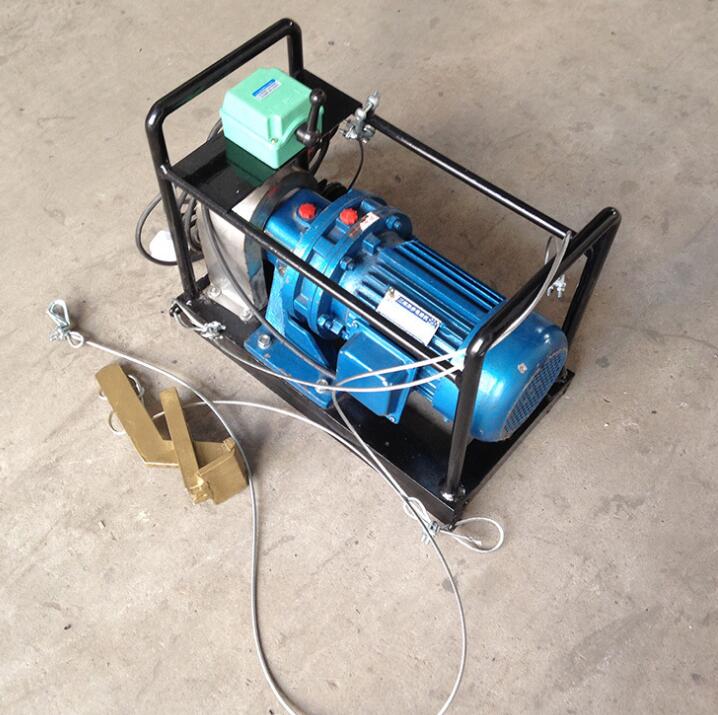

Conveyor Belt Peeler, AY-BTJ Electric Stripper, Mining Steel Wire Rope Core Belt Peeler

Product Description

Usage:

Power plants, mining, steel mills, ports, petrochemical facilitiesAYThe BPJ series of peelers is designed for securing and cleaning the adhesive layer on the leading edge of the conveyor belt during the preparation of belt joints, which can be used in various situations and locations.

Large stripping area and high speed can significantly reduce labor intensity and shorten the time required for joints.

2. Light in weight, easy to carry and transport.

3. Stable operation.

Motor Power: 0.75 kW

Line Speed: 0.3 m/s

3. Strip Width: 200mm (conveyor belt and steel cord conveyor belt) 400mm (standard belt)

Usage Instructions:

1. Align the conveyor belt centrally using standard methods, and then cut and separate a layer at the corresponding joint with a knife.

2. Place the conveyor belt stripping machine in the appropriate location and secure it with wire ropes.

3. Power on.

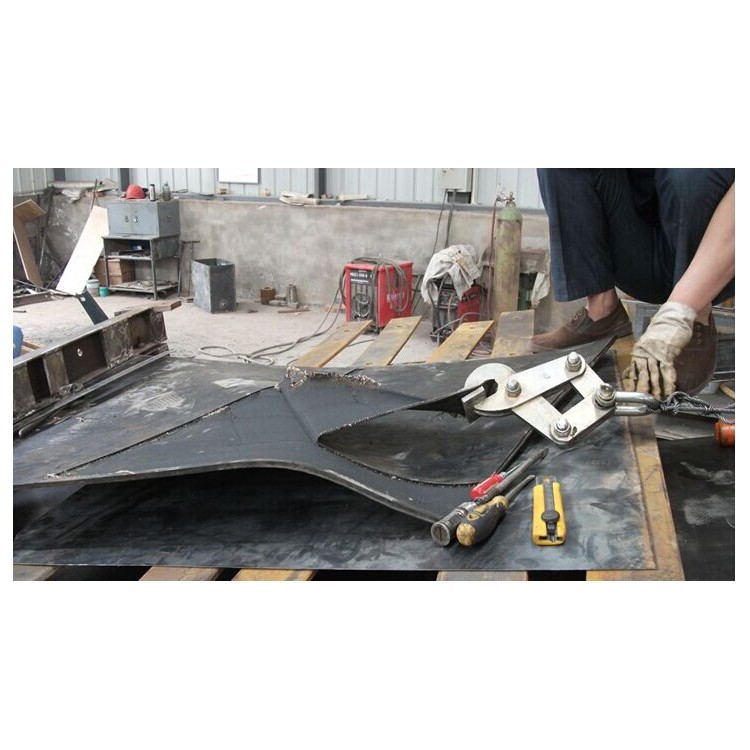

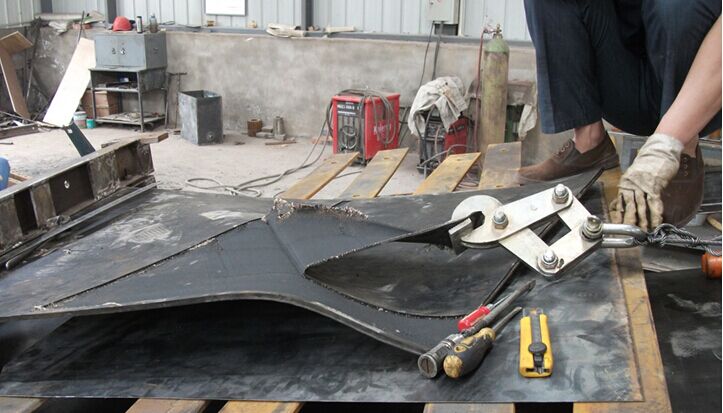

4. Clamp the separated layer with a fixture, start the motor, and use a blade to score the peeled section at the appropriate location.

After peeling off the first layer, repeat the above steps to peel off the second, third layers, etc.

Cautionary Notes:

1. Power connection should be performed by a qualified electrician.

2. Secure the peeler during use to prevent sliding.

Do not exceed the specified width during stripping.
