ZX Type Steel Wire Stripper, Peel Machine BPJ-4, paired with vulcanizing machine for stripping heads

Please provide the Chinese content to be translated. Please provide the Chinese content to be translated into American English. Please provide the Chinese content to be translated. Ming Book

One, Feature Overview:

    Used for stripping layers during conveyor belt joints, particularly suitable for nylon belt and canvas belt stripping. The nylon belt can strip layers up to a width of350mm. Enhance joint efficiency and reduce labor intensity.

      The XLP-100 electric stripping machine's advantages include its use of 220V voltage, which reduces electrical preparation at the joint site. Additionally, the machine weighs only 21 kg and comes with a handle for easy portability.

Two,  Composition:

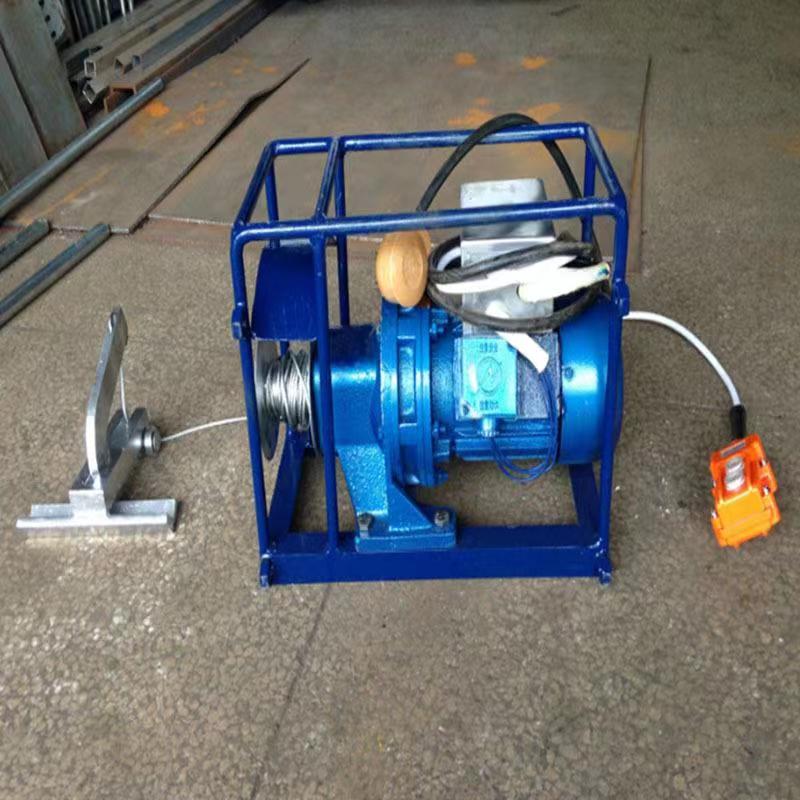

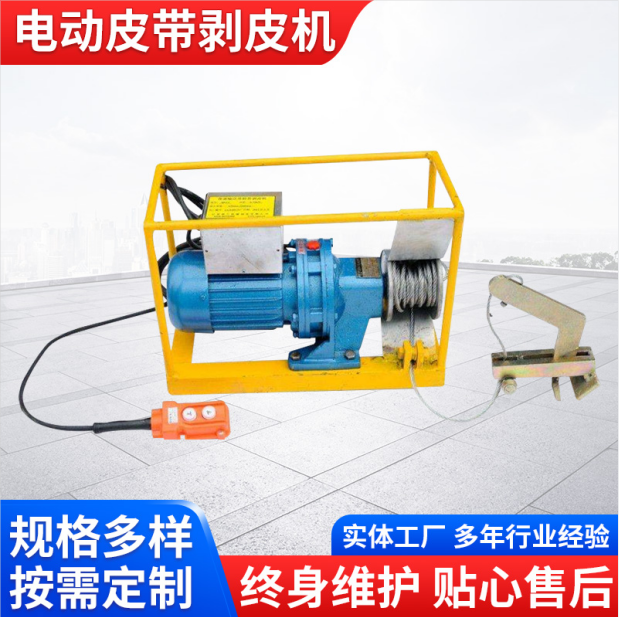

        The XLP-100 electric stripping machine is composed of a handheld controller (1), motor (2), reducer (3), wire rope drum (4), rear fixed sleeve (5), handle (6), and mechanical arm (7). The motor outputs power, which is then reduced through a meticulously designed reducer to drive the wire rope drum. This movement drives the mechanical arm at one end of the wire rope in and out, completing the stripping operation.

    Total wire rope length is:6 meters, when preparing for stripping operations, pay attention to the distance between the stripping position and the fixed position of the stripping machine; it must not exceed 6 meters.

       Before peeling with the peeler, use a fixed sleeve to secure the peeler to a sturdy location. The peeler's...   High tensile strength achievable500 kg, so it needs to be sufficiently sturdy. If it's not achievable on-site, reduce the width of each layer剥层剥除 to decrease the tension.

III.  剥层 operation

One person operates the handheld controller Button, one person

Tighten the wire rope at the robot end until the robot reaches the stripped part.

The belt end. Tautening the steel wire rope while unwinding it is to prevent

 The wire rope is loosely coiled around the drum.

 Clamp the end of the belt layer with the robotic arm and lift the arm.

Handle, separating the front panel from the movable panel. Place the belt layer

 Insert the end into the space between the two boards, press down the handle to clamp the belt. Hold the button on the handheld controller to start peeling layers. The gripping force of the mechanical arm on the belt is proportional to the tension of the steel wire rope. Therefore, once the wire rope is tightened, the hand can release the handle, allowing the mechanical arm to move freely.。
