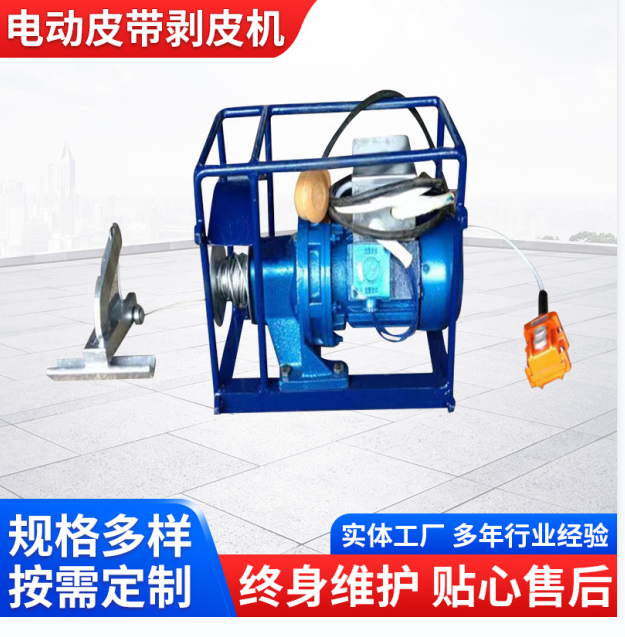

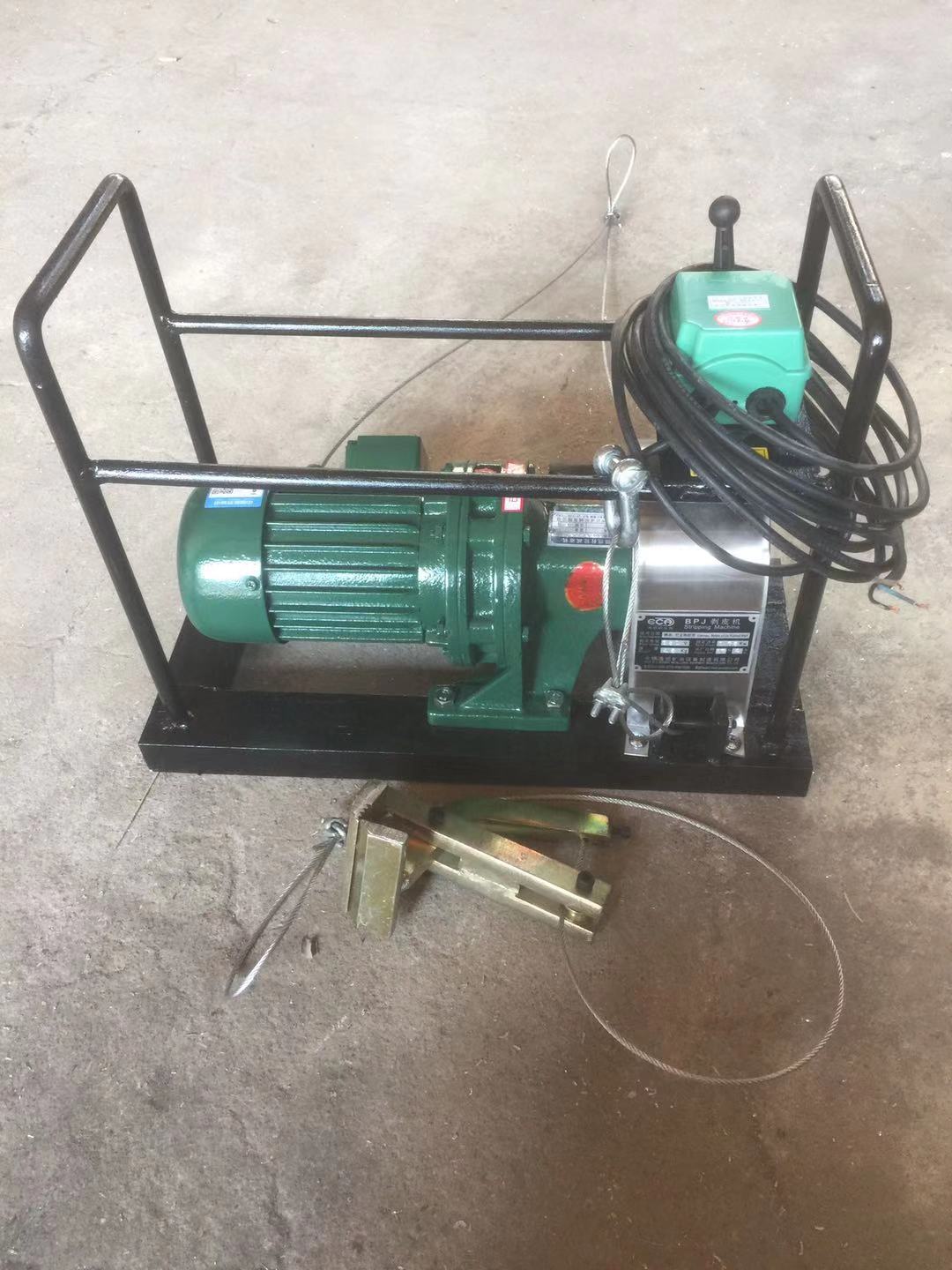

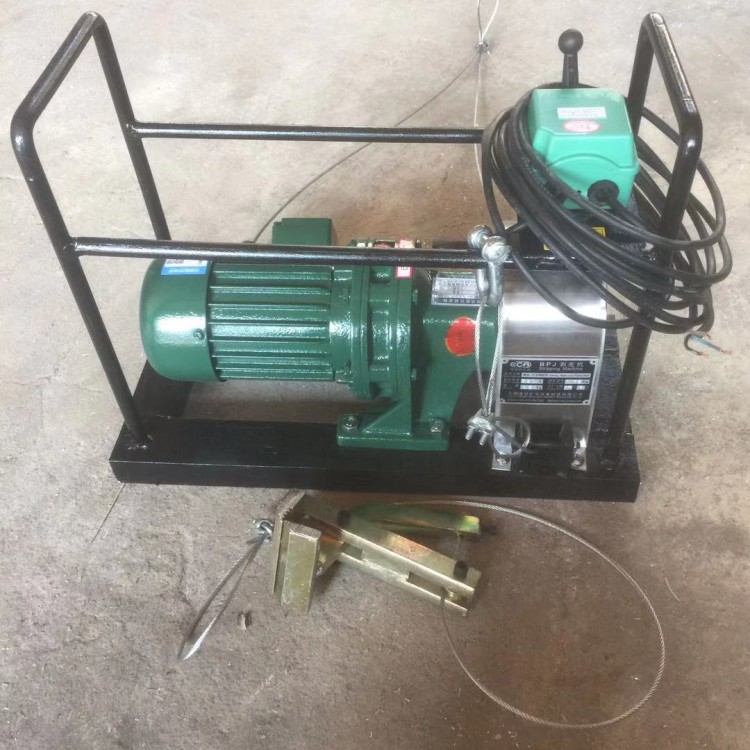

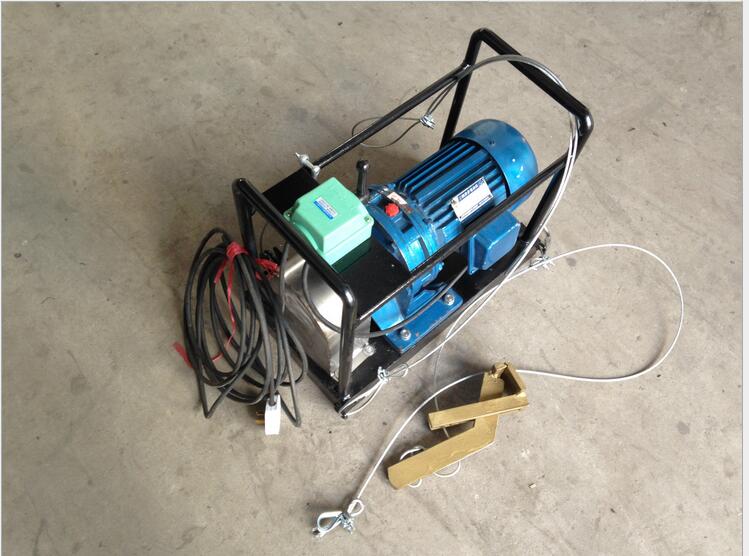

Conveyor Belt Electric Peelers, Manual Peelers, Steel Wire Rope Core Stripper
Purpose:
Separation of covering rubber on conveyor belts with various fabric cores, steel wire rope cores, between covering rubber and canvas, covering rubber and steel wire rope, and canvas to canvas.
Product Advantages:High efficiency, low labor intensity, and lightweight, suitable for use in various environments.
Technical Specifications:
Power Supply: Voltage 380V, 50Hz
2. Power: 3 Kw
Weight: 96 kg
4. Applicable Range: EP, NN, cotton duck, and various layered strips with joints.
Instructions for Use:
1. Start peeling a section of approximately 15 cm wide steel wire from the end of the wire rope stripping tape. Remove the rubber sheath on both sides and secure the tape.
2. Install the upper and lower blades, aligning the lower blade with the center of the steel wire rope. Adjust the tension of the pressure roller bolts, press down the handle, and connect the drag frame to the motor through the steel wire rope for movement. This drives the blades to detach the rubber from the steel wire rope, ending the stripping process. The LCD digital display instrument is intuitive, of high quality, and durable. It features digital and indicator light displays, pre-set vulcanization time and temperature, and the entire vulcanization process is fully automated. When the alarm light illuminates, the work automatically completes. 2. The fully automatic LCD digital temperature control box is elegantly designed, compact, and utilizes advanced vertical double-layer waterproof technology. The integrated dust and waterproof cover allows for operation in harsh external conditions such as sandstorms, heavy rain, and intense sunlight.
3. Overload, short-circuit, and leakage protection equipped automatic leakage circuit breakers, ensuring personal safety 。
4. Due to integrated wiring and automated operation procedures, along with unified plugs and sockets, this electrical control box is compatible with all vulcanizing machines and repair machines in our factory. Standard machines do not possess this feature.
