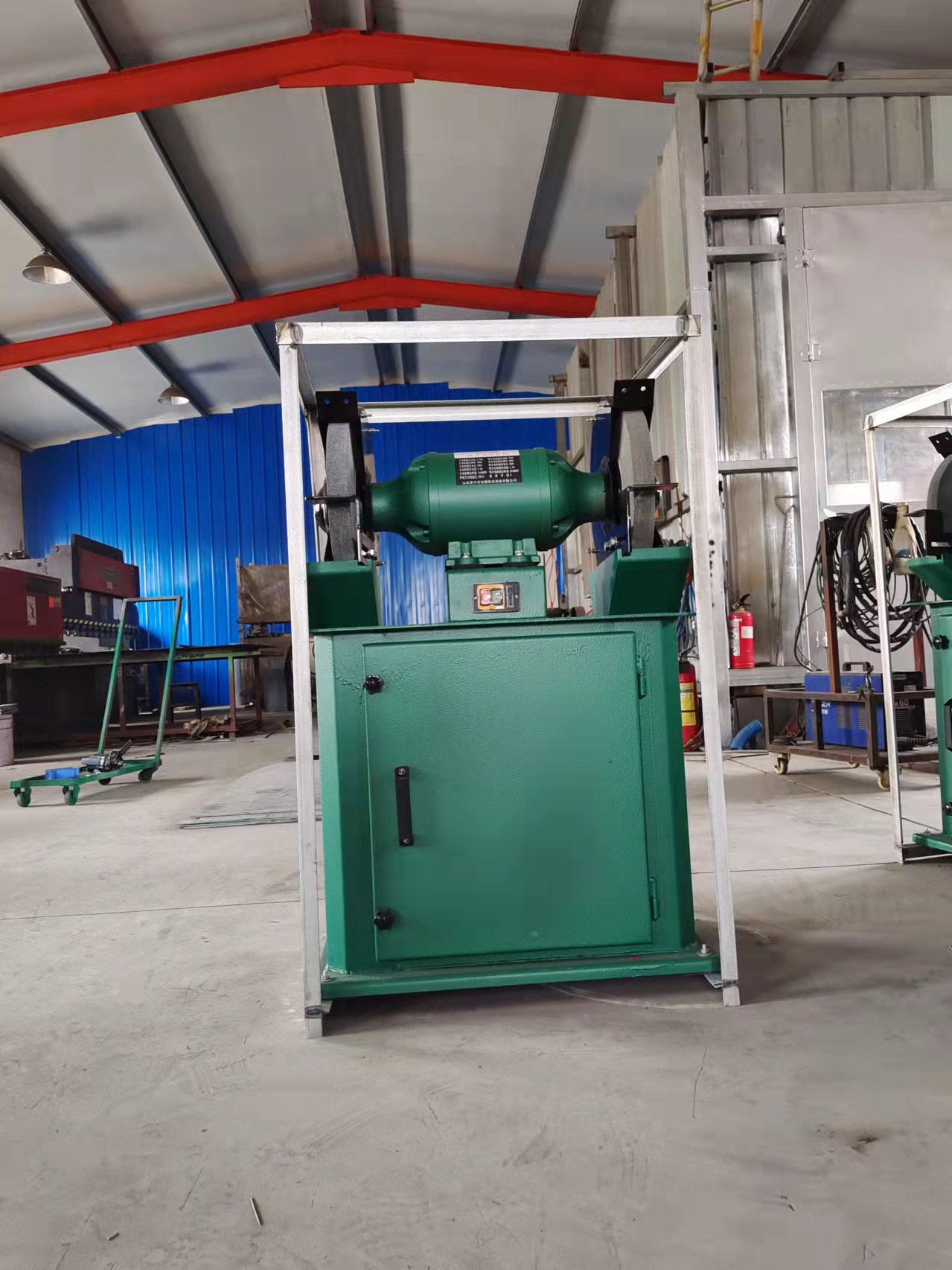

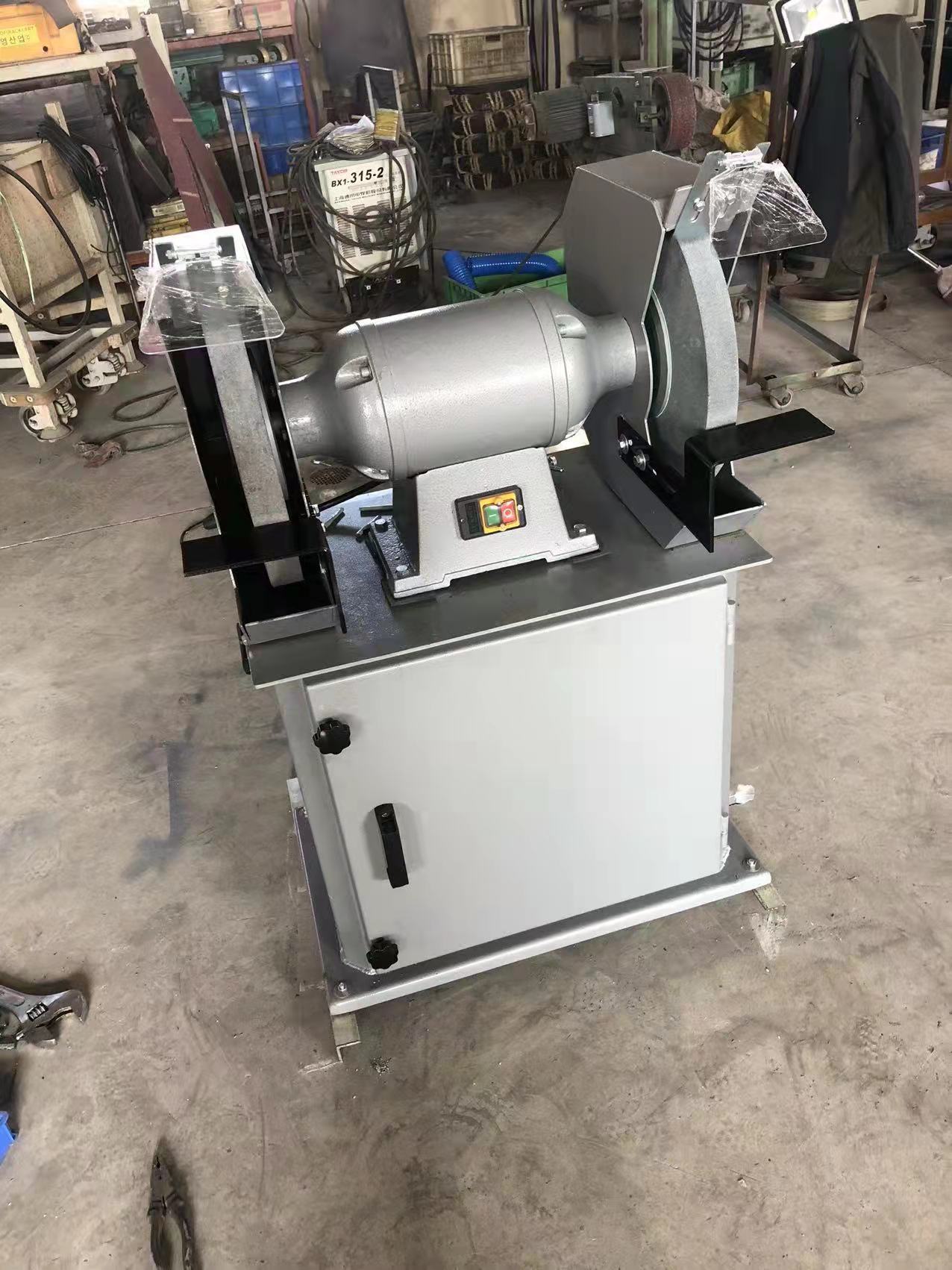

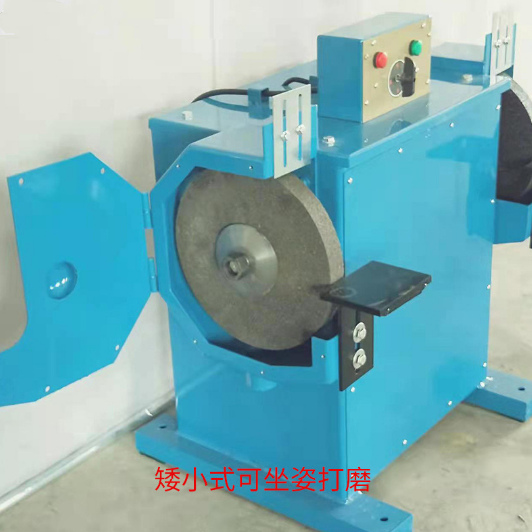

Double-Head Floor-mounted Sanding Wheel Machine, M3330 Dust-Extraction Sanding Wheel Machine, Dust-Free Sanding Wheel Machine for Workshop

 M30The type of floor-standing grinding wheel machine boasts aesthetic appearance, simple structure, ease of use, and excellent performance, making it a commonly used equipment in general industrial and mining enterprises.

 1.Portable grinding wheel machines are mainly supplied to general industrial and mining enterprises for the grinding of small parts, deburring, and cleaning castings.,Also suitable for sharpening ordinary cutting tools.

 2.Floor-standing grinding wheels are not resistant to chemical corrosion and should not be used outdoors.

Two.Use and Maintenance

1. Grinding wheel machine before usePlease provide the Chinese content to be translated.The Megger over 500 volts measures the insulation resistance, which is not less than 0.5 Megaohms.

2. Before use, the parts of the grinding wheel machine should be thoroughly inspected for any damage or cracks due to transportation, and for any loose fasteners. If any are found, they should be tightened.  Ensure even tension. Pay special attention to the grinding wheel for any cracks. Gently tap with a wooden mallet; a clear, crisp sound indicates it's safe to use.

3. Before use, the grinding wheel machine should be manually rotated to check for smooth operation and listen for any rubbing noises.

4. The direction of rotation for the grinding wheel machine and the fan should match the direction indicator.

5. Do not allow the workpiece to collide with the grinding wheel during operation.Gradually apply pressure to prevent the abrasive wheel from being impacted, thereby avoiding explosion and accidental incidents.

6. The sanding machine protective cover is strictly prohibited from being removed except for the replacement of the abrasive wheel and for maintenance and disassembly.                                                                      。

7. Two grinding wheels on a medium grit wheel machine have a difference in their wear diameter.No larger than20%。

8. Replace with a new grinding wheel. Ensure the wheel is balanced during installation, and the soft pad between the wheel and the mounting plate should be properly fitted. Do not overtighten the nut to prevent the wheel from cracking.

9. The lubricant in the bearings should be replaced every six months, typically.

10. The M3030, M3035, and M3040 vertical grinding wheels are equipped with a worktable. When using the worktable, ensure that the support surface is at the same height as the motor's shaft centerline. After adjusting the worktable height,                  Secure firmly.
