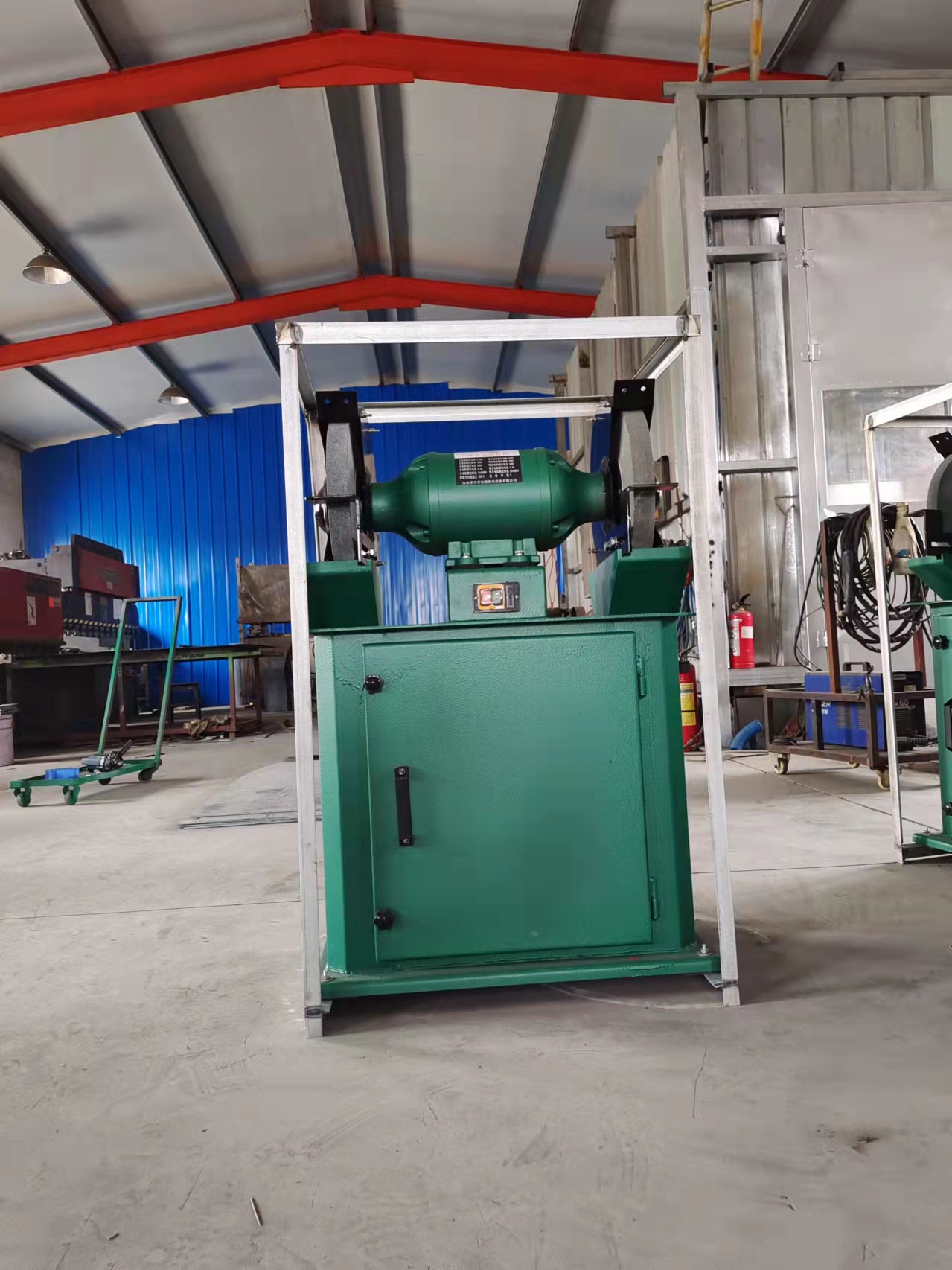

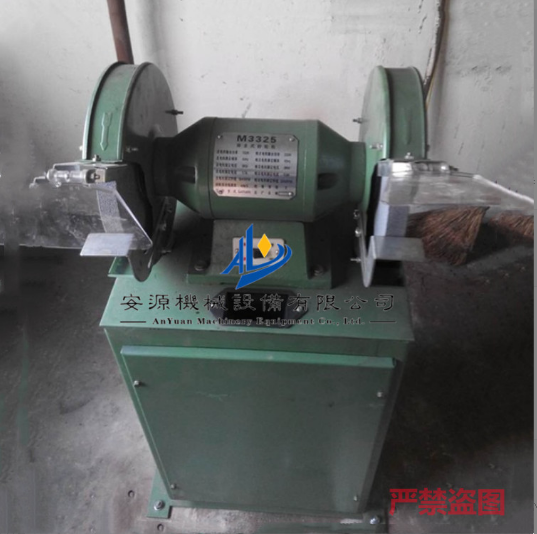

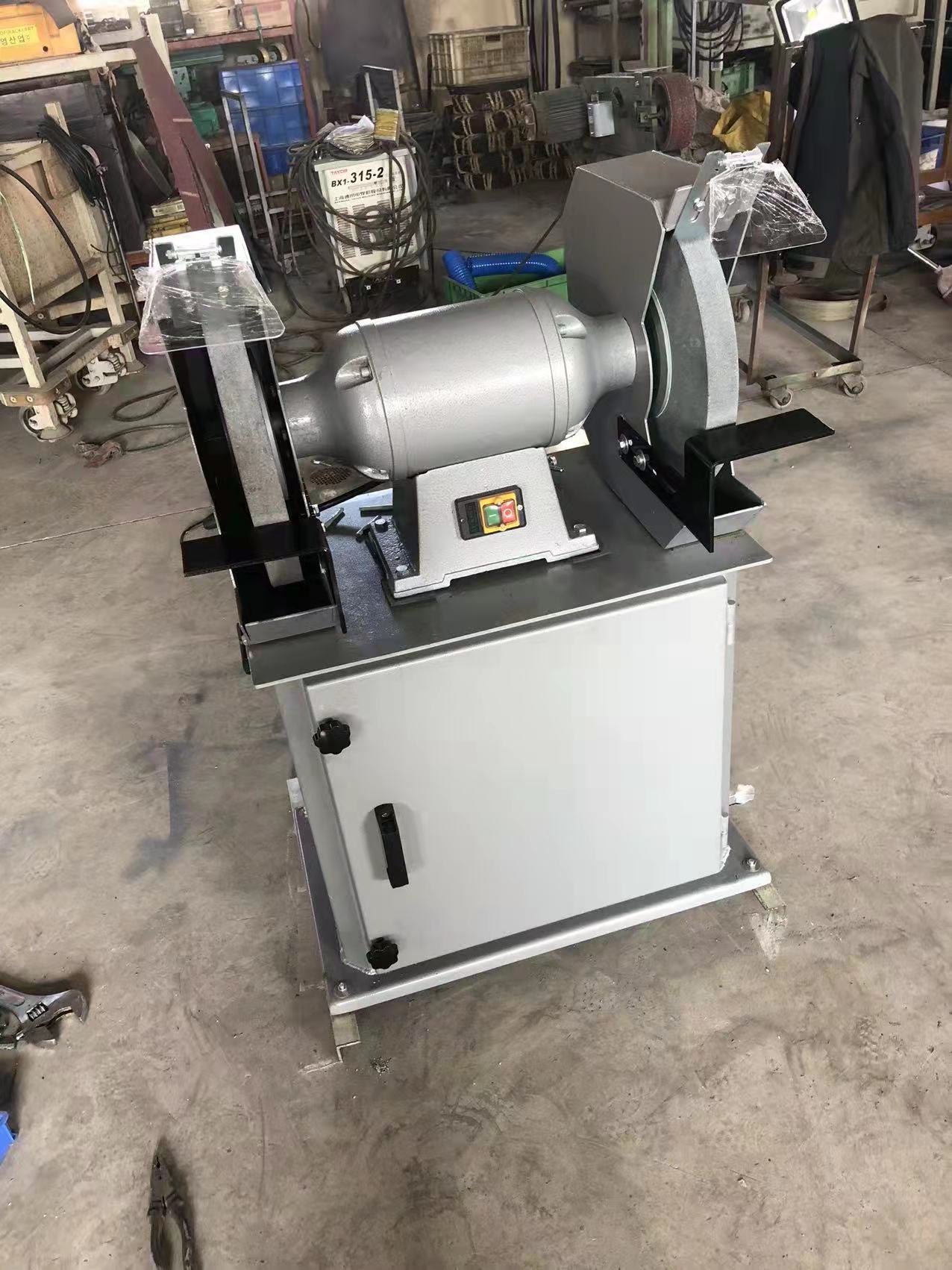

Environmental Sanding Machine, Dust Extracting Sanding Machine (Filter Plate Type) M3325 Dust Extraction Sanding Machine
Grinding, deburring, and cleaning. Dust-removing grinding wheels are mainly used in industrial and mining enterprises for sharpening cutting tools and can also be used for grinding, deburring, and cleaning of ordinary small parts.
2 Low environmental requirements.Dust-extraction type grinding wheel machineCan be used at altitudes not exceeding1,000 meters, surrounding air relative humidity not exceeding 90% High environmental temperature not exceeding40℃ humid tropical region.
High dust removal efficiency The machine utilizes bag dust removal technology, achieving an efficiency of over 98% and ensuring dust concentration is less than 10 mg/m³. Complies with the Ministry of Labor and Human Resources and the Ministry of Environmental Health of the country. Regulations for superior vacuuming performance Labor environment Operators are free from dust exposure.
4 For indoor use only. Dust-extraction grinding wheels are not resistant to chemical corrosion and should not be used outdoors.
Section II. Technical Specifications of the Grinding Wheel Machine
New model | MC3015 | MC3020 | MC3025 | MC3030 | MC3035 | MC3040 |
Power | 0.25 | 0.5 | 0.75 | 1.5 | 1.75 | 2.2 |
Frequency | 50 | 50 | 50 | 50 | 50 | 50 |
Current | 1.7 | 1.24 | 1.7 | 3.4 | 3.95 | 4.9 |
RPM | 2850 | 2850 | 2850 | 1420 | 1440 | 1430 |
Efficiency | 67 | 71 | 75 | 79 | 80 | 81 |
Section 3: Instructions for the Use of the Grinding Wheel Machine
1. The grinding wheel machine should be measured with a megohmmeter of 500V or higher to check its insulation resistance, which should not be less than 0.5 megohms.
2. The grinding wheel machine should be thoroughly inspected before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the grinding wheel. Gently tap it with a wooden mallet; a clear, crisp sound indicates the item is in good condition.
