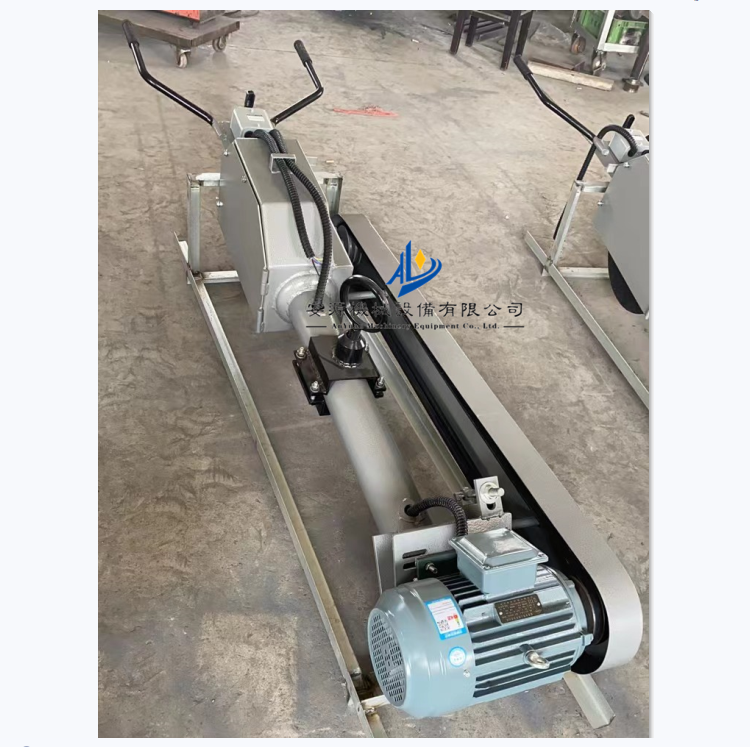

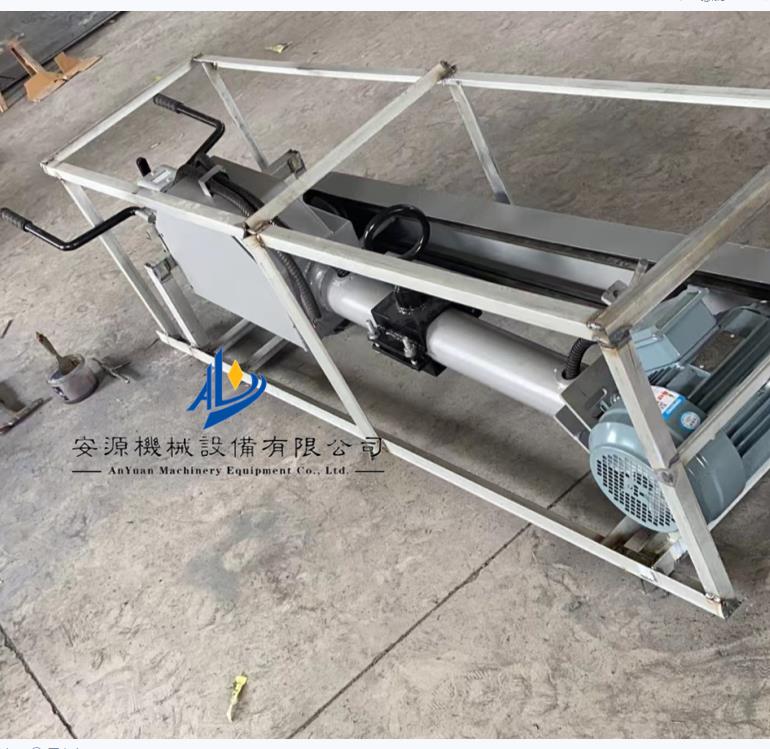

Polished casting steel ingots for casting partsGrinding Wheel Machine Hanging type grinding wheel machine Hanging-type grinding wheel machineM3140

Suspension type grinding wheel machine, also known as overhead grinding wheel machine.Primarily used for grinding stainless steel, titanium ingots, alloy steel, special steel, steel ingots, and various metal cracks, inclusion, burrs, etc.

Suspended Grinding Wheel Machine  Operation Procedures

1. Check if the hanging item is secure before use.

2. First, observe if the motor is reversing. Normally, the grinding sparks should be ejected towards the motor; otherwise, immediately shut down and check if the circuit is functioning properly.

3. After the grinding wheel machine is started, it should be allowed to rotate smoothly before grinding. If the machine is bouncing significantly, stop and adjust immediately.

Do not apply excessive force during the grinding process.

5. Select a grinding wheel that matches the spindle speed of the grinding machine according to the instructions provided.

6. New grinding wheels must have a factory certification or inspection and test mark. Do not use the wheel if any defects such as quality, hardness, grain size, or cracks are found before installation.

7. When installing the grinding wheel, the clearance between the inner hole of the wheel and the main shaft should not be too tight. It should be adjusted according to the technical requirements for loose fit, generally controlled between 0.05 and 0.10 millimeters.
