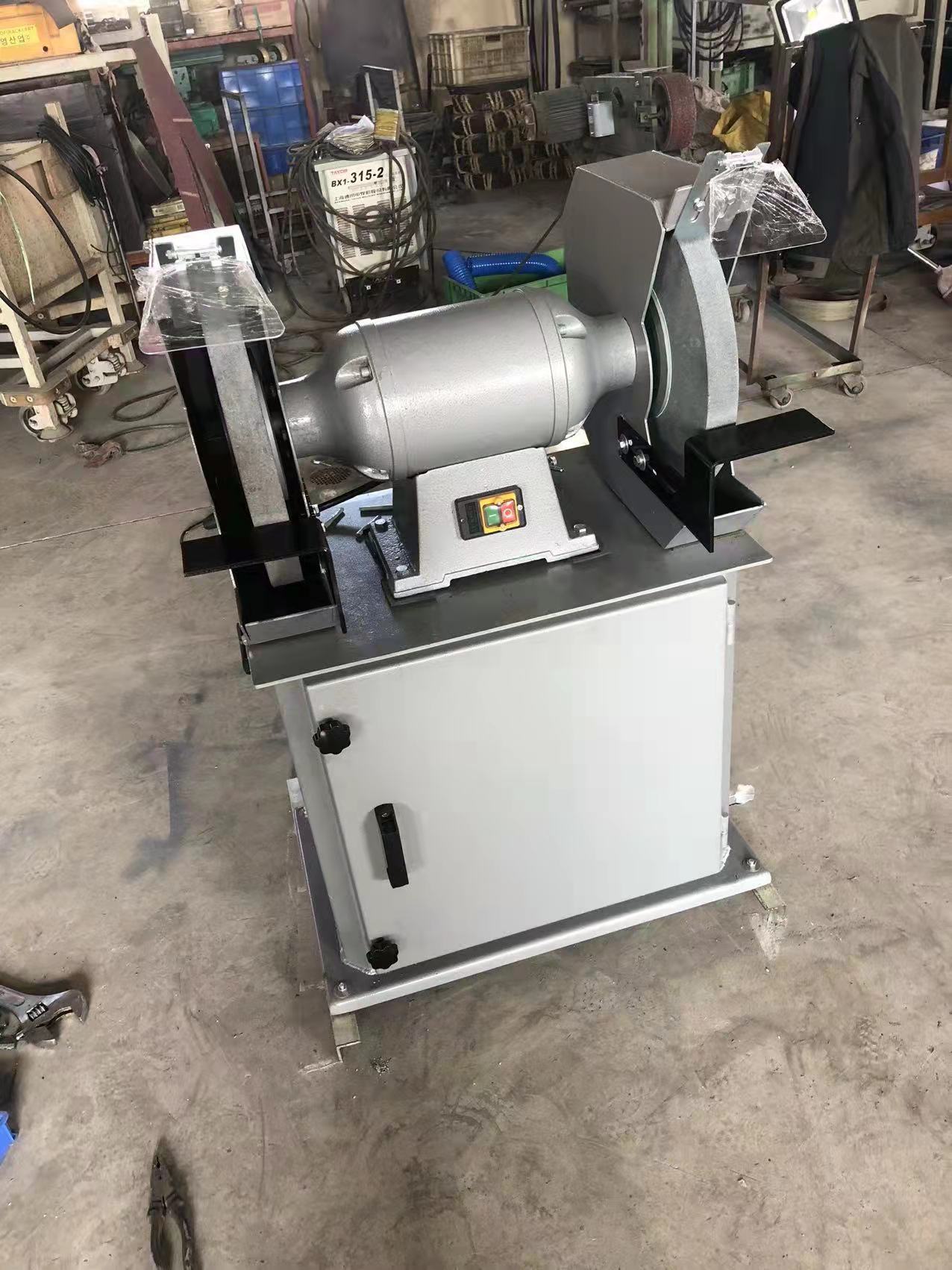

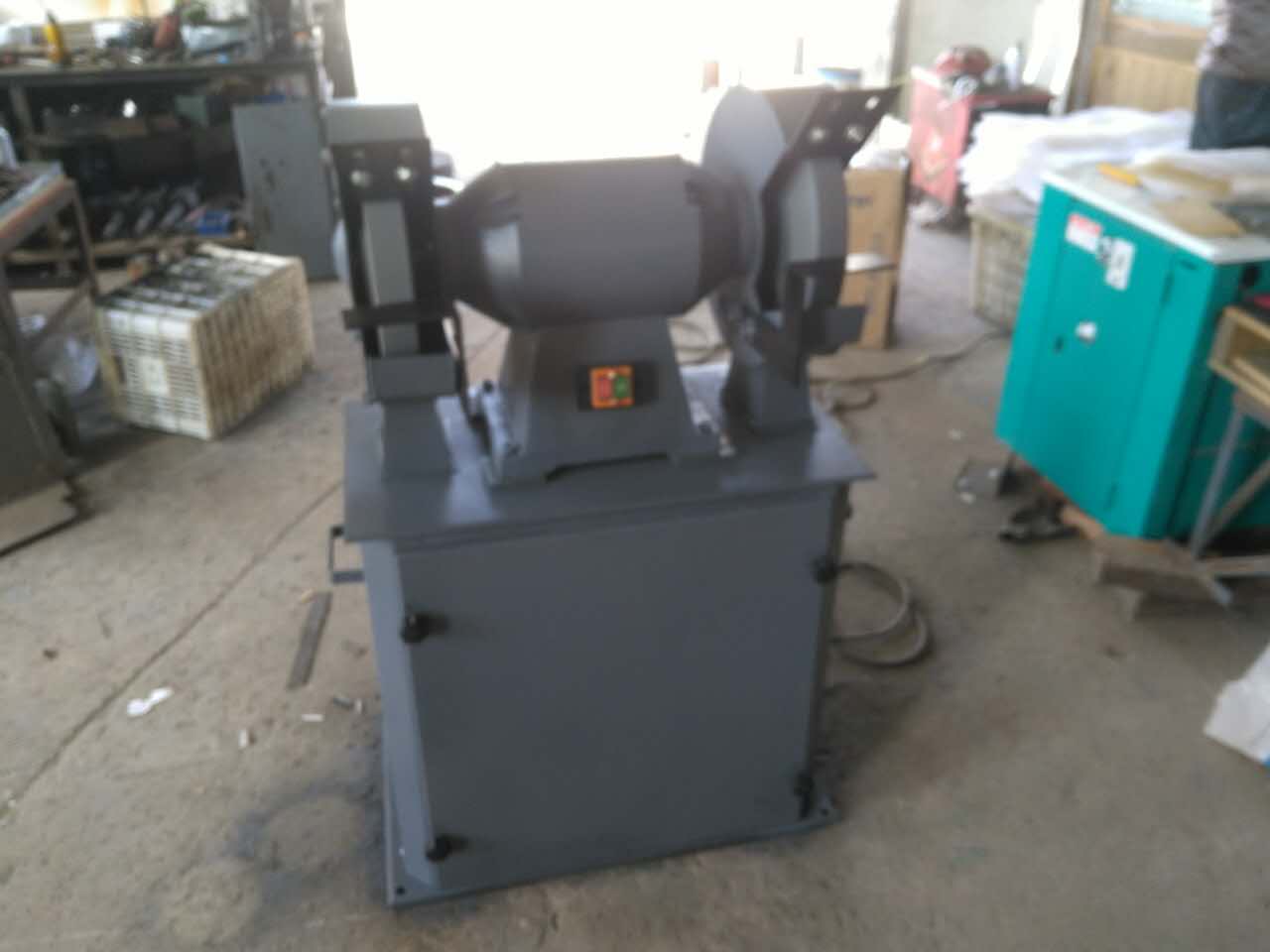

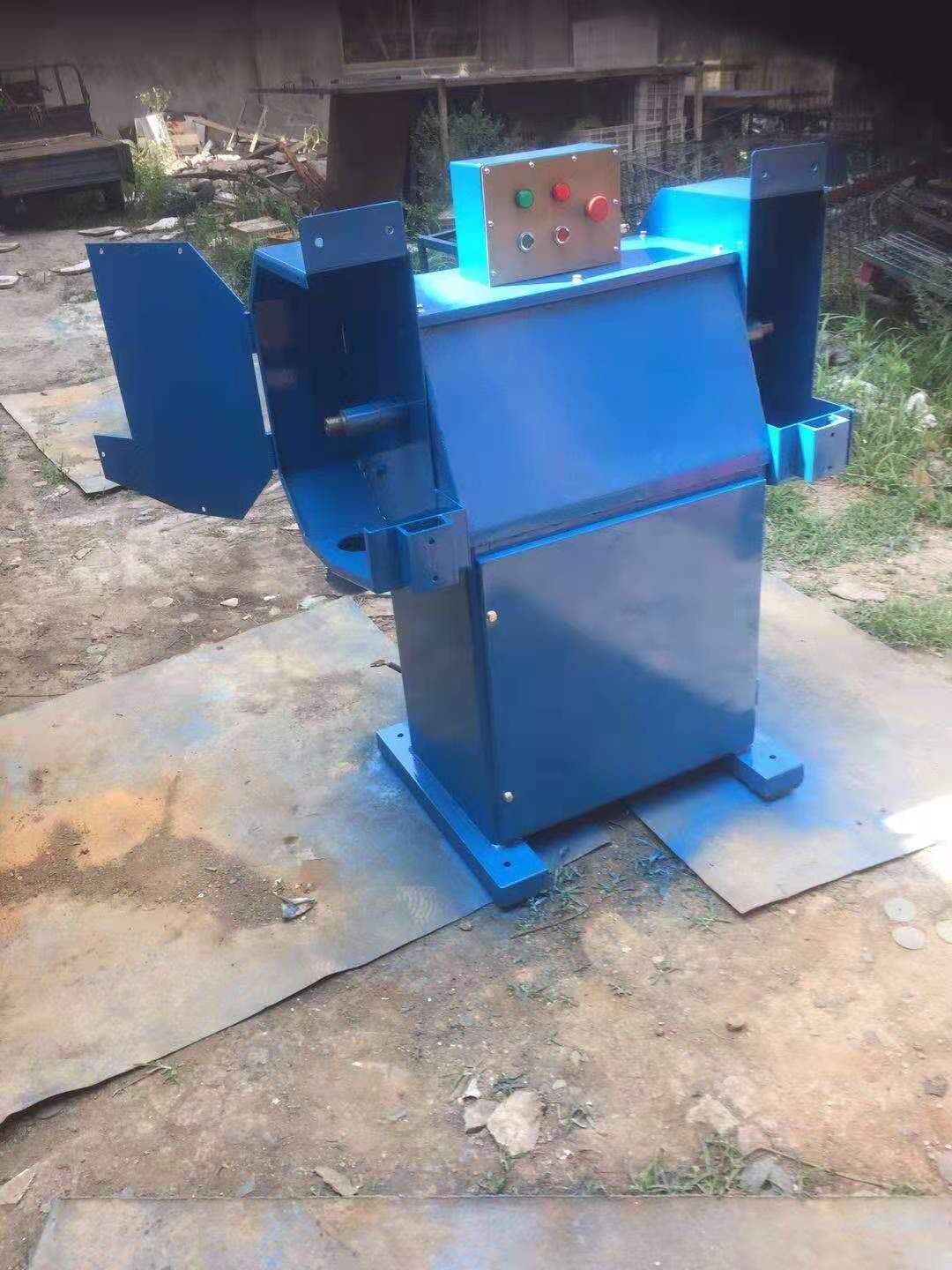

M3325 Dust Extraction Sanding Machine  Eco-friendly Sanding Machine  Dust-Free Workshop Sanding Machine

Dust Extraction Type Grinding Wheel Machine, also known as Vacuum Grinding Wheel Machine, is a safety and environmentally friendly type of grinding wheel machine, a type of grinding wheel machine.Available in two types: bag-type and filter plate-type..

The M33 series dust-extraction grinding wheel machine is an improved model based on the original MC30 series dust-extraction grinding wheel machine, a product recognized for its excellence.

The dust-removing grinding wheel machine is mainly used by general industrial and mining enterprises for sharpening cutting tools and can also grind small parts, deburr, and clean up.

2. Dust-removing grinding wheels can be used in humid tropical regions with an altitude not exceeding 1,000 meters, relative humidity not exceeding 90%, and ambient temperature not exceeding +40℃.

3. This unit employs bag dust removal technology, achieving an efficiency of over 98%, with dust concentration below 10 mg/m³. It complies with the safety regulations of the National Ministry of Labor and Human Resources and the Ministry of Environmental Health, offers excellent dust collection, improves working conditions, and protects operators from dust exposure.

4. The dust collector grinding wheel is not resistant to chemical corrosion and must not be used outdoors.

Applicable to metal cutting and non-metal cutting industries,Features include grinding flat surfaces, concave and convex surfaces, wheel grinding, edge removal, burr elimination, gating and draft. This product is suitable for enterprises with high requirements for working environments, with dust extraction effects in98%Above.

Parameter Model:

    Model:   M3340 16"

 Grinding Wheel Size: Φ400×40×Φ127mm

   Electricity  Pressure: 380V

 Input Power: 3000 W

 No-load speed:1420min-1

   Hairy  Weight:  168kg

 Packaging Dimensions:820×650×1140mm Wooden Crate
