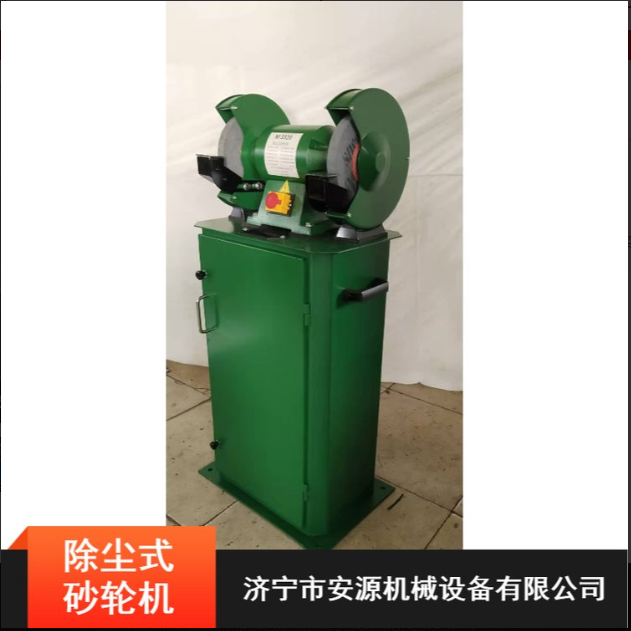

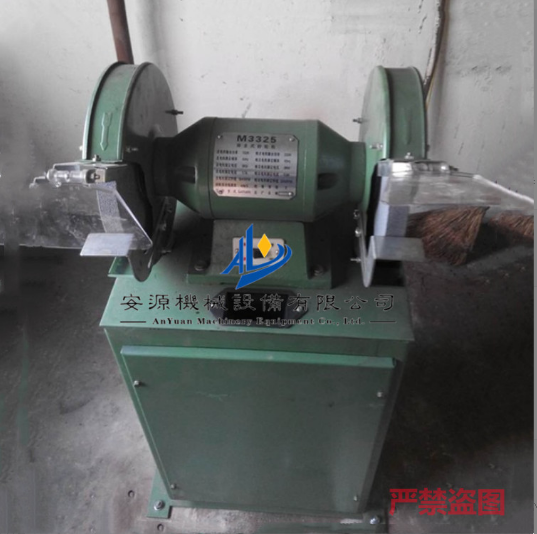

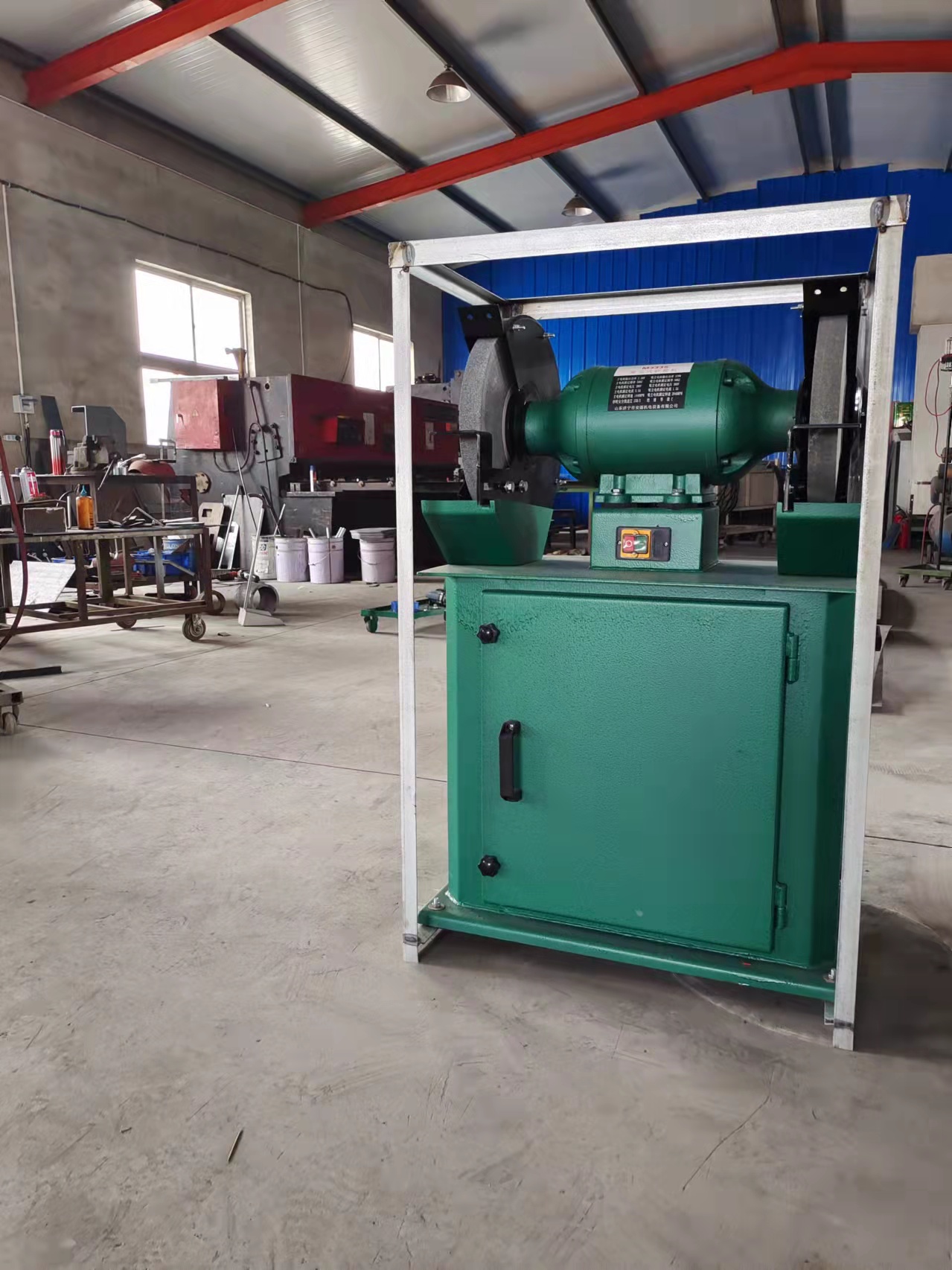

Dust Extraction Sanding Machine MC3030 Floor-Type Sanding Machine Workshop Vacuum Sanding Machine

1. Grinding, deburring, and cleaning. Dust-removing grinding wheels are primarily used in industrial and mining enterprises for sharpening cutting tools, and can also be used for grinding, deburring, and cleaning of small general parts.

2 Low environmental requirements.Dust-extraction type grinding wheel machineCan be used at altitudes not exceeding1,000 meters, surrounding air relative humidity not exceeding 90%.High environmental temperature not exceeding40°C humid tropical region.High dust removal efficiency                                                                      The machine utilizes bag dust removal technology, achieving an efficiency of over 98% and ensuring dust concentration is less than 10 mg/m³. Complies with the Ministry of Labor and Human Resources and the Ministry of Environmental Health of the country.                                                                      Regulations for excellent vacuuming performance                              The working environment shields the operator from dust exposure.

4 For indoor use only. Dust collector grinding wheels are not resistant to chemical corrosion and should not be used outdoors.

Section 2: Technical Specifications of the Grinding Wheel Machine

Section 3: Instructions for Use of the Grinding Wheel Machine

1. The grinding wheel machine should be measured with a megohmmeter of 500 volts or more to check its insulation resistance, which should not be less than 0.5 megohms.

2. Thoroughly inspect the grinding wheel before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the grinding wheel; gently tap it with a wooden mallet, and a clear, crisp sound indicates the item is in good condition.

3.Dust Removal Grinding Wheel MachineBefore use, turn the shaft extension by hand to check for smooth and quick movement, and listen carefully for any rubbing sounds.

4. The direction of rotation for the grinding wheel machine and the fan should match the direction indicator.

5. Do not allow the workpiece to collide with the grinding wheel during operation.                  Gradually apply pressure to prevent the grinding wheel from being impacted, thereby avoiding explosion and accidental incidents.

6. Grinding Wheel MachineProtective cover, replacement of grinding wheelIn addition to disassembly for maintenance, disassembly is strictly prohibited under normal circumstances to ensure preservation.                                                                      。

7. Two grinding wheels on a medium-grit wheel machine have a difference in their wear diameter.            No larger than20%。

8. While in use, the grinding wheel machine should always produce normal sounds. If screeching, humming, or other abnormal noises occur, the machine should be stopped immediately to check the cause of the noise. Continue use only after the issue is addressed and eliminated.

9. Use fabric bags for dust collection on grinding wheels. As the accumulated dust in the bags increases, it affects the air intake of the fan. Therefore, it is necessary to regularly open the front door, remove the dust bag, and empty the dust inside.
