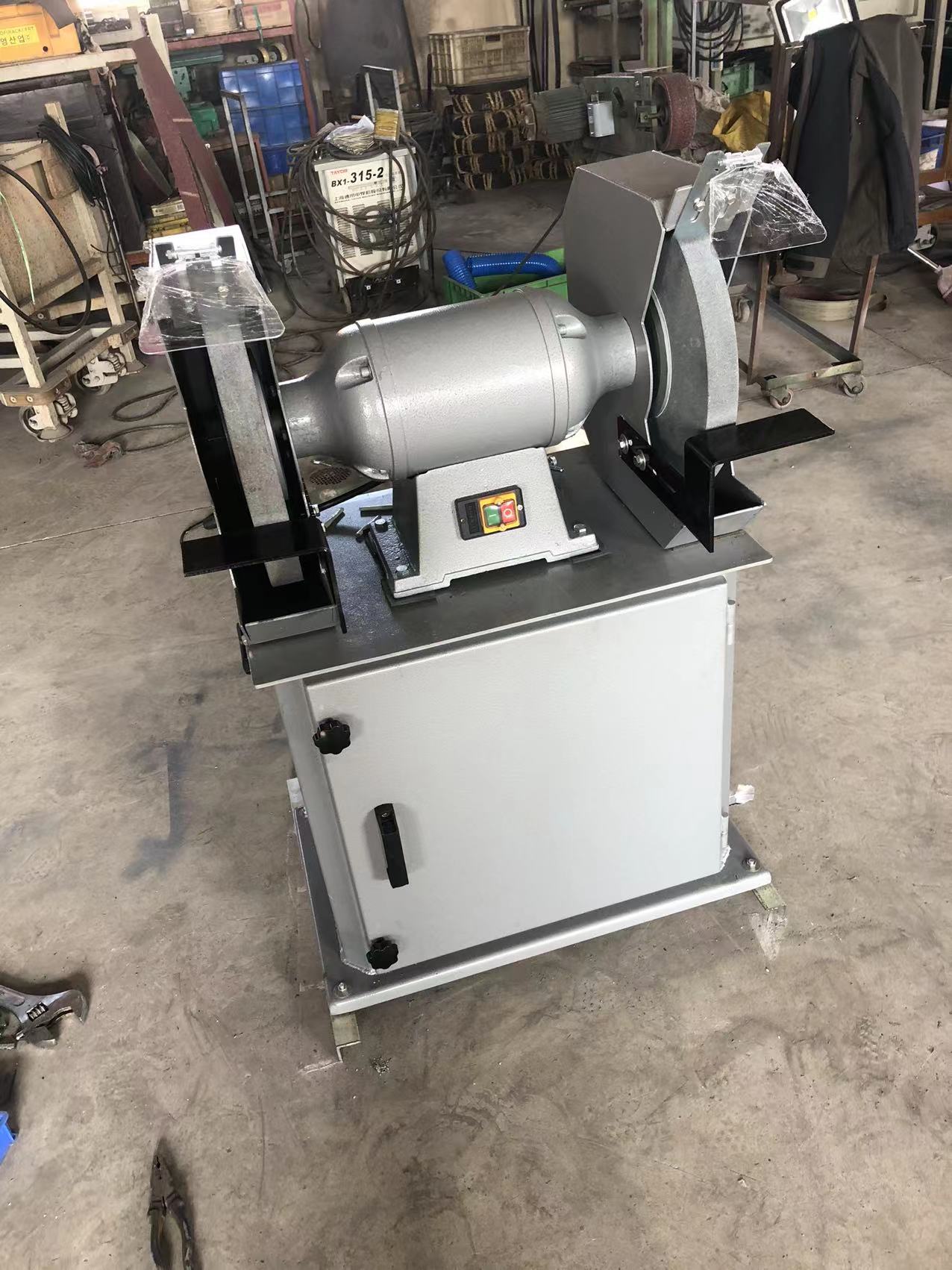

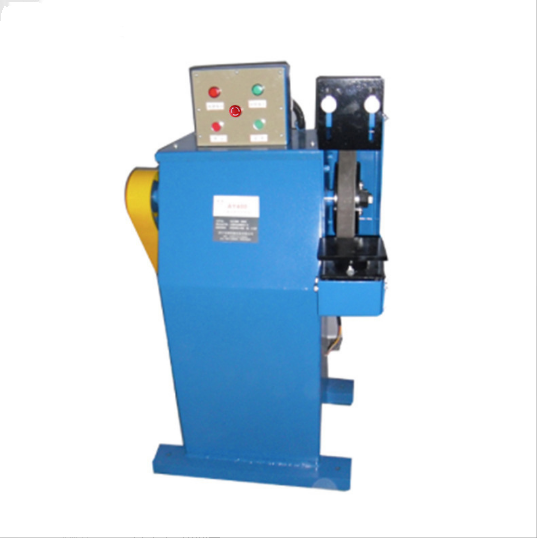

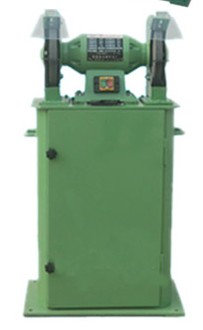

Workshop Dust Extracting Grinding Wheel Machine (M3325) Dust Removal Grinding Wheel Machine Belt Drive Grinding Wheel Machine

1. Grinding, deburring, and cleaning. Dust-removing grinding wheels are primarily used in industrial and mining enterprises for sharpening cutting tools and can also be used for grinding, deburring, and cleaning of small general-purpose parts.

2 Low environmental requirements.Dust Extraction Sanding MachineCan be used at altitudes not exceeding1,000 meters, with relative humidity of the surrounding air not exceeding 90% and surrounding environmental temperature not exceeding 40℃.

High dust removal rate and safety. This machine employs bag dust removal technology, achieving a dust removal efficiency of over 98% with dust concentration less than 10 mg/m³. It complies with the safety regulations of the Ministry of Labor and Human Resources and the Ministry of Environmental Protection, offering excellent dust collection performance and improving the working environment, thus protecting operators from dust exposure.

For indoor use only. Dust-extraction sanding machines are not resistant to chemical corrosion and must not be used outdoors.

Section II. Technical Specifications of the Grinding Wheel Machine

Section 3: Instruction for the Use of an Angle Grinder

The abrasive wheel machine must be measured with a megohmmeter of over 500 volts before use, and its insulation resistance must be no less than 0.5 megohms.

2. Thoroughly inspect the grinding wheel before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the grinding wheel. Gently tap it with a wooden mallet; a clear, crisp sound indicates the item is in good condition.

3.Dust Removal Grinding Wheel MachineBefore use, turn the shaft extension by hand to check for smooth and quick movement, and listen carefully for any rubbing sounds.

4. The direction of rotation for the grinding wheel machine and the fan should match the direction indicator.

5. When operating an abrasive wheel machine, do not collide the workpiece with the abrasive wheel. Apply pressure gradually to prevent shock to the wheel, avoid explosion, and prevent accidents.

6. Grinding Wheel MachineProtective guard, replacement of grinding wheel除了拆解和维修外，平时严格禁止拆卸以确保安全。

7. Two grinding wheels on the medium grit machine should have a maximum difference in wear diameter of no more than 20%.

8. During operation, the grinding wheel machine should always produce normal sounds. If screeching, humming, or other abnormal noises occur, the machine should be stopped immediately to check the cause of the noise, and it can only be used again after the issue is resolved.

9. Use fabric bag dust collection on the grinding wheel machine. As more accumulated dust builds up in the fabric bags, it affects the wind volume of the fan. Therefore, it is necessary to regularly open the front door, remove the dust collection bag, and pour out the dust inside.
