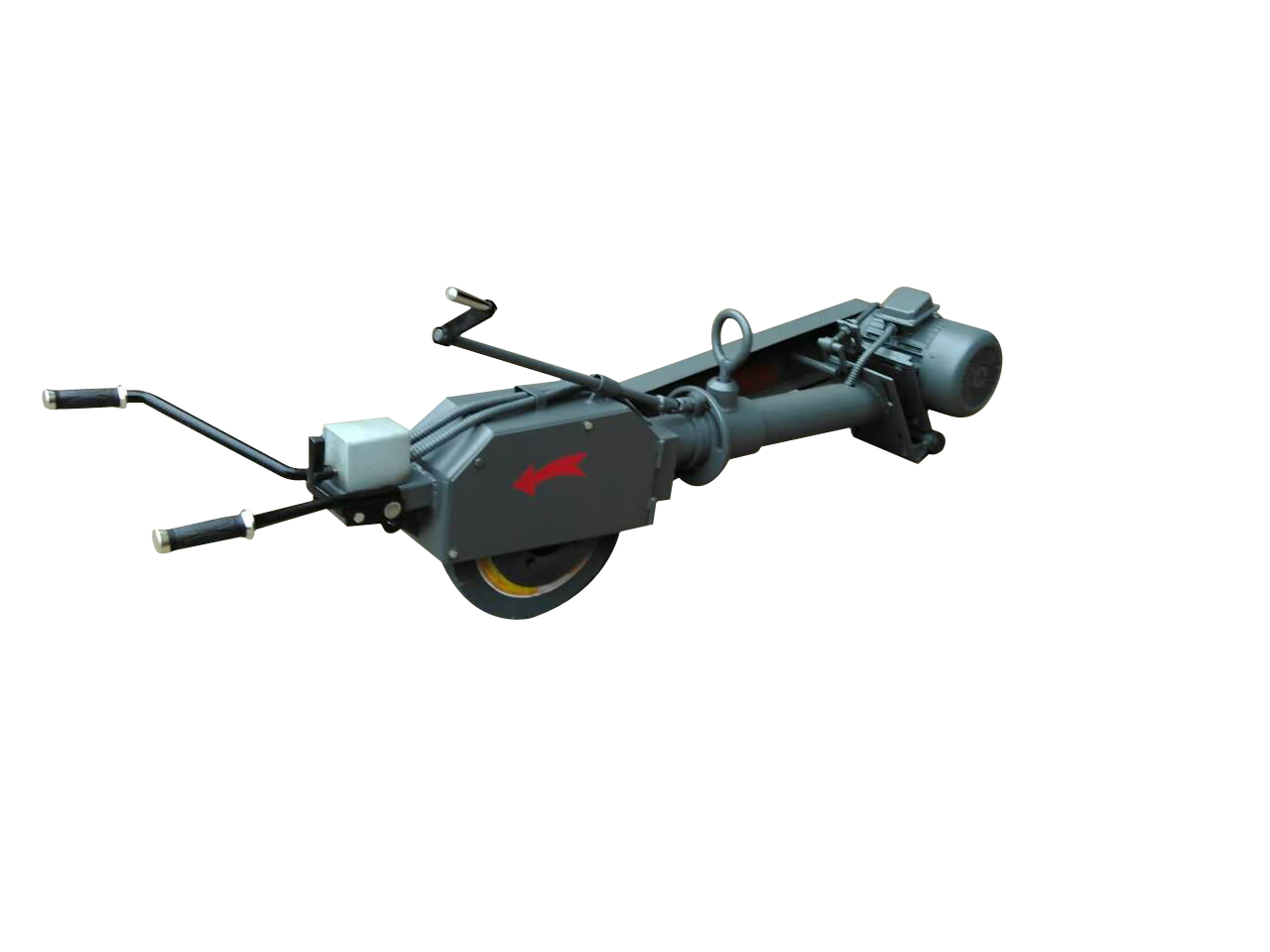

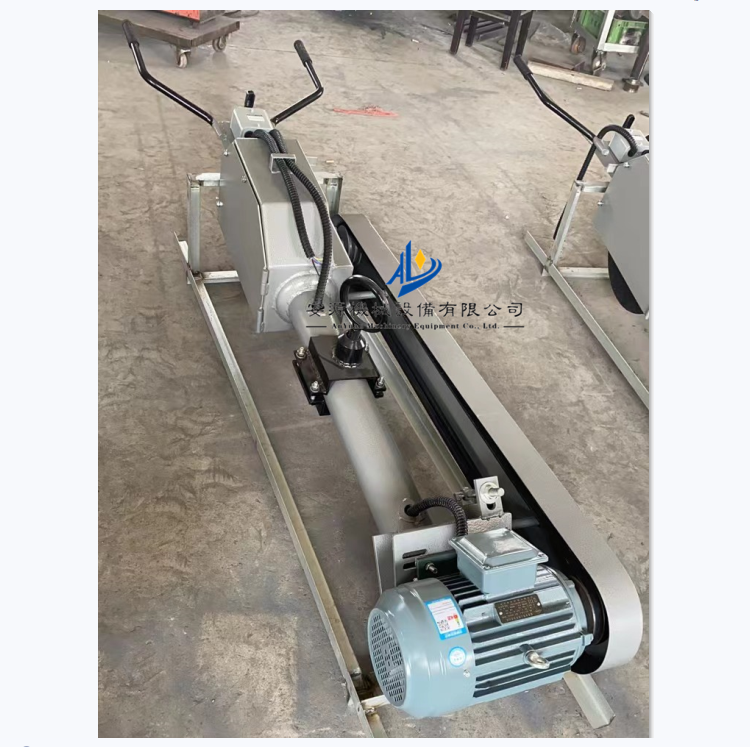

Hanging Type Grinding Wheel Machine M3140 Suspended Grinding Wheel Machine Belt Drive Grinding Wheel Machine

Hanging type grinding wheel machine, also known as suspended grinding wheel machine. Primarily used for grinding stainless steel, titanium ingots, alloy steel, special steel, steel ingots, and cracks, carbide inclusions, burrs in various metals.

Hanging type grinding wheel machine  Operation Procedure

Check the stability of the hanging item before use.

  2、 First, observe if the motor is reversing. Normally, the grinding sparks should be shot towards the motor; otherwise, shut off the machine immediately to check if the circuit is functioning properly.

3. After the grinding wheel machine is started, it should be operated once the rotation is stable for grinding. If there is significant vibration in the machine, it should be stopped and adjusted immediately.

Do not apply excessive force during the grinding process.

5. Select a grinding wheel that matches the spindle speed of the grinding machine according to the instructions provided.

6. New grinding wheels must have a factory-certified quality certificate or inspection mark. Do not use the wheel if any defects such as quality issues, hardness, grain size, or cracks are found before installation.

7. When installing the grinding wheel, the clearance between the inner hole of the wheel and the main shaft should not be too tight. It should be adjusted according to the technical requirements for loose fit, generally controlled between 0.05 and 0.10 millimeters.
