Handheld Grinder, Casting Grinding Wheel Machine, M3140 Suspended Grinding Wheel Machine

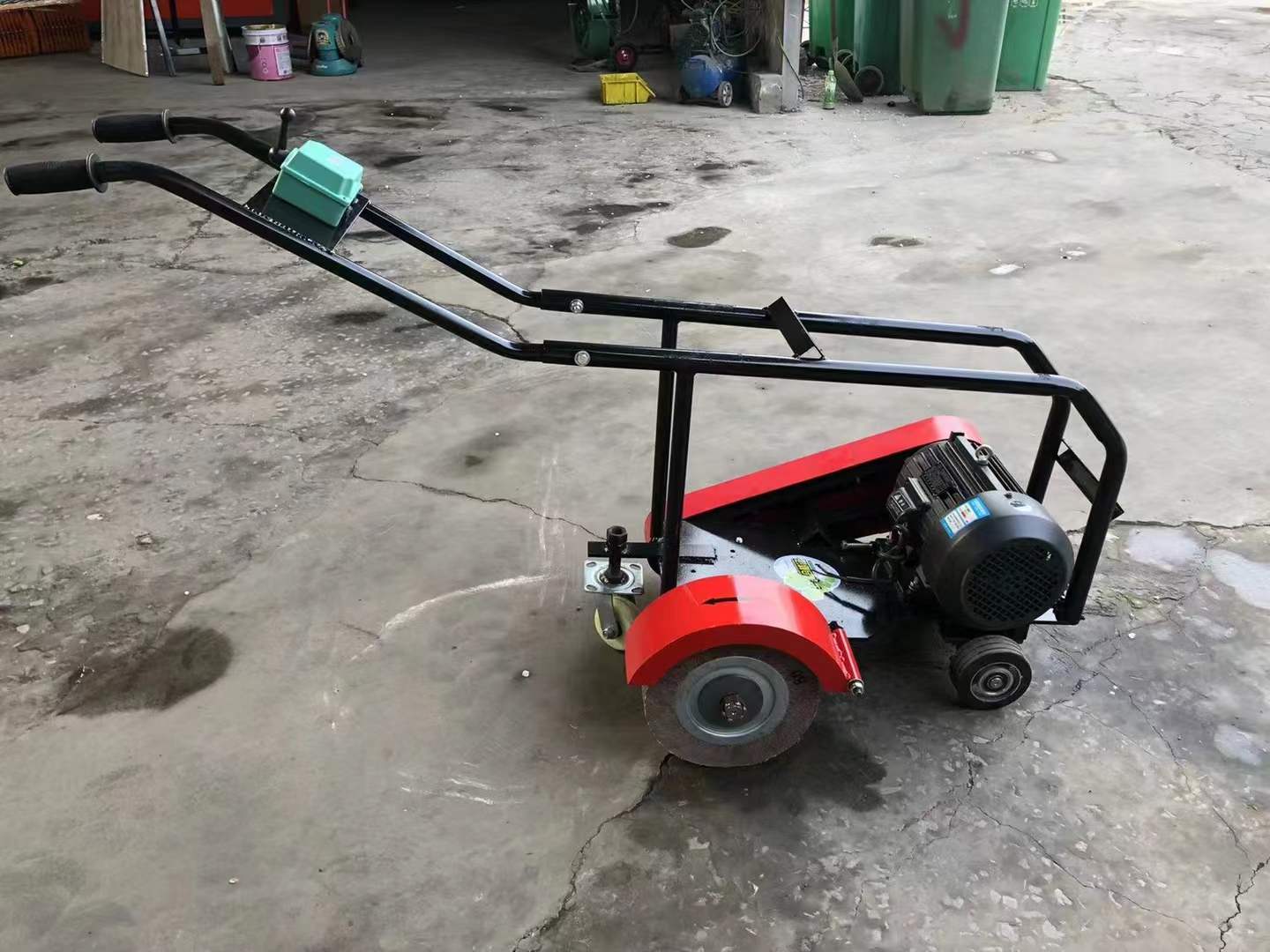

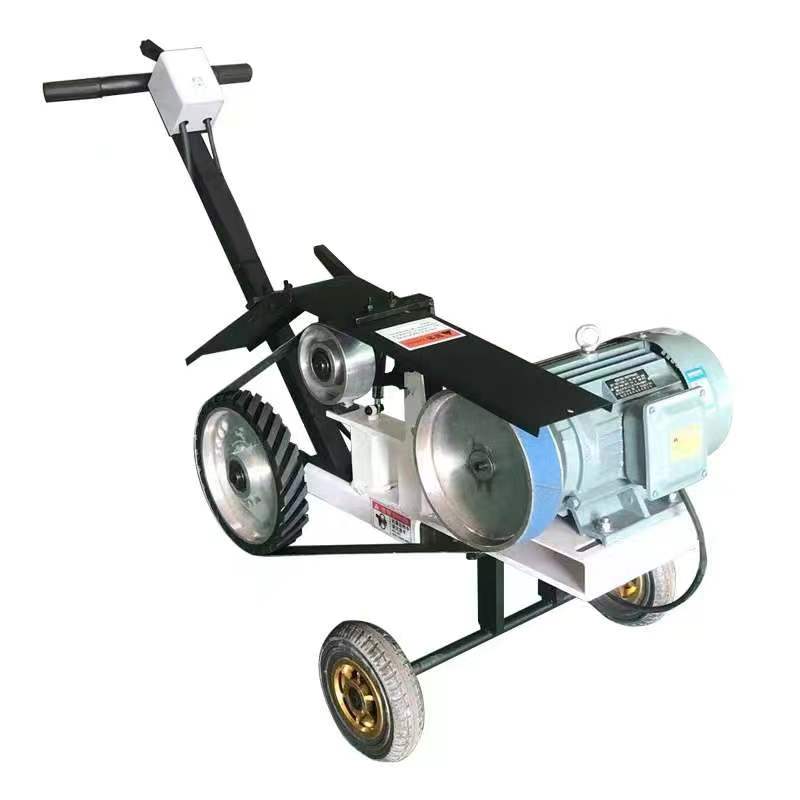

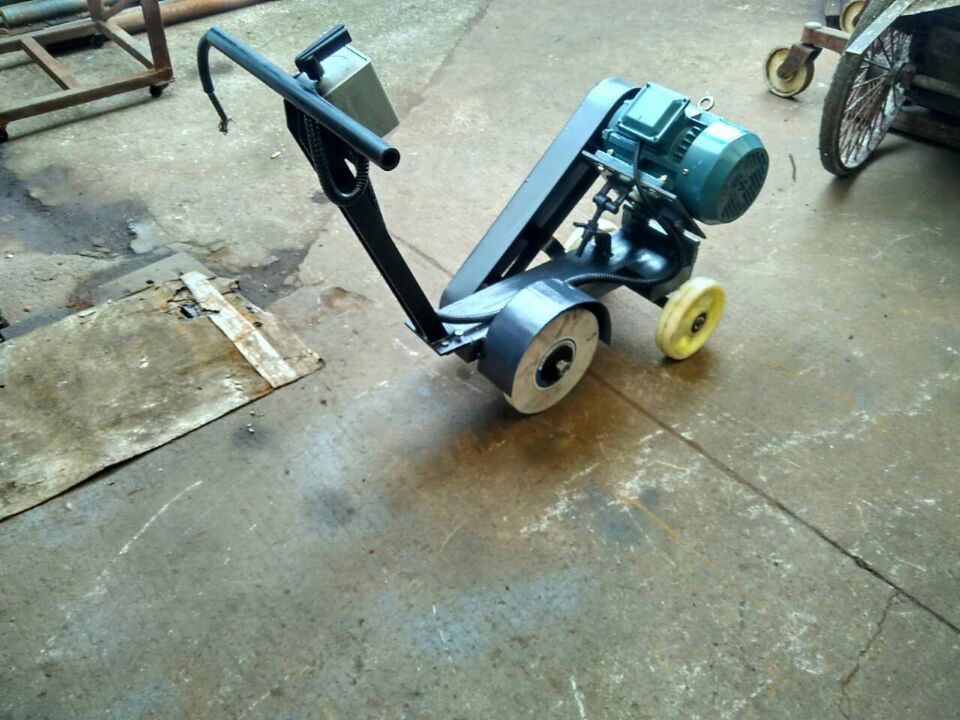

Grinding is a process carried out on castings in the foundry. Regarding the grinder(Grinding Machine), an appropriate model should prioritize ease of operation, suitable efficiency, labor and abrasive wheel cost savings, low labor intensity, long machine lifespan, and good economic benefits. The choice of grinding model can be based on the size and geometric shape of the castings. Generally, small parts use fixed-type grinding machines, while large parts use suspended grinding machines. The casting remains stationary, and the suspended grinding machine moves within an appropriate radius. Alternatively, portable pneumatic or electric small grinding wheels can be used for any part, though they are convenient, they have low efficiency, consume more small abrasive wheels, high labor intensity, and high costs. Handcart-type grinding machines are more suitable for medium-sized castings for planar grinding or riser and runner cutting. Simple handcart-type grinding machines can be homemade in large-scale foundries, offering convenience, appropriate results, and the ability to customize the outline dimensions according to the casting situation.

Grinding wheels are used for sharpening cutting tools and removing burrs from machinery.

The Difference Between Bench Grinder and Vertical Grinder:

Table Saw Sandpaper Wheel Diameter150~300mm; vertical grinding wheel machine wheel diameter 200~400mm

The bench grinder is suitable for deburring, smoothing, and sharpening of small metal parts, as well as blade honing, and is widely used in mechanical manufacturing and household industrial settings.

Vertical grinding wheels are suitable for deburring and polishing of medium to large metal parts, as well as for sharpening cutting tools, and are widely used in mechanical manufacturing and by small and medium-sized enterprises.

M30Type A Vertical Grinding Wheel Machine: Use and Maintenance

Grinder prior to use                  Please provide the Chinese content to be translated.Megaohmmeters above 500 volts to measure its insulation resistance, with a value not less than 0.5 megohms.

2. Prior to use, the abrasive wheel machine should be thoroughly inspected for any damage or cracks due to transportation, and for any loose fasteners. If any are found, they should be tightened accordingly.  Ensure proper rotation. Pay special attention to the absence of cracks in the grinding wheel. Gently tap with a wooden mallet; a clear, crisp sound indicates it is safe to use.

3. Prior to use, the grinding wheel machine should be manually rotated to check for smooth, easy movement and listen for any rubbing noises.
