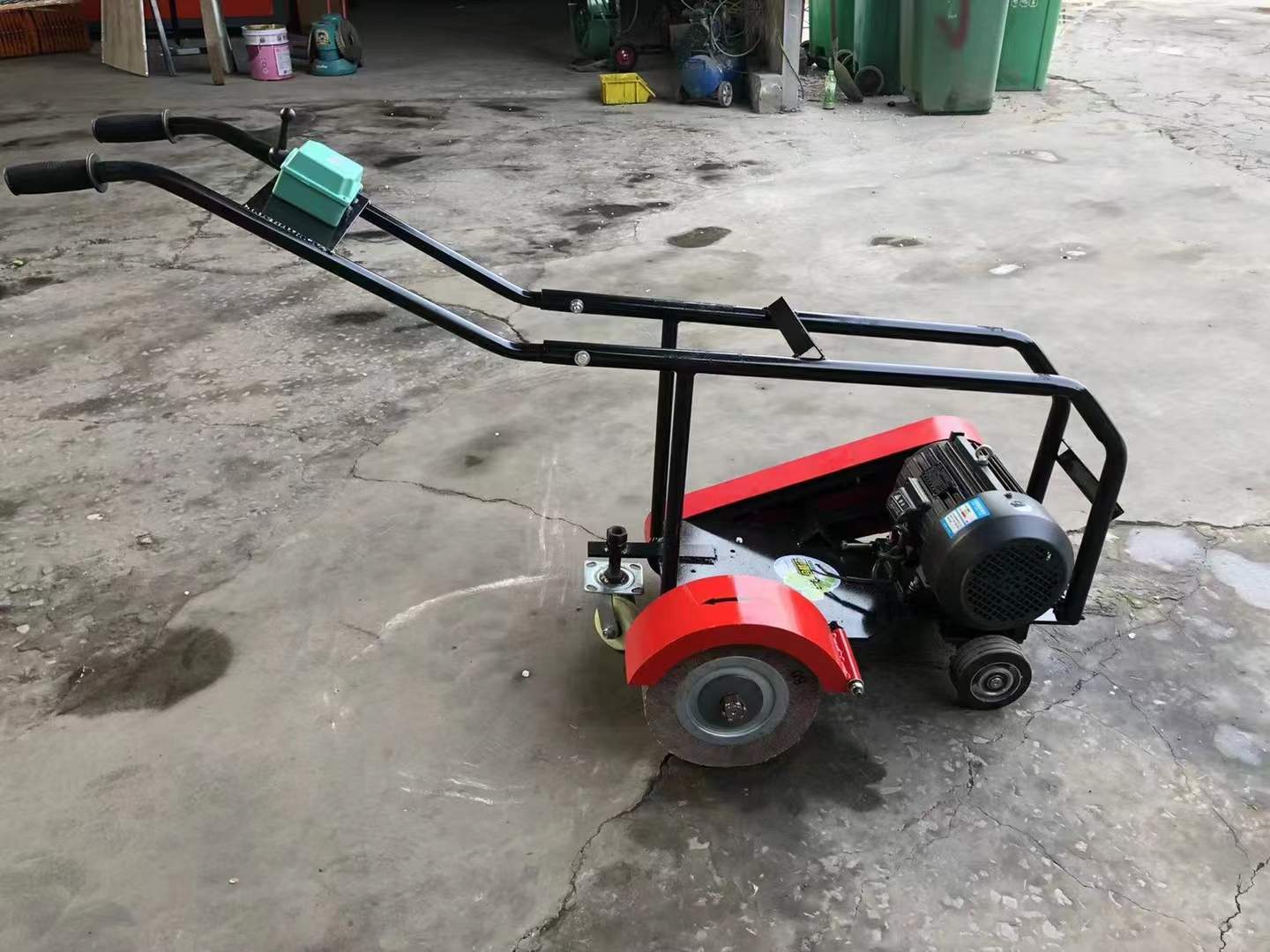

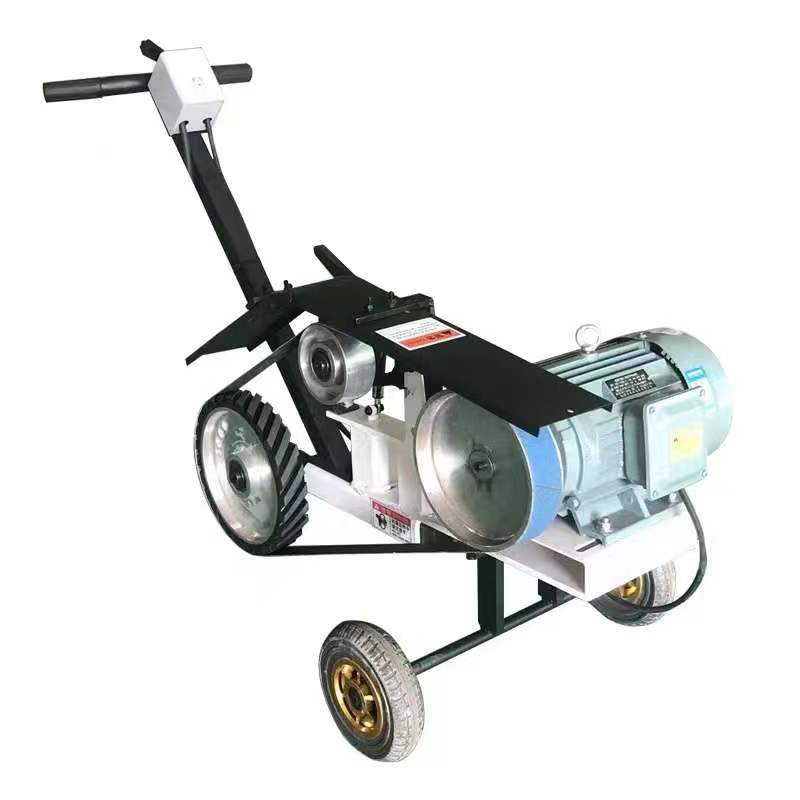

Handheld Sanding Belt Machine, Steel Plate Weld Seam Deburring Machine, Electric Sanding Belt Machine

· Suitable for grinding steel plates/Carbon steel/Alloy steel/Ductile iron/Non-ferrous metals/Copper Components/Aluminum parts/Wood/Stone/Glass and other non-metallic materials。

· Shipyard, boiler factory, large steel welding factory, cast steel/Cast Iron/Casting copper factory with grinding, deburring, and polishing machines.

 The machine is primarily composed of the drive mechanism, sand belt tensioning mechanism, contact wheel (grinding wheel) system, bracket, stand, caster wheels, sand belt, hand push rod, etc. The motor transmits power directly to the drive wheel, which drives the sand belt to rotate at high speed. The sand belt is tensioned by the tensioning mechanism, and grinding is performed using the contact wheels. Depth adjustment devices for grinding are set on both sides of the contact wheels, allowing for control of the grinding depth to ensure both flat welding seams and protection of the base material.

 The machine is primarily used for grinding flat joint welds, and it can also be used for polishing flat surfaces.

 Main Technical Parameters:

1. Sanding Belt Specifications (Width): 150mm

2. Sanding Belt Grit: 36-320#

3. Sanding belt line speed: 33 m/s

4. Motor Power: 4 kW, Speed: 2880 rpm

5、Overall Weight:120kg
