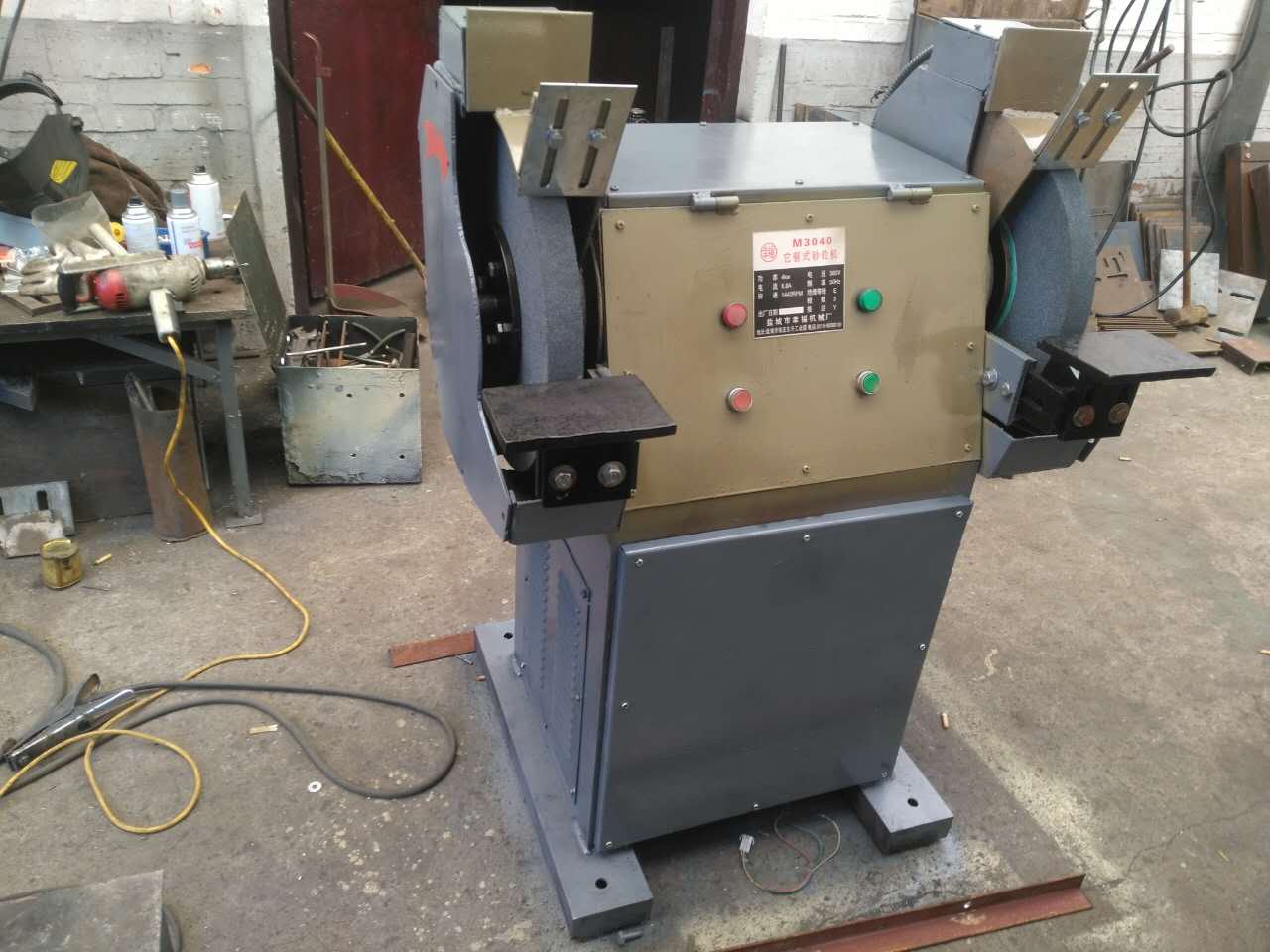

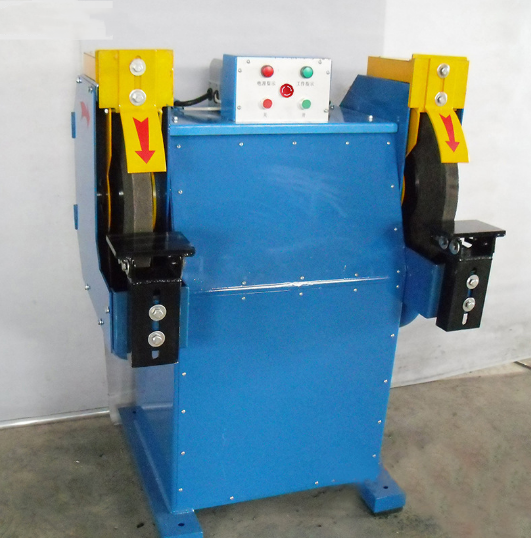

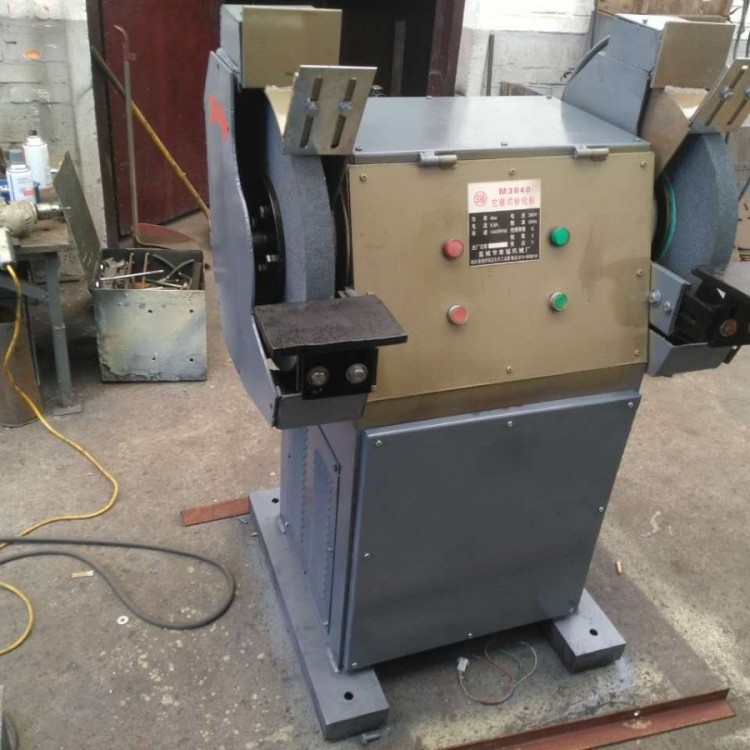

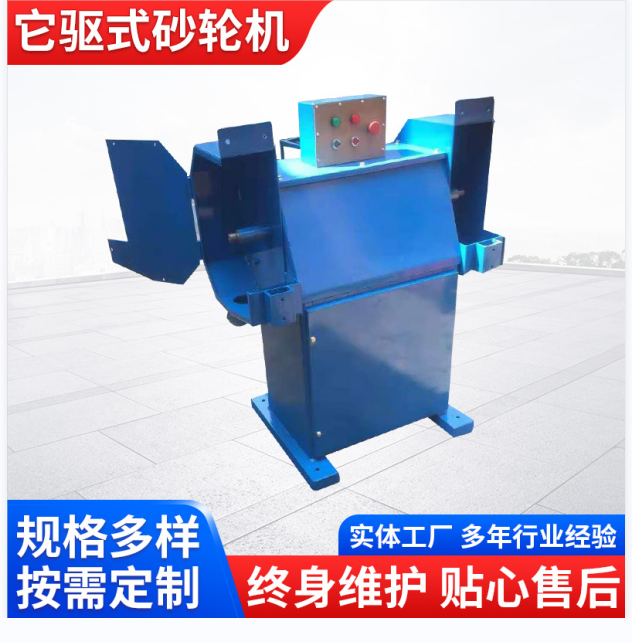

Heavy-duty Grinding Machine, Vertical and Horizontal Grinding Machines, M3040 Driven Wheel Machine

The driven abrasive wheel machine can also be connected to a dust collector for use, achieving dust removal and environmental protection effects.

Upon equipment startup, the grinding wheel and dust collector activate simultaneously. Dust particles generated during workpiece grinding are drawn into the sedimentation chamber by the negative pressure of the fan. Large and heavy particles of dust fall directly into the ash drawer, while fine dust is carried by the air flow into the filter box. As it passes through the filter bags, dust adheres to the surface. The purified gas is then blown into the clean room by the fan, after which it is discharged into the atmosphere through sound absorption. After operating for a period and shutting down, the dust removal motor automatically starts to vibrate and clean the filter core, shaking off the dust adhered to the filter core into the ash collection/discharging pan. The vibration time is adjustable.

It drives the type naming of the grinding wheel machine

It features three main models of driven grinding wheels.MT3040,MT3050WithMT3060,Amongst“30”For it driven(Vertical)Grinding wheel machine (general term)“40”Representative diameter of the matched grinding wheel machine400mm。

It features high rotational speed, simple structure, wide applicability, and is generally operated manually, in addition to the common requirements for grinding machine tools.

It drives the grinding wheel.

It is a self-driveless grinding wheel machine that relies on an external power source to operate, typically using an electric motor to drive a belt pulley, which in turn powers the grinding wheel to rotate at the specified speed.
