High-speed Grinding Machine Diamond abrasive wheel for casting iron 5.5 kW drive-type grinding wheel machine

It is a driven grinding wheel machine, composed of a drive structure that uses a motor and belt pulley to drive the grinding wheel to rotate at a specified speed.

It features the following characteristics of the grinding wheel machine:

1. More powerful horsepower, longer lifespan.

2. Heavy-duty, high-intensity work design, operates quietly

2. Full-enclosed protective cover, for safer operation

4. All electrical components are selected from imported or domestic products.

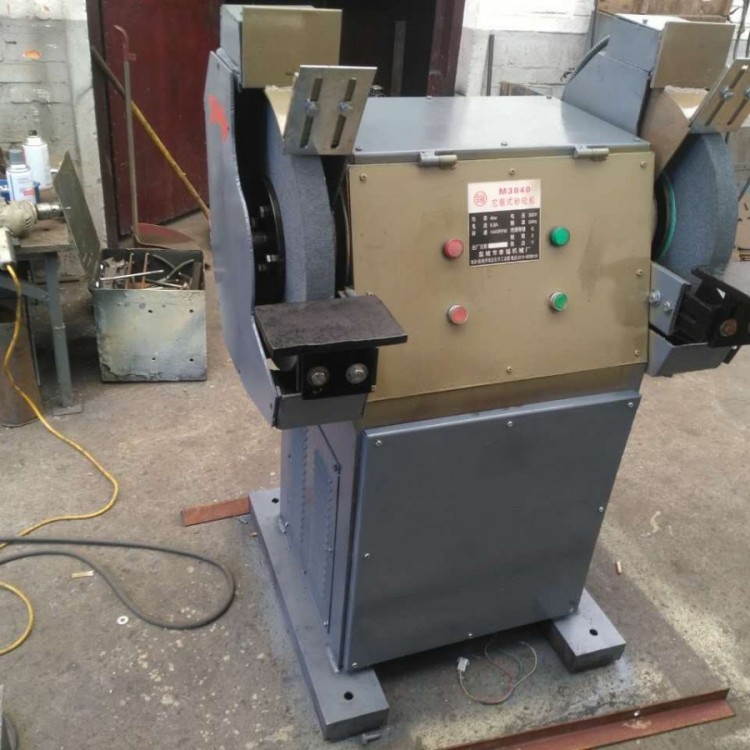

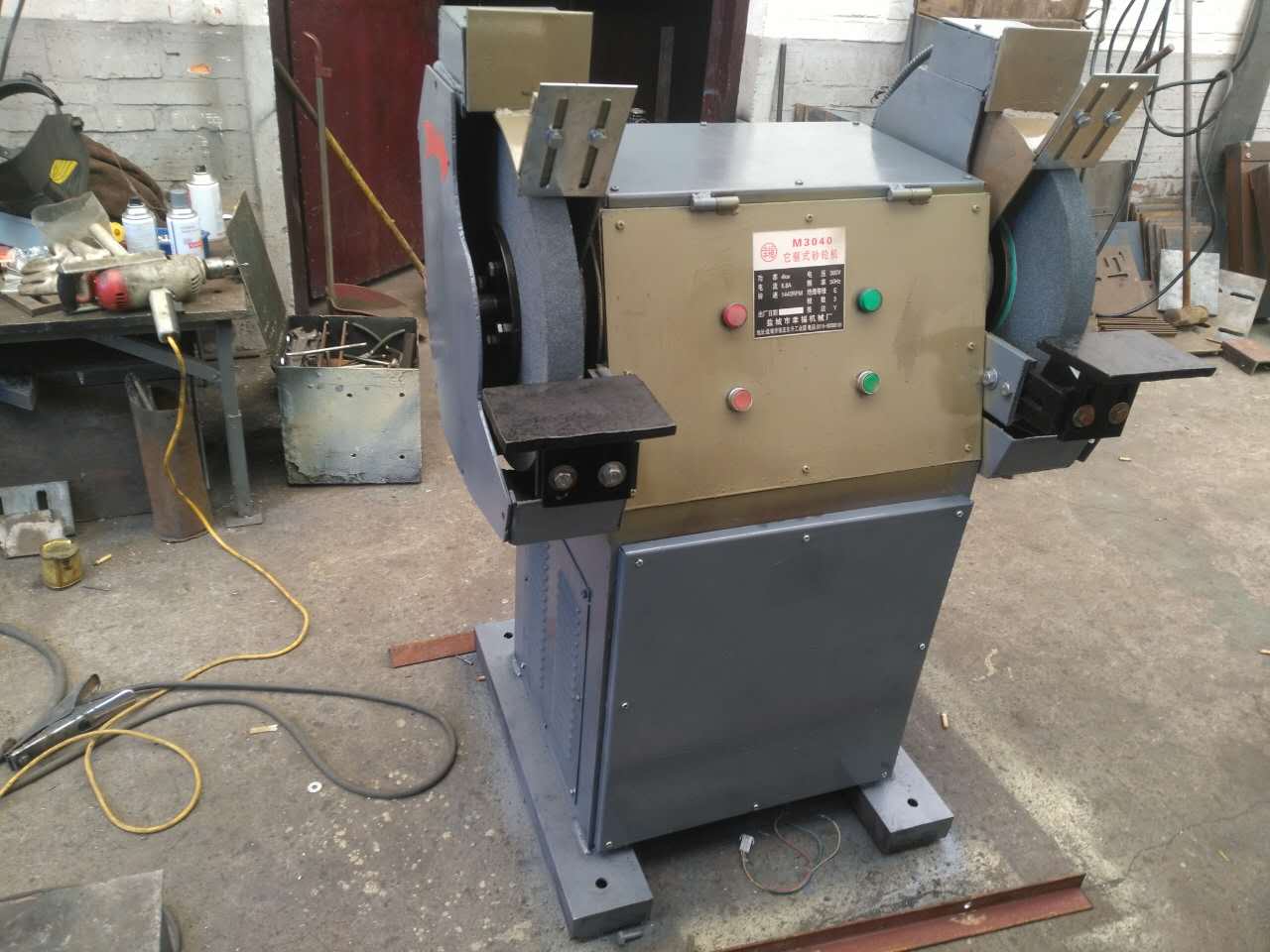

The M3040A driven grinding wheel machine, in addition to meeting certain common requirements of grinding machines, features high speed, simple structure, wide applicability, and is generally operated manually.

Life is not a sprint; it's a marathon, and a few seconds ahead at the start won't make a difference in the long run.

Foot by foot, step by step, what can be caught up with will be.

It drives the grinding wheel with it's principle:

The M3040A driven grinding wheel machine does not come with its own drive system. It operates by relying on external power to drive its rotation. Typically, it uses an electric motor to power the grinding wheel through a belt and pulley system, ensuring the wheel rotates at the specified speed.

Application and Usage Scope:

The M3040A driven grinding wheel machine boasts an attractive appearance, simple structure, ease of use, and excellent performance, making it a commonly used equipment in general industrial and mining enterprises.

It is mainly used for general industrial and mining foundries as a tool for sharpening blades, and also for grinding, deburring, and cleaning of small parts.

2. The driven grinding wheel machine can be used in humid tropical regions with an altitude not exceeding 1,000 meters, relative air humidity not exceeding 95%, and surrounding environmental temperature not exceeding +40°C.

Operation Procedures:

Check the stability of the hanging object before use.

After the second use, first observe if the motor reverses. Normally, the grinding sparks should shoot towards the motor. Otherwise, immediately shut down and check if the circuit is functioning properly.

3. After the grinding wheel machine is started, it should be allowed to rotate smoothly before grinding. If there is significant vibration, the machine should be stopped and adjusted immediately.

Do not apply excessive force during grinding.

5. Select a grinding wheel that matches the spindle speed of the grinding machine according to the instructions provided.

6. New grinding wheels must have a factory certification or inspection and test mark. Do not use the wheel if defects such as quality, hardness, particle size, or cracks in appearance are found before installation.

7. When installing the grinding wheel, the clearance between the inner hole of the wheel and the main shaft should not be too tight. It should be adjusted according to the technical requirements for loose fit, generally controlled between 0.05 and 0.10 millimeters.
