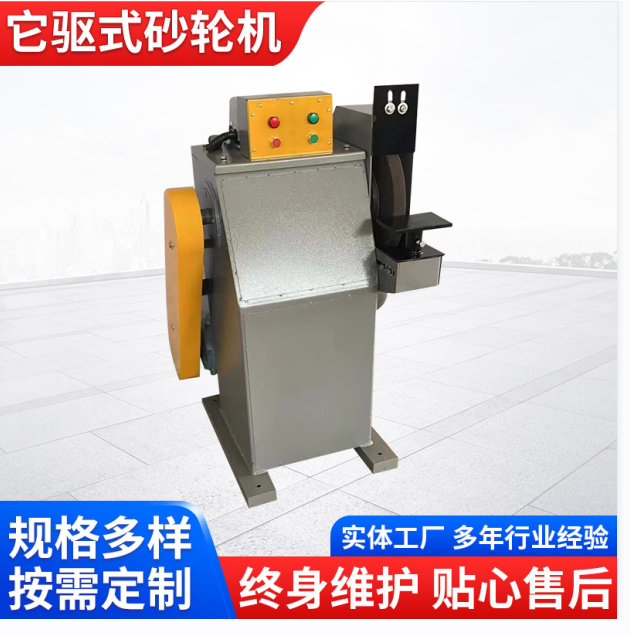

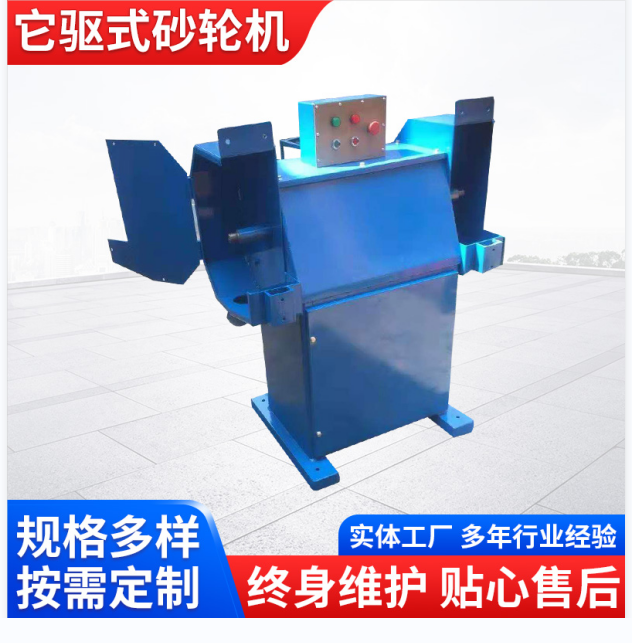

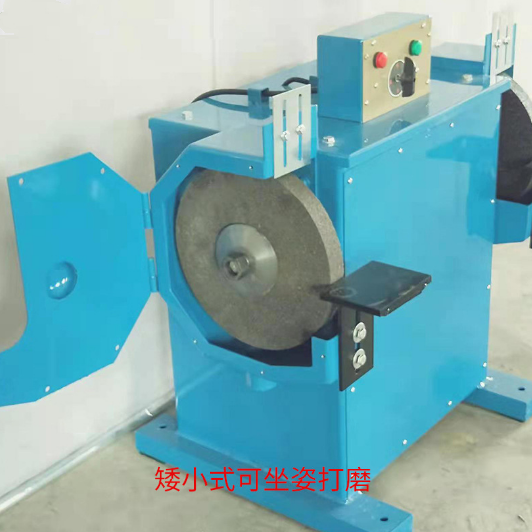

Self-Driven Floor-Type Grinding Wheel Machine MT3040, Dust-Extraction Grinding Wheel Machine
The M33 series dust-extraction grinding wheel machine is an improved new dust-extraction grinding wheel machine, developed based on the original superior product, the MC30 series dust-extraction grinding wheel machine.
The dust-removing grinding wheel machine is primarily used by general industrial and mining enterprises for sharpening cutting tools and can also grind small parts, deburr, and clean up.
2. Dust-extraction type grinding wheel machine can be used at altitudes not exceeding 1,000 meters and with relative humidity of the surrounding air not exceeding 90%. No content provided.+40°C humid tropical region.
3. This unit employs fabric dust removal, achieving an efficiency of over 98%, with dust concentration less than 10 mg/m³. Compliant with the Ministry of Labor and Human Resources and the Ministry of Environmental Health of the country.
1. The grinding wheel's rotation direction must be correct, ensuring the chips fly downward away from the wheel.
After the grinding wheel machine is started, grinding should only be performed once the machine has stabilized. If the machine exhibits significant vibration, it should be immediately shut down for adjustment.
The abrasive wheel machine bracket and abrasive wheel should maintain a distance of 3mm to prevent workpieces from piercing and causing accidents.
When grinding, stand on the side of the grinding wheel machine and avoid excessive force.
5 Choose a grinding wheel according to the instructions provided for its use, ensuring it matches the speed of the grinding wheel machine's spindle.
6 New grinding wheels must have a factory inspection certificate or a test mark. Do not use the wheel if any defects such as quality, hardness, grain size, or cracks are found before installation.
When installing the grinding wheel, the clearance between the inner hole of the wheel and the main shaft should not be too tight. It should be adjusted according to the technical requirements for loose fit, generally controlled between 0.05 and 0.10 millimeters.
8 The grinding wheel must be equipped with flanges on both sides, with a diameter not less than one-third of the grinding wheel's diameter. Adequate washers should be placed between the grinding wheel and the flange.
When tightening the nut, use a specialized wrench and do not overtighten. Absolutely avoid using a hard object to hammer it, as this may cause the grinding wheel to crack.
After assembling 10 grinding wheels, protective covers, guards, and brackets should be installed. The gap between the guards and brackets and the grinding wheel should be maintained within 1?3mm and slightly below the center of the wheel.
