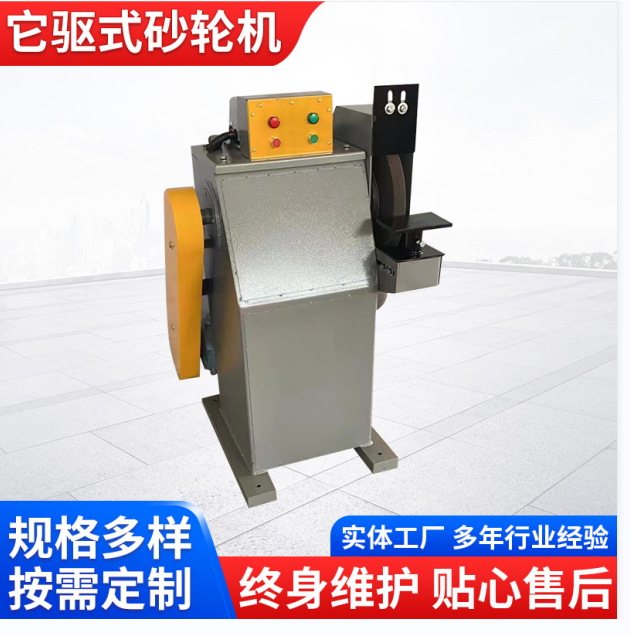

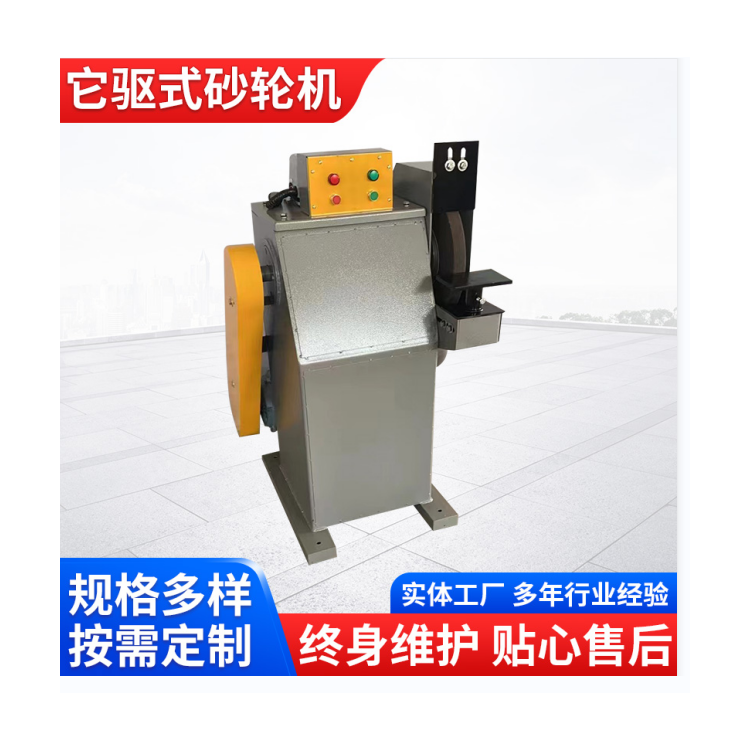

High-speed Diamond Grinding Wheel Machine, Single Head Grinding Wheel Machine for Cast Iron, It-Driven Grinding Wheel Machine

Features:

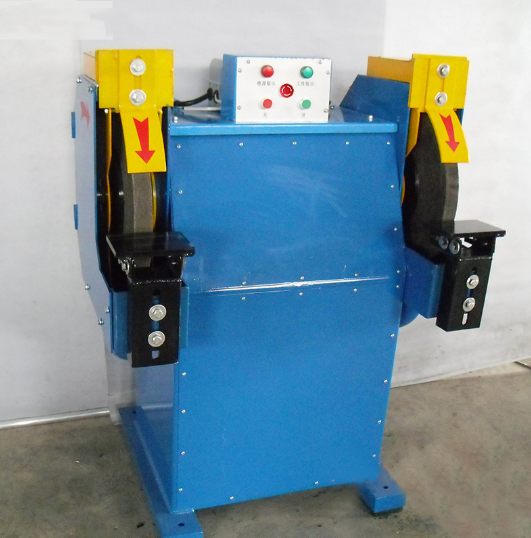

One machine with a main motor driving two groups of polishing wheels on each side, and one worktable on each side for the workpieces. The worktables are equipped with functions for tilting, advancing, and reversing.

Polishing wheels can accommodate abrasive wheels like sisal, cloth, straw, and nylon, as well as sanding belts or spoke wheels, for polishing, sanding, embossing, and deburring of workpieces.

 Application Range:

Broadly used for polishing or mirror finishing on items such as hardware, plastics, furniture, stainless steel, machinery, and gold精密 fittings.

 The power ratings of our company's similar products also include:

 Power:1.1KW, 1.5KW, 2.2KW, 3KW, 4KW, 5.5KW, 7.5KW (equivalent to 2, 3, 4, 5.5, 7.5, 10HP). Speed: 2860 RPM, 1430-2860 RPM; rated voltage is 380V, 220V, etc.

The dust-extraction type grinding wheel machine is not resistant to chemical corrosion and should not be used outdoors. Usage Instructions:1.Grinding wheel machine before use                  Please provide the Chinese content to be translated.500The megohmmeter measures the insulation resistance above 500 volts, with a value not less than0.5Megaohm.2.Grinders should be thoroughly inspected for any damage or cracks in the parts due to transportation, and for any loose fasteners. If any are found, they should be tightened accordingly.  Ensure even tension. Pay special attention to the absence of cracks in the grinding wheel. Gently tap with a wooden mallet; a clear, crisp sound indicates it is safe to use. 3.Before use, the grinding wheel machine should be manually rotated to check for smooth and easy movement, and carefully listen for any rubbing or grinding noises.4.The direction of rotation for grinding wheels and fans should be consistent with the rotation direction indicator.5.The abrasive wheel machine must not collide with the workpiece during operation.                  Gradually apply pressure to prevent the grinding wheel from being subjected to impact forces, thereby avoiding explosions and accidental incidents. 6.The abrasive wheel machine guard is strictly prohibited from being removed except for the replacement of the abrasive wheel and for maintenance and disassembly.                                                                      。 7.Two grinding wheels on a medium grinding machine have worn down, with a difference in their diameters.            No larger than20%。 8.During operation, the grinding wheel machine should always produce a normal sound. If screeching, humming, or other abnormal noises occur, the machine should be stopped immediately to inspect the cause of the noise, and only continue using it after the issue is resolved.9.Grinder equipped with dust bag collector,As more accumulated dust adheres to the fabric bag, the air intake of the fan will decrease.,So, the front door should be opened regularly.,Remove the dust bag,Empty the dust from the bag completely.
