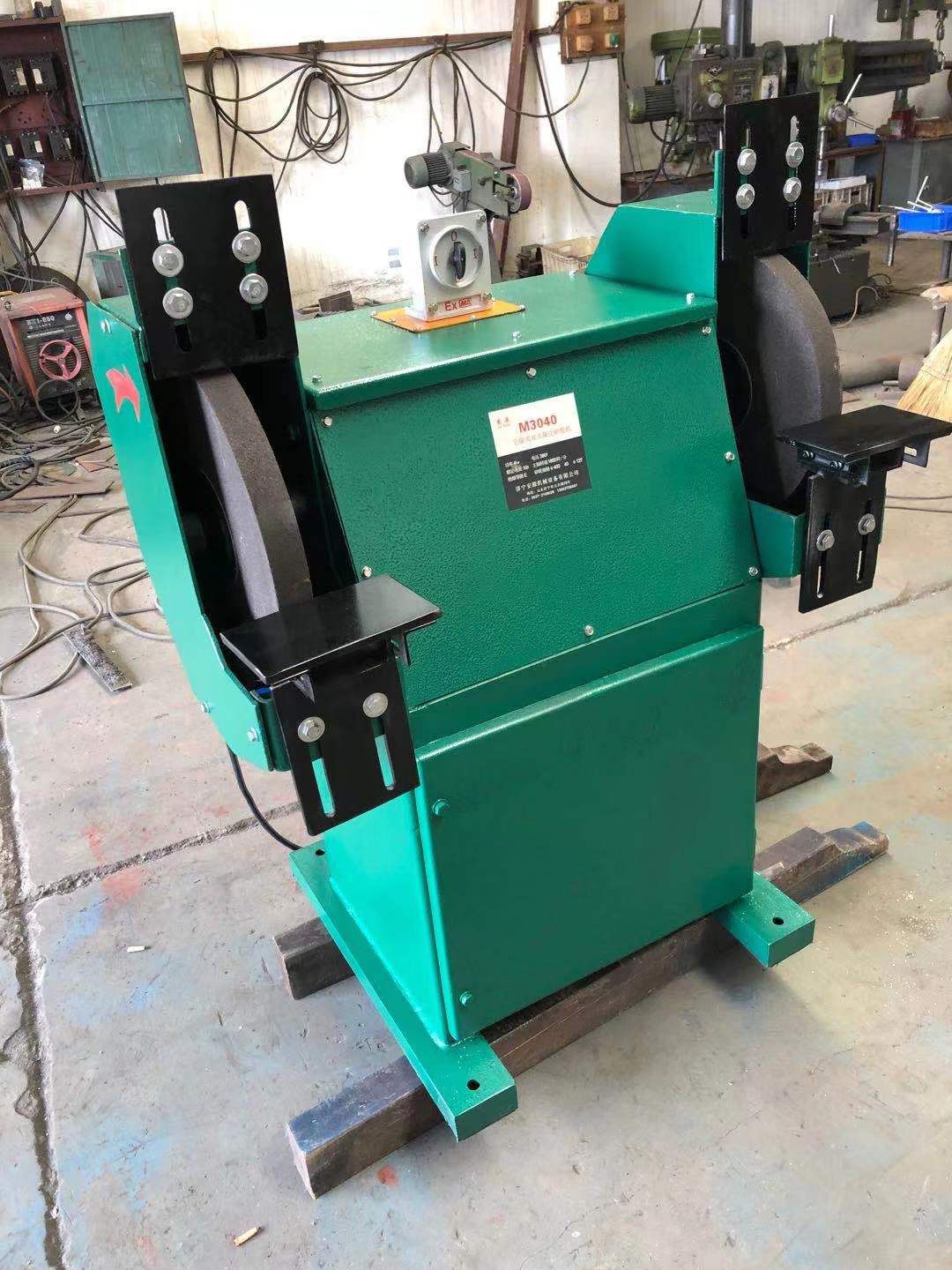

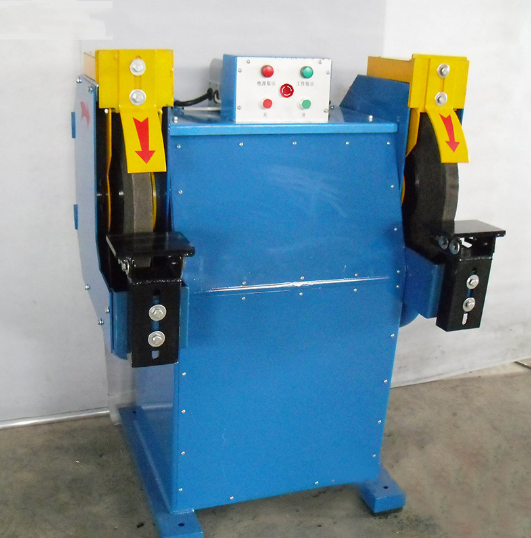

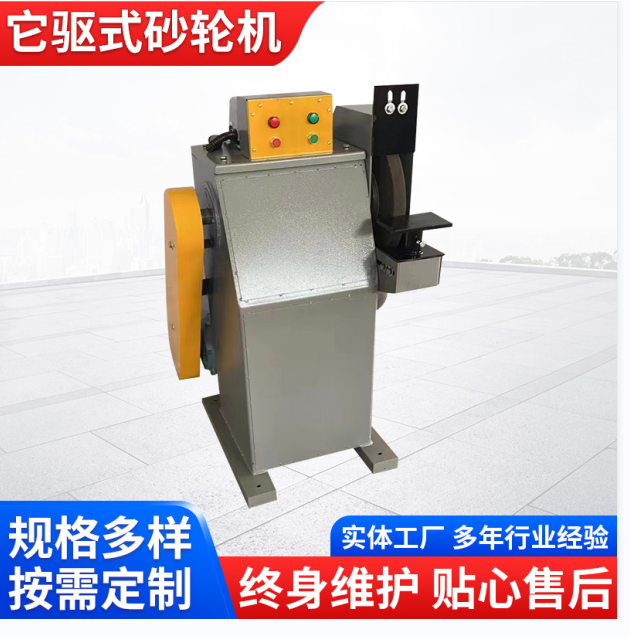

Dust Extraction Grinding Wheel Machine, Dust-Free Grinding Wheel Machine for Workshop, M3330 Grinding Wheel Machine

M30The type of floor-mounted grinding wheel machine features an aesthetically pleasing design, simple structure, ease of use, and excellent performance, making it a commonly used equipment in general industrial and mining enterprises.

 1.Floor-mounted grinding wheel machines are mainly supplied for general industrial and mining enterprises, used for grinding ordinary small parts, deburring, and cleaning castings.,Also suitable for honing regular cutting tools.

 2.The pedestal grinding wheel is not resistant to chemical corrosion and should not be used outdoors.

Utilization and Maintenance

Grinding wheel machine prior to use                  Please provide the Chinese content to be translated.Mega-ohmmeters over 500 volts measure the insulation resistance, which must be no less than 0.5 megaohms.

2. Before use, the parts of the grinding wheel machine should be thoroughly inspected for any damage or cracks due to transportation, and for loose fasteners. If any are found, they should be tightened.  Ensure tightness. Pay special attention to whether the grinding wheel has cracks; it can be gently tapped with a wood mallet, and only if it emits a clear, crisp sound should it be used.

3. Before use, the grinder's shaft extension should be manually rotated to check for smooth, easy movement and listen for any grinding or rubbing noises.

4. The rotation direction of the grinding wheel and fan should match the indicated rotation direction.

5. Do not allow the workpiece to collide with the grinding wheel during operation.                  Gradually apply pressure to prevent the grinding wheel from being subjected to impact forces, thus avoiding an explosion and potential accidents.

6. The abrasive wheel machine guard is strictly prohibited from being removed except for the replacement of the abrasive wheel and maintenance disassembly.

7. Two grinding wheels have been worn down, with a difference in their diameters.            No larger than20%。

8. Replace with a new grinding wheel. Ensure it is balanced during installation. The soft pad between the grinding wheel and the mounting plate should be properly seated, and the nut should not be tightened excessively to prevent the wheel from cracking.

9. The lubricant in the bearings should typically be replaced every six months.

10. The M3030, M3035, and M3040 vertical grinding wheels are equipped with a worktable. When using the worktable, ensure that its support surface is at the same height as the motor shaft centerline. After adjusting the height of the worktable,                  Secure firmly.

11. During storage, the grinding wheel machine should not be exposed to moisture or freezing temperatures to prevent cracking of the insulation surface, which may affect the normal operation of the machine.
