Belt Drive Grinding Wheel Machine, Casting Grinding Wheel Machine, It-Driven Grinding Wheel Machine

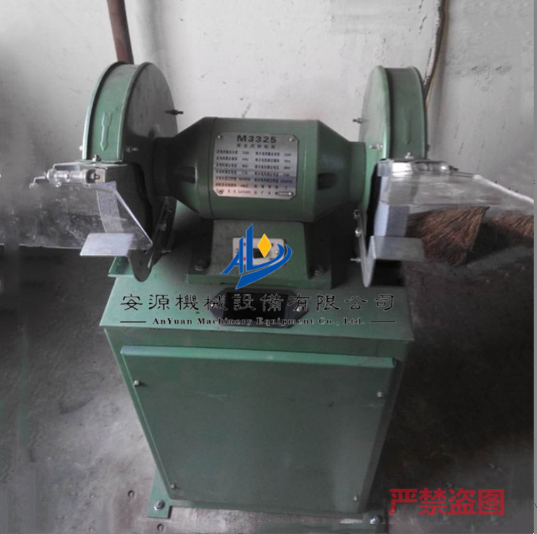

1.Floor-standing grinding wheel machines are mainly supplied to general industrial and mining enterprises for grinding common small parts, deburring, and casting cleaning operations.,Also suitable for sharpening ordinary cutting tools.
2.The pedestal grinding wheel machine is not resistant to chemical corrosion and should not be used outdoors.
1.The grinding wheel machine's rotation direction must be correct, allowing only the abrasive particles to fly downwards away from the wheel. 2After the grinding wheel machine is started, it should be allowed to rotate smoothly before beginning the grinding process. If the machine exhibits significant vibration, it should be stopped immediately for adjustment.3The abrasive wheel machine bracket and abrasive wheel should maintain3mmKeep a safe distance to prevent the workpiece from piercing and causing an accident.4When grinding, stand on the side of the grinding wheel machine and avoid excessive force.5Select a grinding wheel that matches the spindle speed of the grinder according to the user manual.6The newly acquired grinding wheel must have a factory certification or inspection and test mark. It cannot be used if any defects such as quality, hardness, grain size, or cracks in appearance are found before installation.7When installing the abrasive wheel, the clearance between the inner hole of the abrasive wheel and the main shaft should not be too tight. It should be adjusted according to the technical requirements for loose fit, generally controlled at0.05?/FONT>0.10Within millimeters.8The grinding wheel must be fitted with flanges on both sides, with a diameter not less than one-third of the grinding wheel's diameter. A gasket should be properly placed between the grinding wheel and the flange.9When tightening the nut, use a specialized wrench; do not overtighten, and strictly avoid using a hard object for锤敲 to prevent the sand wheel from cracking.10After the grinding wheel is installed, the protective guard,挡板 (shutter), and bracket should be attached.

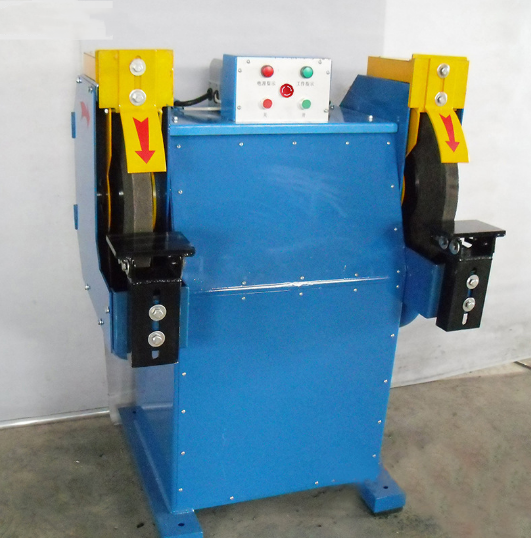

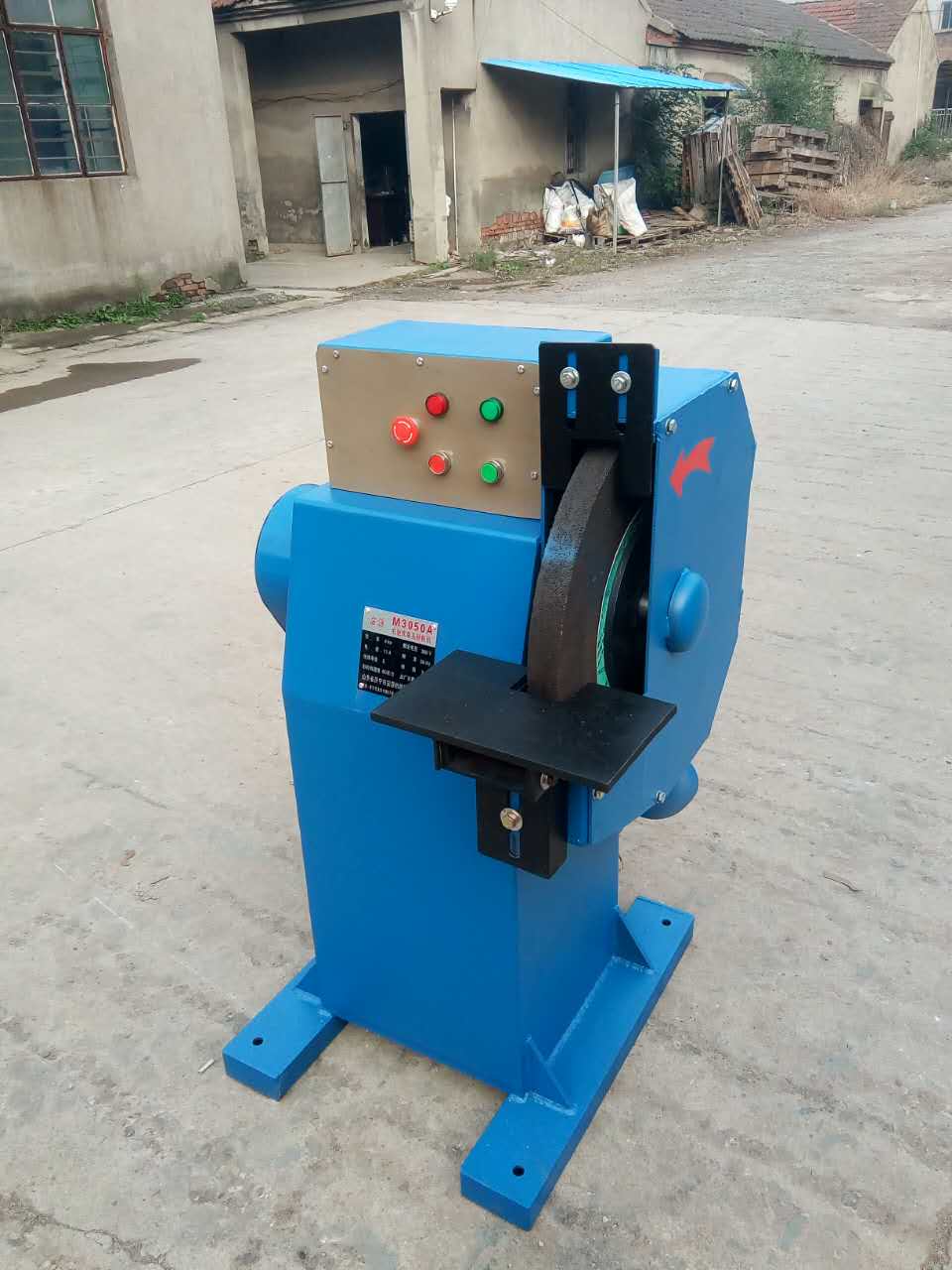

This machine is widely used for surface grinding on various finished products made of metal, non-ferrous metal, and non-metal. Particularly suitable for polishing, deburring, and finishing in industries such as mechanical manufacturing, hardware tools, die castings, daily hardware, and instruments. It is an ideal product to replace conventional grinding wheels and polishing disks.
