It Drive Grinding Wheel Machine M3325 Dust-Free Grinding Wheel Machine Belt High-Speed Grinding Wheel Machine

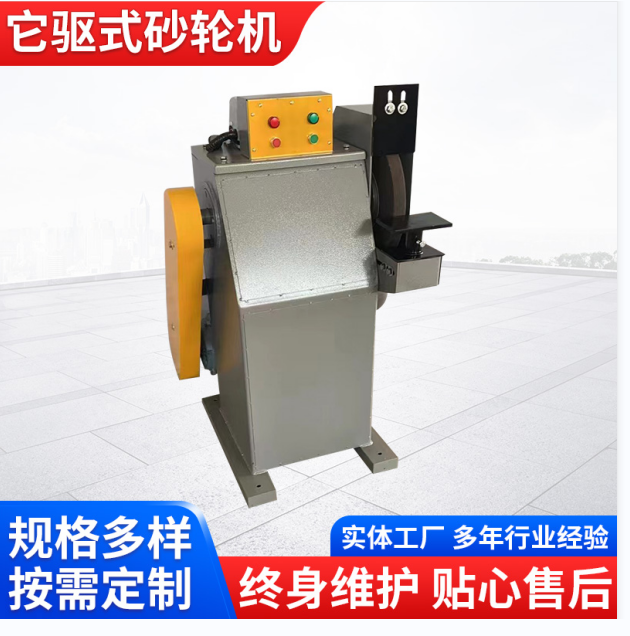

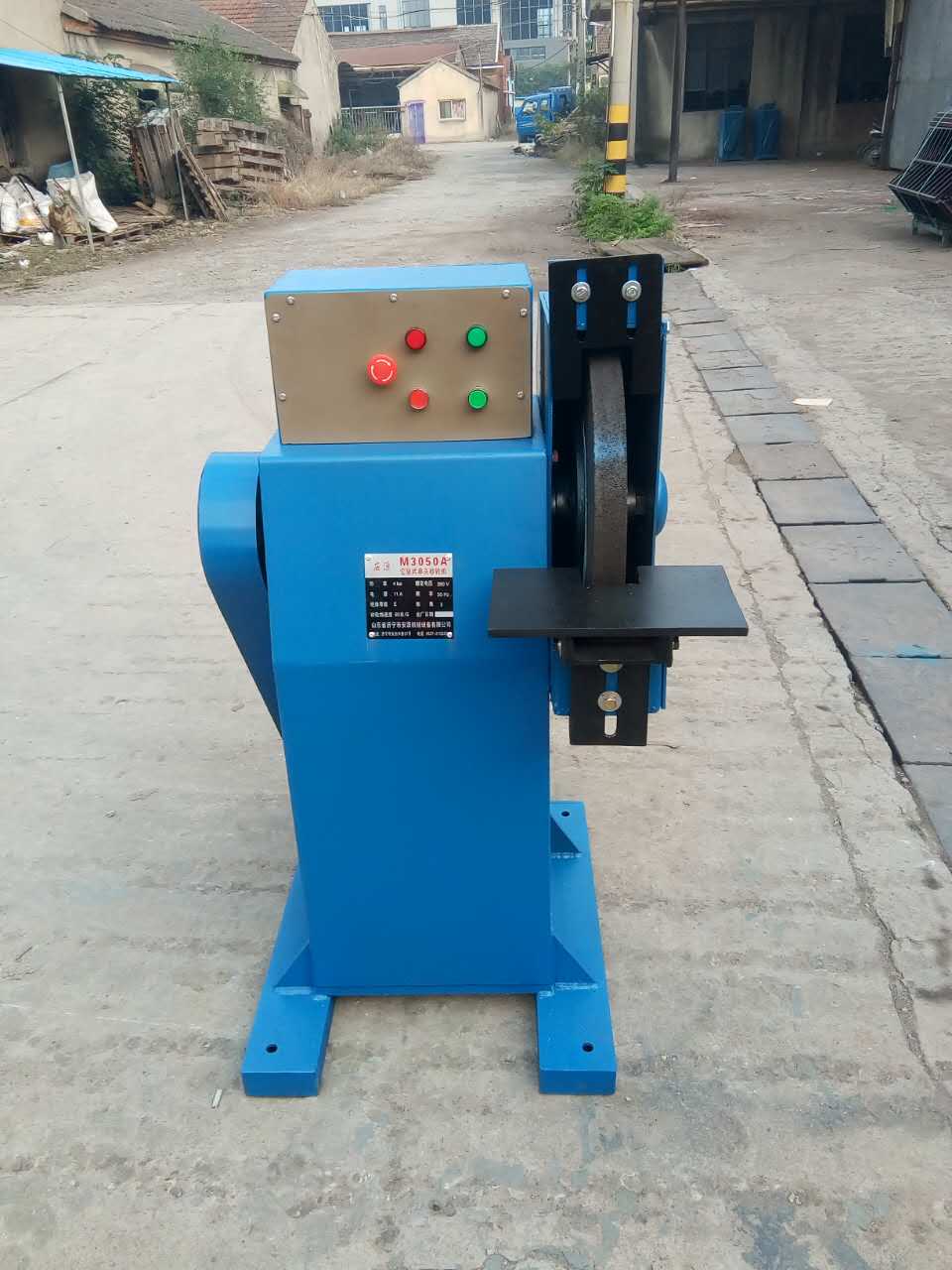

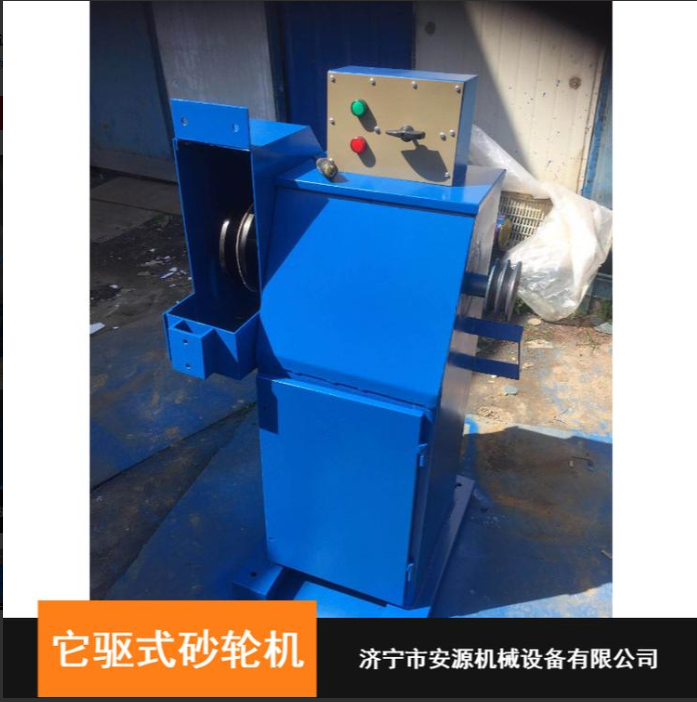

2. The driven abrasive wheel machine is suitable for various applications. It features an attractive appearance, simple structure, ease of use, and excellent performance, making it a commonly used equipment in general industrial and mining enterprises (right figure: photo of the driven abrasive wheel machine).

It is a driven grinding wheel machine primarily used for general industrial and mining foundries as a tool for sharpening blades, and also for grinding, deburring, and removing burrs on small parts within a wet tropical region where the surrounding relative humidity does not exceed 95% and the ambient temperature does not exceed +40℃.

3. The driven grinding wheel is not resistant to chemical corrosion and should not be used outdoors.

Regulatory Standards

It drives a grinding wheel.                                                                      Operation Procedure

Familiar with the structure, performance, and maintenance of grinding wheels.

3. Select a grinding wheel that matches the spindle speed of the grinding machine, according to the manufacturer's instructions. The newly acquired grinding wheel must have a factory certification or a test mark. Do not use the grinding wheel if any defects such as quality issues, hardness, particle size, or cracks in appearance are found before installation.

4. The grinding wheel machine is securely mounted, with no loose or damaged screws.

5. The sizes of the abrasive wheel flanges are consistent, with their diameters not being less than 1/3 of the abrasive wheel diameter. The abrasive wheel and deck spacing                  Flexible gaskets available.

6. When tightening the nut, use a specialized wrench. Do not over-tighten it, and strictly avoid hammering with hard objects to prevent the grinding wheel from cracking.

7. After the grinding wheel is installed, a protective guard must be fitted.

8. When starting a new abrasive wheel, do not rush. First, perform a point check, and only after a trial run of 5 to 10 minutes can it be used. Trainees are not allowed to change the abrasive wheel.
