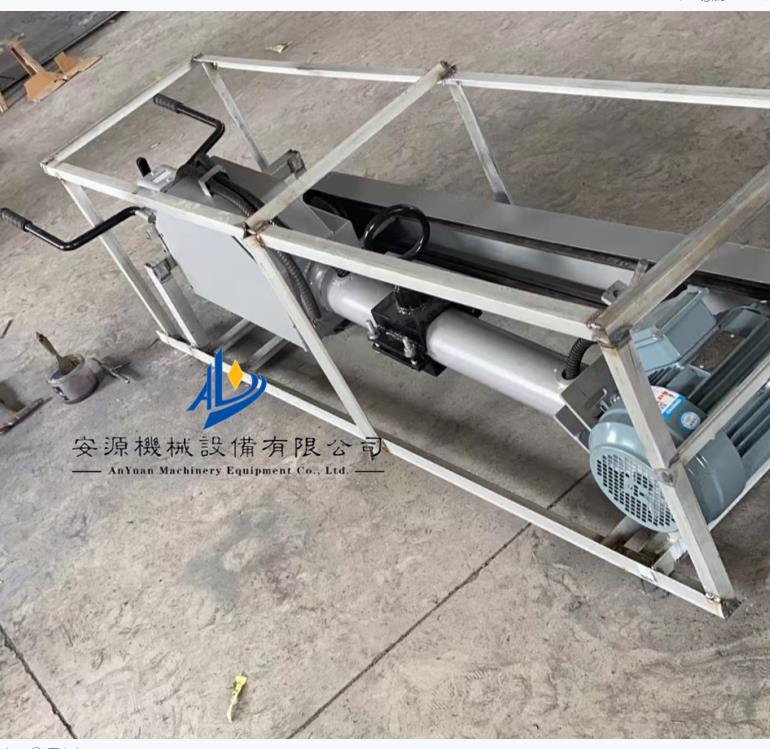

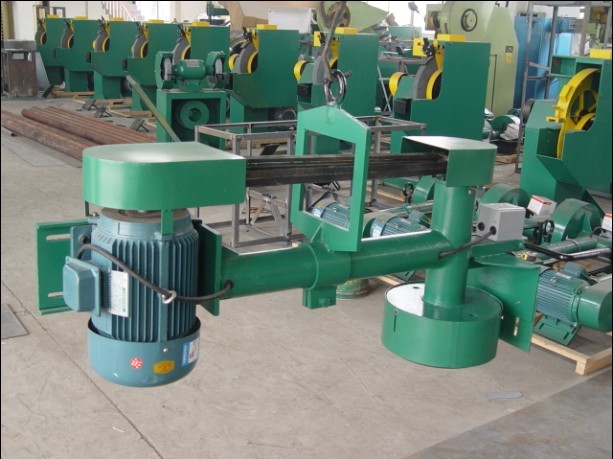

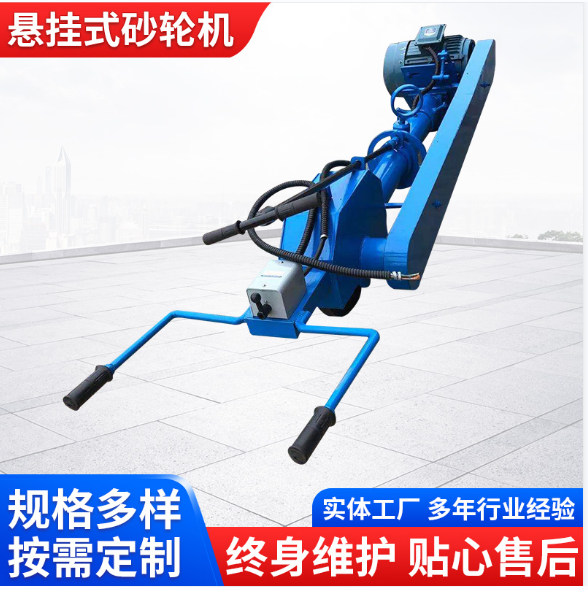

Overhead abrasive wheel machine Grinding casting ingots and casting parts with a suspended grinding wheel machine Anyuan Grinding Wheel Machine
Hanging type grinding wheel machine, also known as suspended grinding wheel machine, mainly used for grinding stainless steel, titanium ingots, alloy steel, special steel, steel ingots, and various metal cracks, carbide inclusions, burrs, etc.
Check the hanging item for stability before use. Purpose: grinding stainless steel, titanium ingots, and alloy steel.
Operation Procedure:
Check if the hanging object is secure before use.
2. Upon first use, observe if the motor reverses. Normally, the grinding sparks should be shot towards the motor; otherwise, immediately shut off the machine to check if the circuit is functioning properly.
3. After the grinding wheel machine is started, it should be allowed to rotate stably before grinding begins. If the machine is jumping significantly, it should be stopped and adjusted promptly.
4. Avoid applying excessive force during grinding.
5. Select a grinding wheel according to the instruction manual, matching the rotational speed of the machine's main shaft.
6. New grinding wheels must have a factory certificate of compliance or inspection and test mark. Do not use the wheel if defects such as quality issues, hardness, grain size, or cracks in appearance are found before installation.
7. When installing the abrasive wheel, the clearance between the inner hole of the wheel and the main shaft should not be too tight. It should be adjusted according to the technical requirements for loose fit, generally within 0.05 to 0.10 millimeters.
Operating Principle:
Upon equipment startup, the grinding wheel and dust collector activate simultaneously. The dust particles generated from the workpiece grinding are drawn into the sedimentation chamber by the negative pressure of the fan. Large and heavy particles of dust fall directly into the ash drawer, while fine dust is carried by the air flow into the filter box. As it passes through the filter bags, the dust adheres to the surface. The purified gas then flows through the fan into the clean room, and after sound absorption, it is discharged into the atmosphere. After operating for a period and shutting down, the dust cleaning motor automatically starts to vibrate and clean the filter core, shaking off the dust adhered to the filter core into the ash collection (or unloading) disk. The vibration time is adjustable.
