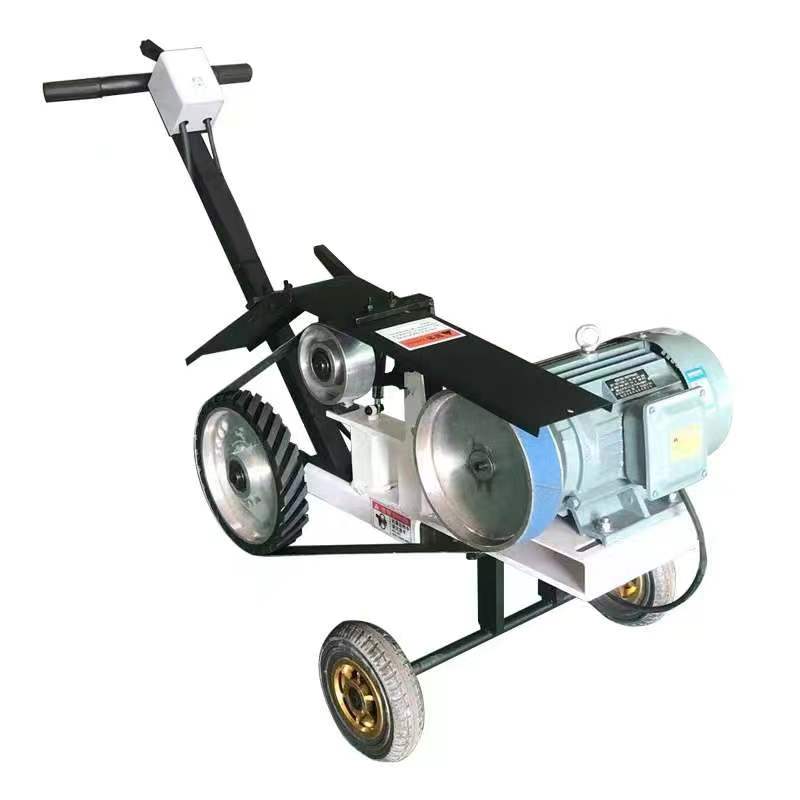

Flat Grinding Machine Push-Type Belt Sander 2100*75 Weld Seam Orange Peel Grinding Machine
Composed mainly of the drive mechanism, sanding belt tensioning mechanism, contact wheels (grinding wheels), brackets, legs, casters, sanding belts, hand push rods, etc. The motor transmits power directly to the drive wheel, which drives the sanding belt to rotate at high speed. The sanding belt is tensioned through the tensioning mechanism, and grinding is performed using the contact wheels. Depth adjustment devices are set on both sides of the contact wheels to control the grinding depth, ensuring that the weld seam is flattened without damaging the base material.
Primarily used for grinding flat joint welds, also suitable for polishing flat surfaces.
Main Technical Parameters:
1. Sanding Belt Specifications (Width): 150mm
2. Sanding Belt Grain Size: 36-320#
3. Belt speed: 33 m/s
4. Motor Power: 4 kW, Speed: 2880 rpm
5、Overall Weight:120kg
Machine Features: Grinding large workpiece weld seams/Surface As a shipyard/Boiler factory |
· Suited for grinding steel plates/Carbon steel/Alloy steel/Malleable Iron/Non-ferrous metals/Copper Components/Aluminum Components/Timber/Stone/Glass and other non-metallic materials。 · Shipyard, boiler factory, large steel plate welding factory, cast steel/Cast Iron/Casting copper factory grinding, deburring, and polishing machines. · |
