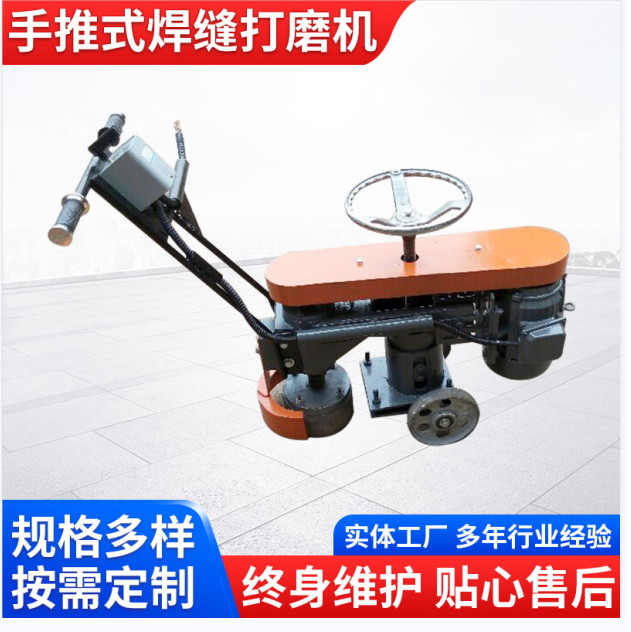

Steel Plate Pitting Sanding Belt Machine, Flat Surface Rust Removal Sanding Belt Machine, Push-Type Weld Seam Sanding Machine

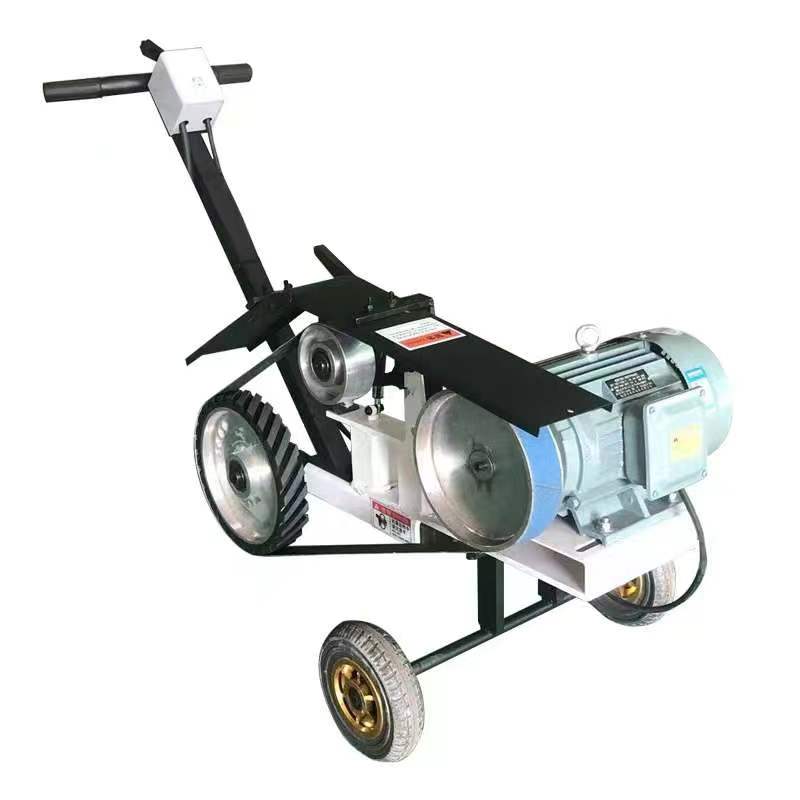

Handheld sanding belt machine, flat steel grinding machine Motor Power 32 kW Motor Speed100 RPM

Features: Grinding large workpiece welds, surface

Suitable for grinding steel platesCarbon steel / alloy steel / malleable iron / non-ferrous metals / copper parts / aluminum parts / wood / stone / glass, etc., and other non-metallic materials.

Shipyard, boiler factory, large steel component welding factory, cast steelCast Iron/Cast Copper Foundry Grinding, deburring, and polishing machines.

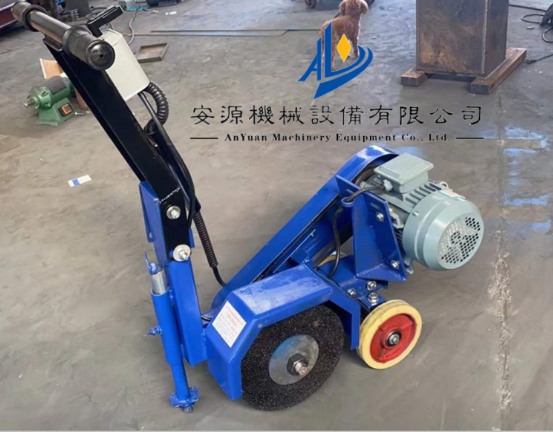

Brand:Anyuan

Model：2100*75

Specification: Part Diameterφ500-φ2500 mm

Product Alias:Flat polishing

Application: Internal and external surface polishing and buffing for caps

 Principle of Machining Centers

By friction with the workpiece surface using an abrasive wheel or polishing wheel, one canEnd caps interior and exteriorThe surface and welds are ground and polished to enhance the surface roughness of the workpiece.

2. The machine tool structure consists of the mechanical and electrical control components.

3. Head finishing polishing

3.1 Head Flange Polished Surface Setting: The internal surface curve of the head can be roughly divided into three sections: front, middle, and rear, which is controlled by three-speed sections.

3.2 The line control box provides a point-to-point operation function in all four directions (up, down, left, and right) during the head finishing process, facilitating the operator to approach the head, observe, and adjust the contact between the grinding wheel and the workpiece.

4. Basic Parameters

4.1 Polished Workpiece Dimensions: Workpiece Diameter φ500-φ2500 mm

4.2 Surface roughness Ra ≤ 0.25μm (achieved sequentially)

4.3 Production Efficiency: 9 square meters per hour.
