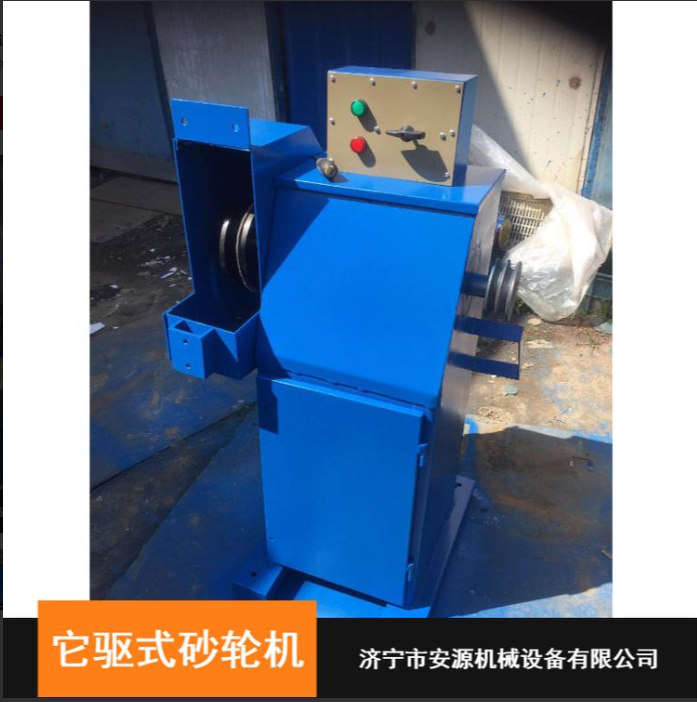

Diamond High-Speed Grinding Wheel Machine 7.5kw It Drive Diamond Polishing Machine Dust Extraction Grinding Machine

Grinders are used for sharpening cutting tools and removing burrs from machinery.

The difference between bench grinder and pedestal grinder:

Table Saw Sanding Wheel Diameter150~300mm; vertical grinding wheel machine, wheel diameter 200~400mm

The bench grinder is suitable for deburring, smoothing, and sharpening of small metal parts, as well as blade honing, and is widely used in mechanical manufacturing and home industrial settings.

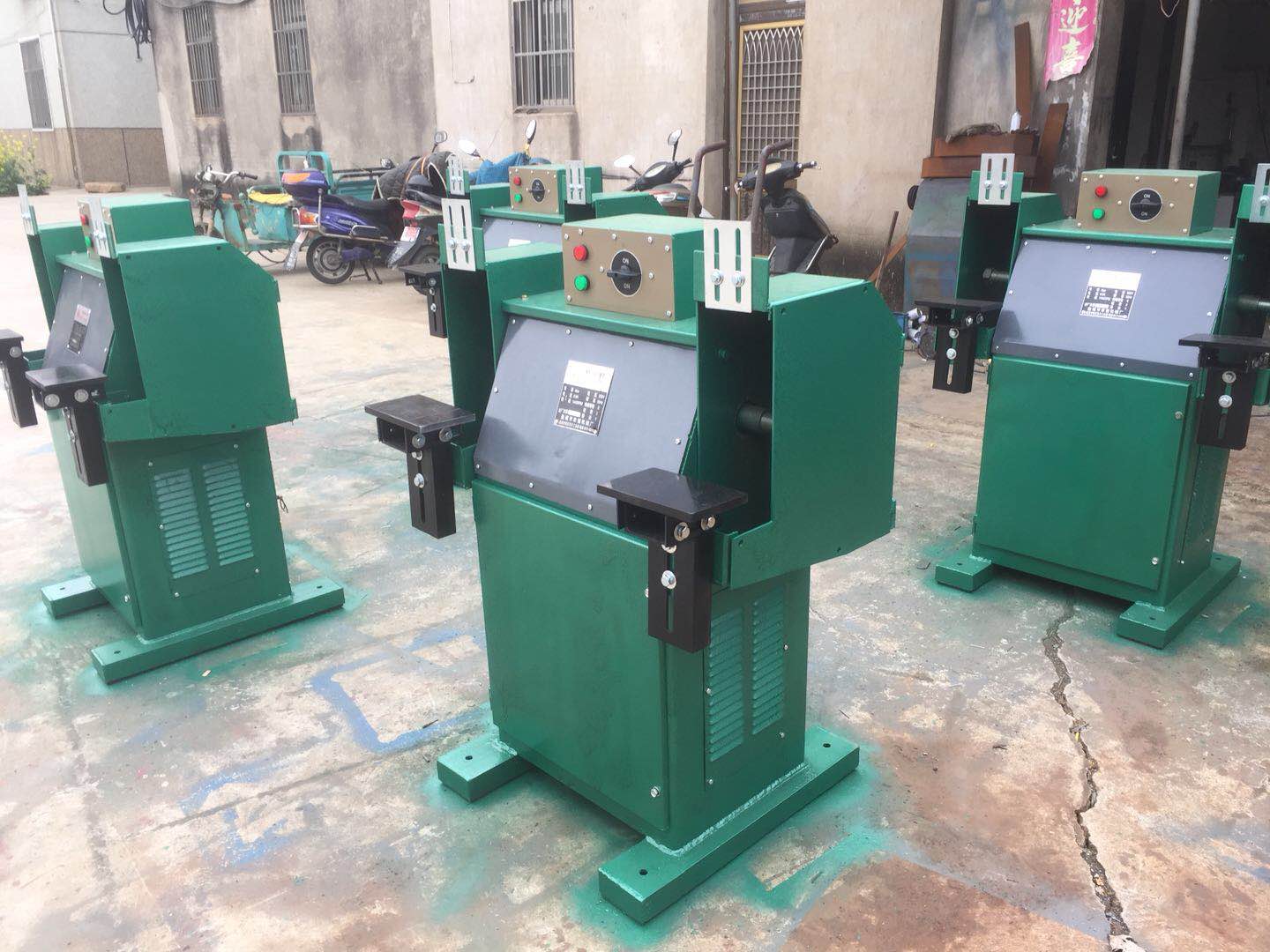

Vertical grinding wheels are suitable for deburring, smoothing, and sharpening of medium to large metal parts, as well as for blade sharpening of cutting tools. They are widely used in mechanical manufacturing and by small and medium-sized enterprises.

M30Type of vertical grinding wheel machine: Use and Maintenance

1. Bench grinder before use                  Please provide the Chinese content to be translated.A megohmmeter above 500 volts to measure its insulation resistance, with a value not less than 0.5 megohms.

2. Before use, the parts of the grinding wheel machine should be thoroughly inspected for any damage or cracks due to transportation, and check if there are any loose fasteners. If so, they should be tightened.  Ensure tight rotation. Pay special attention to the absence of cracks in the grinding wheel. Gently tap with a wooden mallet; a clear, crisp sound indicates it is safe to use.

3. Prior to use, the grinding wheel machine should be manually rotated to check for smooth and easy movement, and closely listen for any rubbing or grinding sounds.

4. Wheel grinder rotation direction                  In alignment with the rotation direction sign.
