Grinding Belt for Steel Plate Burrs, 2100*100 Push-Type Belt Sander, Spatter Weld Seam Refining Machine
Machine Features: Grinding large workpiece weld seams/Surface As a shipyard/Boiler factory |
· Suitable for grinding steel plates/Carbon steel/Alloy steel/Malleable Iron/Non-ferrous metals/Copper Components/Aluminum Components/Timber/Stone/Glass and other non-metallic materials。 · Shipyard, boiler factory, large steel piece welding factory, cast steel/Cast Iron/Casting copper factory with grinding, deburring, and polishing machines. · Time-saving.High efficiency. Powerful aluminum shell motor, Protective Cover,Prevent sparks from flying out. · Machine front features wheel grinding,The upper cover can be opened for long workpiece grinding. · The machine can adjust the grinding depth up and down, and perform workpiece grinding at various angles. · The sanding belt width can be customized to meet customer requirements. Alternatively, it can be single-machine adjustable.(Available for customization to meet customer requirements) |

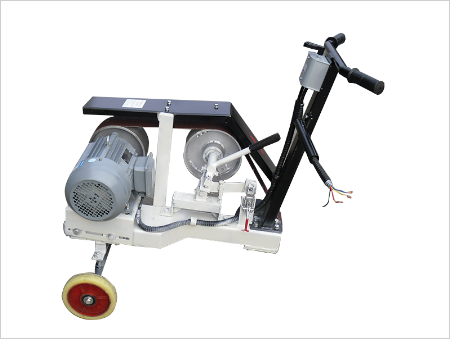

The machine is primarily composed of the drive mechanism, sand belt tensioning mechanism, contact wheel (grinding wheel) system, bracket, support foot, caster wheel, sand belt, hand push rod, etc. The motor directly transmits power to the drive wheel, which drives the sand belt to rotate at high speed. The sand belt is tensioned by the tensioning mechanism, and grinding is performed using the contact wheel. Depth adjustment devices are set on both sides of the contact wheel to control the grinding depth, ensuring that the weld can be flattened without damaging the base material.
Primarily used for grinding flat seam welds, also suitable for polishing flat surfaces.
Key Technical Parameters:
1. Sanding Belt Specifications (Width): 150mm
2. Sanding Belt Grain Size: 36-320#
3. Belt Speed: 33 m/s
4. Motor Power: 4 kW, Speed: 2880 rpm
5、Overall Weight:120kg
