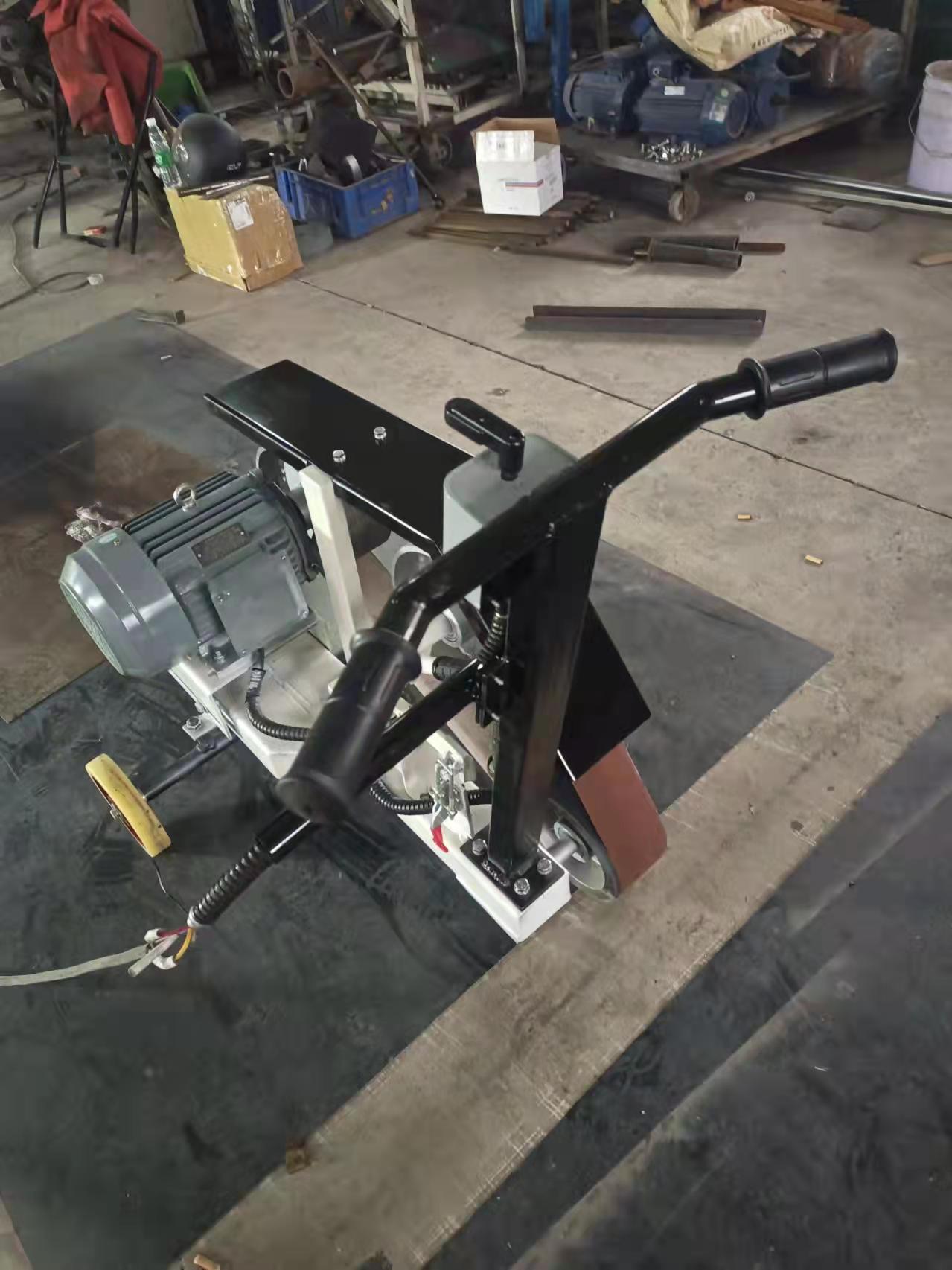

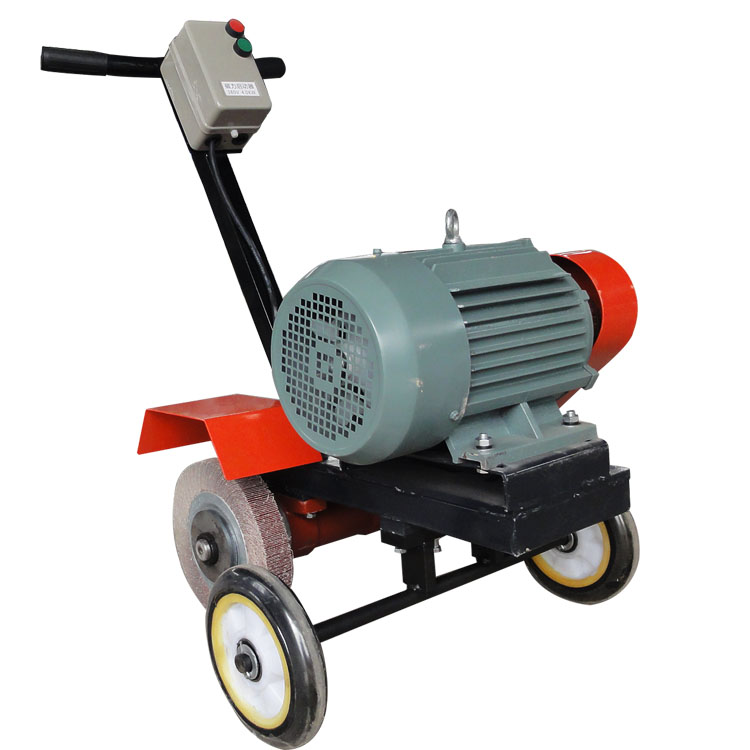

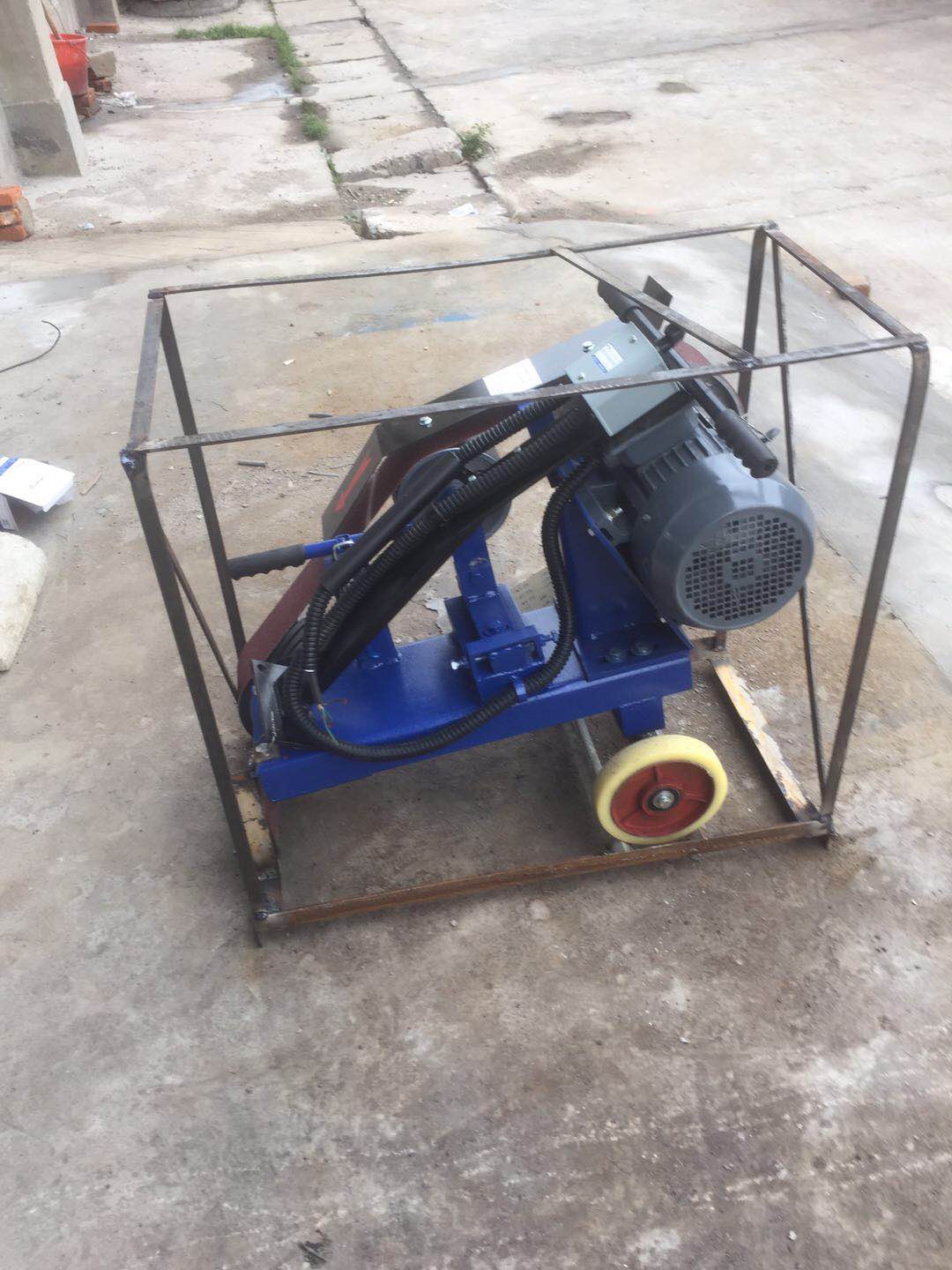

Handheld Steel Plate Weld Seam Polishing Machine, Deburring and Sanding Belt Machine, Hand-Pushed Grinding Wheel Machine
Applicable for metal cutting and non-metal cutting industries,Grinds flat, concave, cylindrical, removes burrs, flash, casting sprues, and chamfers. This product is suitable for businesses with high environmental requirements for operation, and its dust collection effect is in98%Above.
Model: M3340 16"
Grinding Wheel Size: Φ400×40×Φ127mm
Grinding, deburring, cleaningThe dust-extracting grinding wheel machine is primarily used in industrial and mining enterprises for sharpening cutting tools, and can also be used for grinding, deburring, and cleaning of small parts.
2 Low environmental requirements.Dust Extraction Grinding Wheel MachineCan be used at altitudes of not more than1000 meters, surrounding air relative humidity not exceeding 90% High environmental temperature not exceeding40°C wet tropical region.
High dust removal rate This unit employs a bag dust collector, achieving dust removal efficiency of over 98% with dust concentration less than 10 mg/m³. Complies with the Ministry of Labor and Human Resources and the Ministry of Environmental Health of the country. Regulations for excellent vacuuming performance Labor environment Operators are protected from dust exposure.
4 For indoor use only. Dustless grinding wheels are not resistant to chemical corrosion and must not be used outdoors.
Section II: Technical Specifications of the Grinding Wheel Machine
New model | MC3015 | MC3020 | MC3025 | MC3030 | MC3035 | MC3040 |
Power | 0.25 | 0.5 | 0.75 | 1.5 | 1.75 | 2.2 |
Frequency | 50 | 50 | 50 | 50 | 50 | 50 |
Current | 1.7 | 1.24 | 1.7 | 3.4 | 3.95 | 4.9 |
RPM | 2850 | 2850 | 2850 | 1420 | 1440 | 1430 |
Efficiency | 67 | 71 | 75 | 79 | 80 | 81 |
Section 3: Sanding Machine Operating Instructions
Grinder before use UsedThe megohmmeter measures the insulation resistance above 500 volts, with a value not less than 0.5 megohms.
2. Thoroughly inspect the grinding wheel before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the grinding wheel. Gently tap it with a wooden mallet; a clear, crisp sound indicates the item is in good condition.
3.Dust Removal Grinding Wheel MachineBefore use, turn the shaft extension by hand to check for smooth and quick movement, and listen carefully for any rubbing sounds.
4. The direction of rotation for grinding wheels and fans should match the direction indicator.
