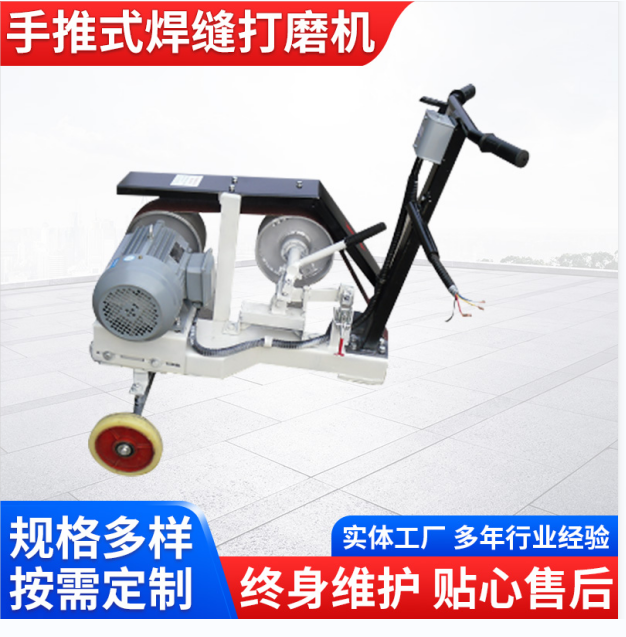

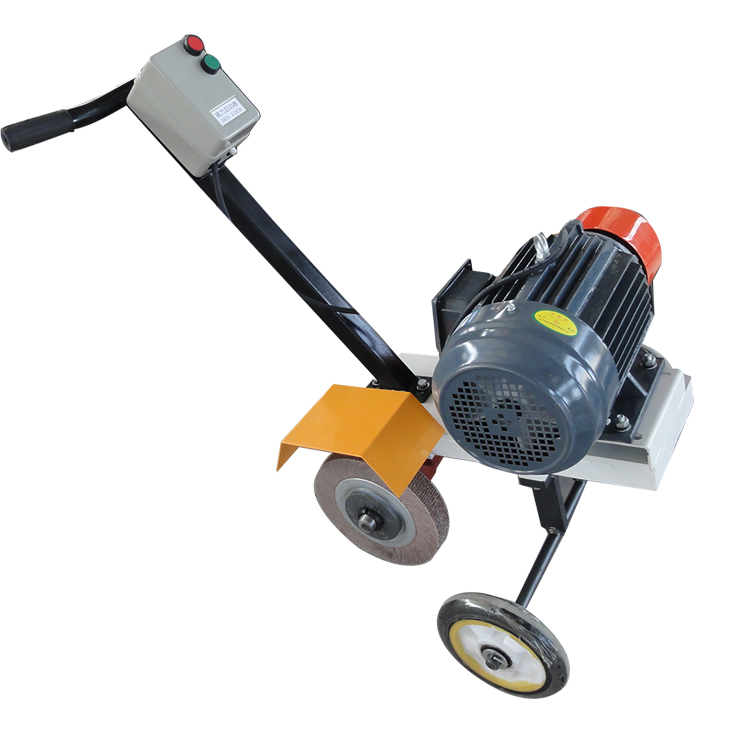

Rough Edge Sanding Belt Machine, Push-Type Multi-functional Polishing and Sanding Machine

Grinder Structure: It primarily consists of a base, abrasive wheel, electric motor or other power source, bracket, protective cover, and water feed unit. The abrasive wheel is set on the top surface of the base, which internally provides space for the power source. The power source drives a reducer, which has a drive shaft extending through the base top for securely attaching the abrasive wheel. The base has a concave water collection area at the bottom corresponding to the abrasive wheel, which extends outward.   The water feed device is located above the side of the grinding wheel, featuring a compartment for containing water and an outlet on the side corresponding to the grinding wheel. The overall transmission mechanism is highly simplified and complete, making the grinding process more convenient, smooth, and enhancing the overall grinding efficiency of the grinding wheel machine. The grinding wheel is fragile and operates at a high speed, so strict adherence to the usage instructions is mandatory.

Applicable for metal cutting and non-metal cutting industries,Features include grinding flat surfaces, convex and concave surfaces, wheel grinding, deburring, removal of casting sprues, and chamfering. This product is suitable for use in enterprises with high environmental requirements for work, offering excellent dust removal efficiency.98%Above.

Parameter Model:

    Model:   M3340 16"

 Grinding Wheel Size: Φ400×40×Φ127mm

   Electricity  Pressure: 380V

 Input Power: 3000 W

 No-load Speed:1420min-1

   Hairy  Weight:  168kg

 Packaging Dimensions:820×650×1140mm Wooden Crate
