Steel mill and shipyard use M3130 push-type grinding wheel machine for weld seam sanding belt polishing

Primarily used for shipbuilding, engineering, and bridge construction components.Weld Seam Grinding and Polishing Treatment，

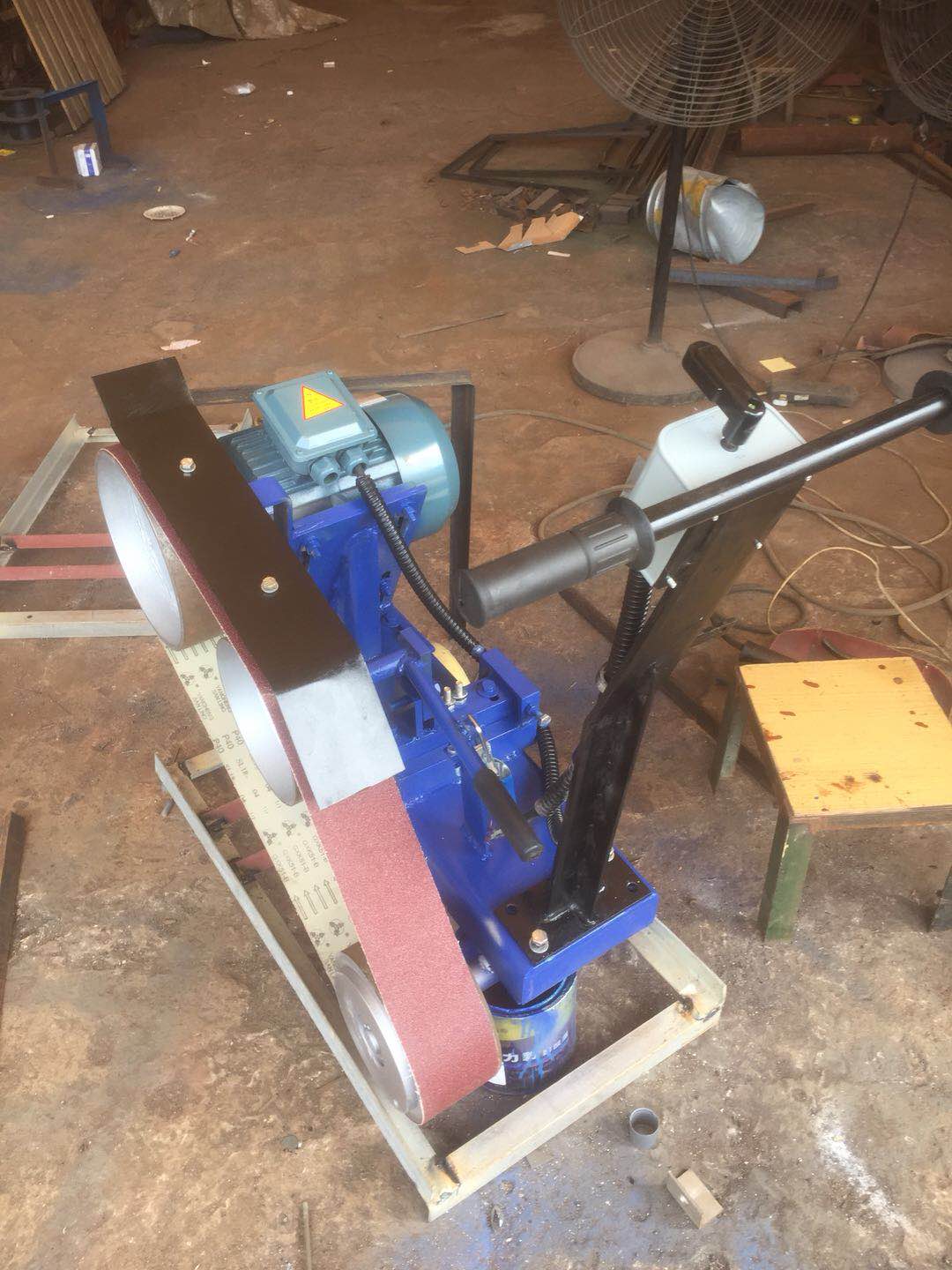

Handheld sanding belt machine, flat steel polishing machine Motor Power 32 kW motor speed100 RPM

Features: Grinding large workpiece welds, surface

Suitable for grinding steel platesCarbon steel / alloy steel / malleable iron / non-ferrous metals / copper parts / aluminum parts / wood / stone / glass, and other non-metallic materials.

Shipyard, boiler factory, large steel plate welding factory, cast steelIron Casting / Copper Casting Factory Grinding, deburring, and polishing machines.

   Time-savingHigh work efficiency.Brand:Anyuan

Model：2100*75

Specification: Part Diameterφ500-φ2500 mm

Product Alias:Flat polishing

Purpose: External and internal surface polishing and buffing for closures

 Principles of Machining Machinery

By friction between the abrasive wheel or polishing wheel and the workpiece surface, it canHead flanges interior and exteriorThe surface and welds are ground and polished to enhance the surface roughness of the workpiece.

2. The machine tool structure consists of mechanical and electrical control components.

3. Head Cap Polishing

3.1 Head Flange Polished Surface Setting: The internal surface curve of the head can be roughly divided into three sections: front, middle, and rear, which is known as three-speed control.

3.2 The line control box provides a point-by-point operation function in all four directions (up, down, left, right) during the sealing head polishing, facilitating the operator to approach the sealing head, observe, and adjust the contact between the grinding wheel and the workpiece.

4. Basic Parameters

4.1 Polished Workpiece Dimensions: Diameter φ500-φ2500 mm

4.2 Surface roughness Ra ≤ 0.25 μm (achieved sequentially)

4.3 Production Efficiency: 9 square meters per hour.
