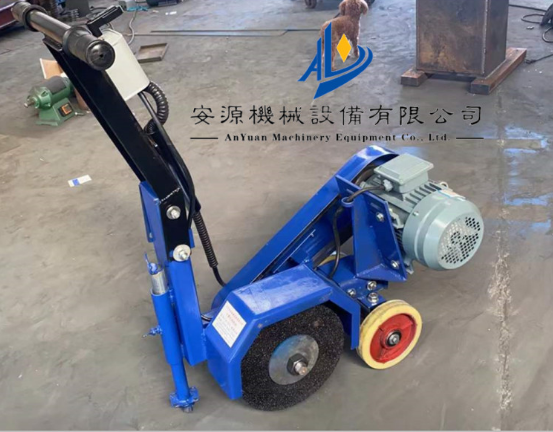

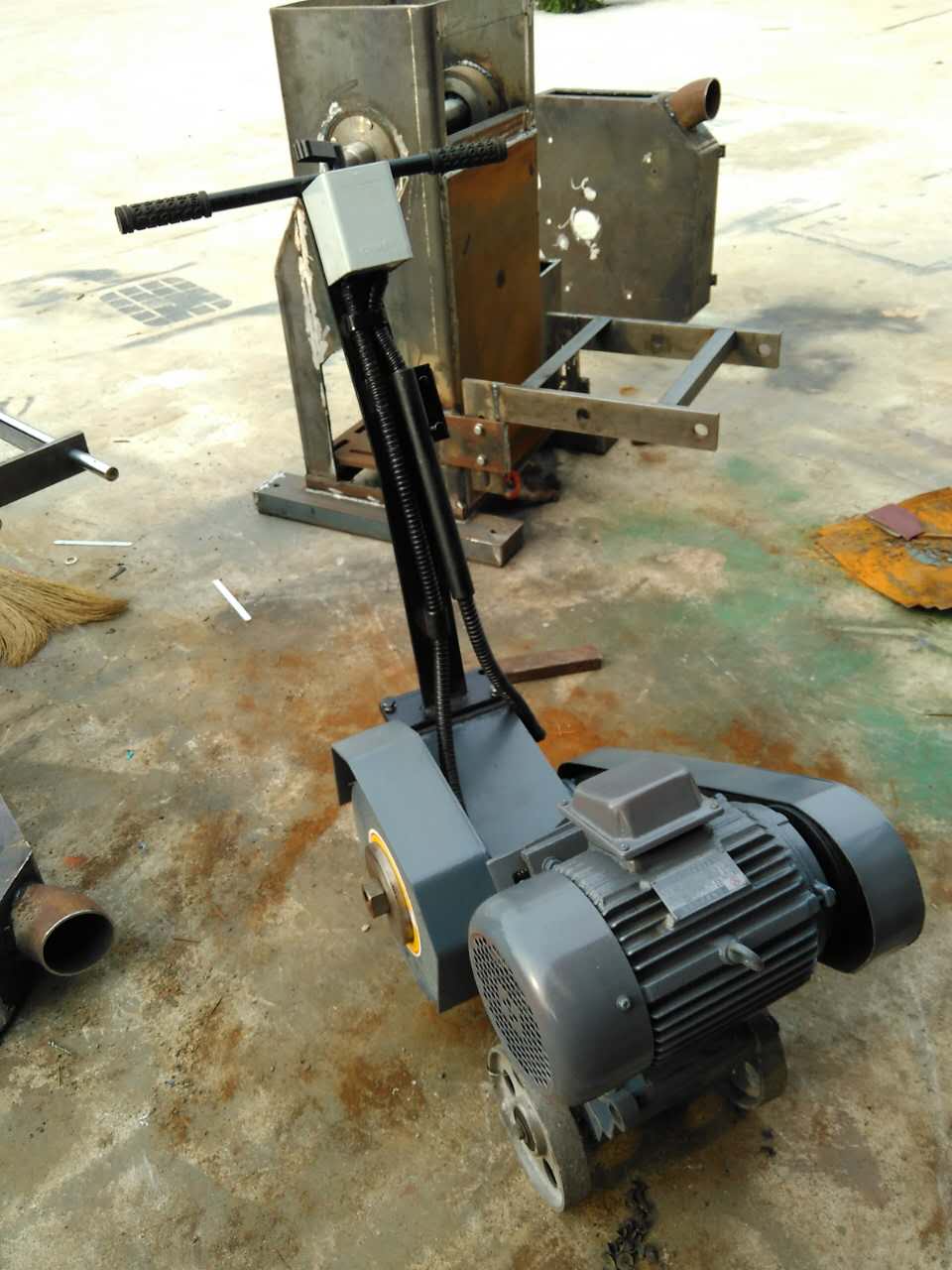

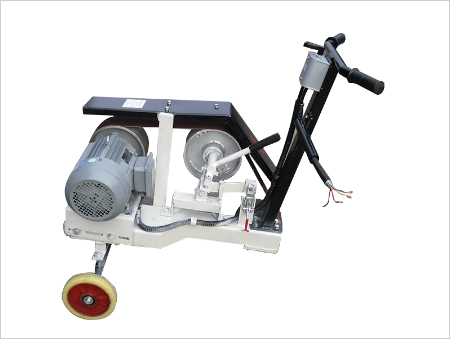

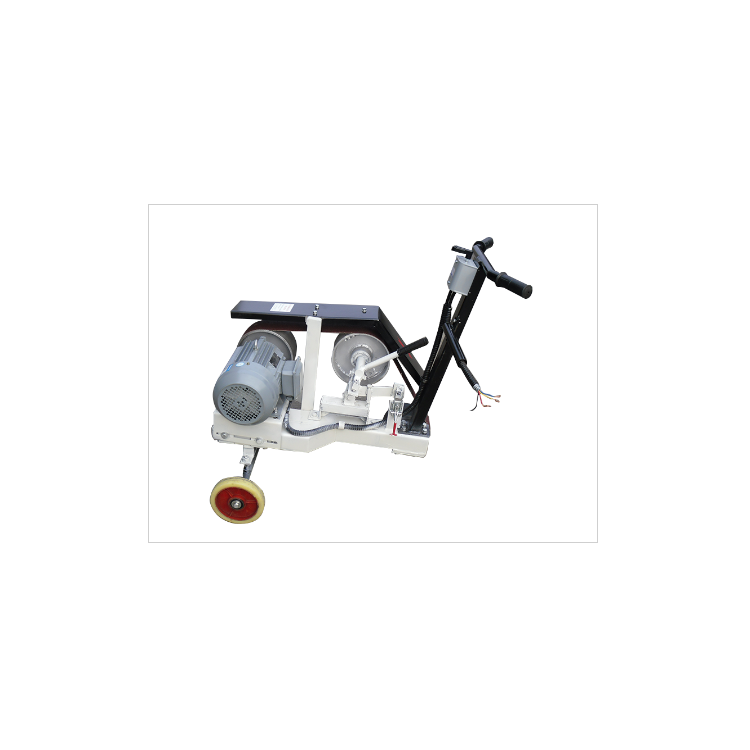

Shipyard push-belt sanding machine, steel plate weld bead grinder, electric disc sander
Handheld sanding belt machine, flat plate steel grinder Motor Power 32 kW Motor Speed100 RPM
Features: Grinding large workpiece welds, surface
Appropriate for grinding steel platesCarbon steel / alloy steel / malleable iron / non-ferrous metals / copper parts / aluminum parts / wood / stone / glass, etc., and other non-metallic materials.
Shipyard, boiler factory, large steel welding factory, cast steelIron Casting / Copper Casting Factory Grinding, deburring, and polishing machines.
Brand:Anyuan
Model：2100*75
Specification: Workpiece Diameterφ500-φ2500 mm
Product Alias:Flat polishing
Application: Inner and outer surface polishing and buffing for caps
Principles of Machining Machines
By friction between the abrasive wheel or polishing wheel and the workpiece surface, one canEnd caps interior and exteriorThe surface and welds are ground and polished to enhance the surface roughness of the workpiece.
2. Machine tool structure consists of mechanical and electrical control components.
3. Head finishing polishing
3.1 Head Flange Polished Surface Setting: The inner surface curve of the head can be roughly divided into three sections: front, middle, and rear curves, which is referred to as three-speed control.
3.2 The line control box provides a point-to-point operation function in all four directions (up, down, left, and right) during the head finishing process, facilitating the operator to approach the head, observe, and adjust the contact between the grinding wheel and the workpiece.
4. Basic Parameters
4.1 Polished Workpiece Dimensions: Diameter φ500-φ2500 mm
4.2 Surface roughness Ra ≤ 0.25 μm (achieved sequentially)
4.3 Production Efficiency: 9 square meters per hour.
4.4 The workpiece rotation and horizontal feed are both variable frequency stepless speed control, further enhancing work efficiency.
4.5 Suitable for polishing materials such as abacuses, cloth wheels, and sisal wheels; nylon wheels can achieve surface texturing.
