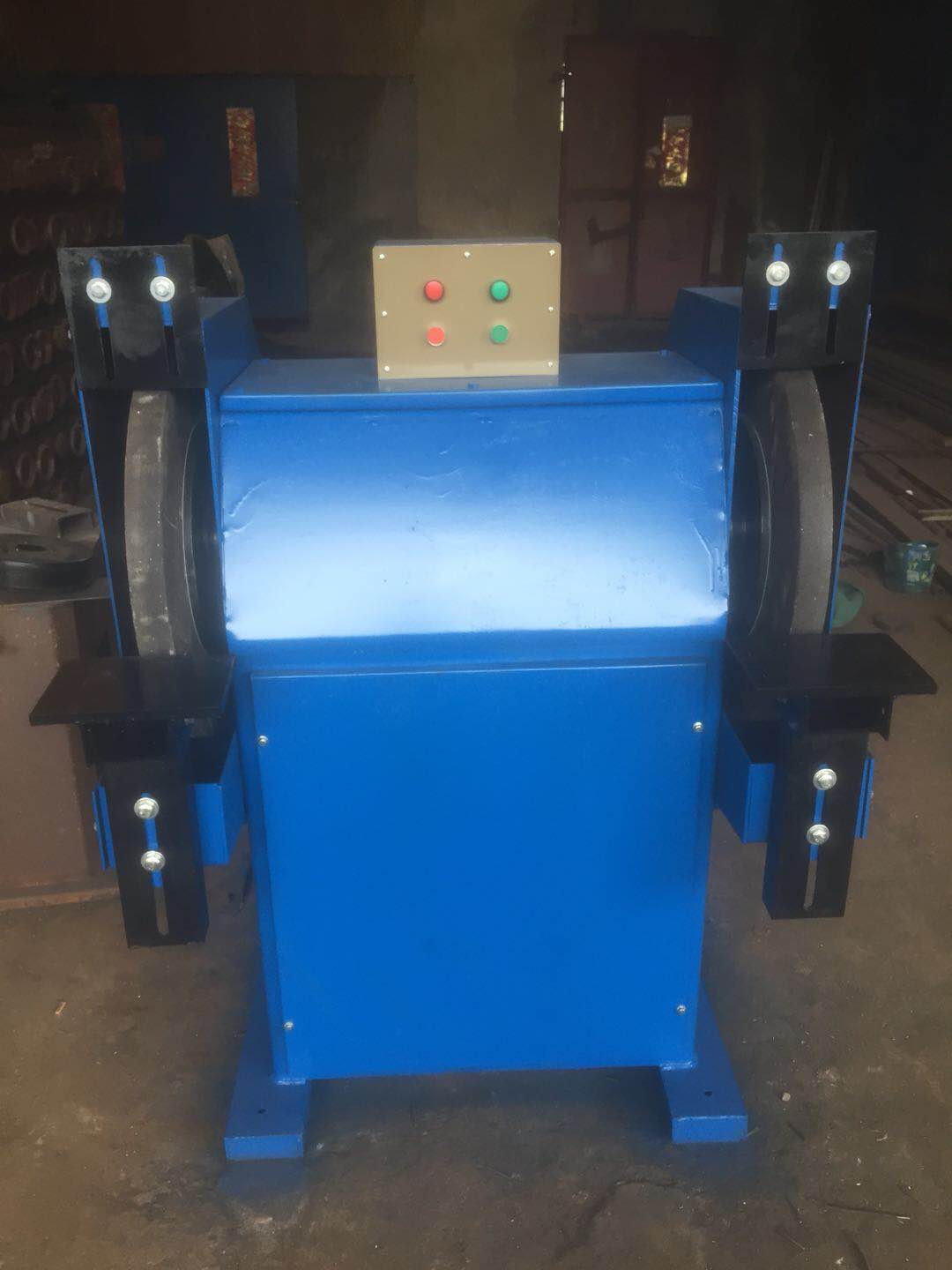

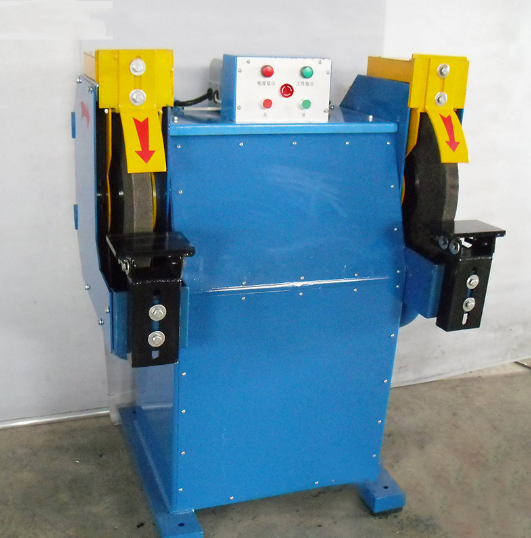

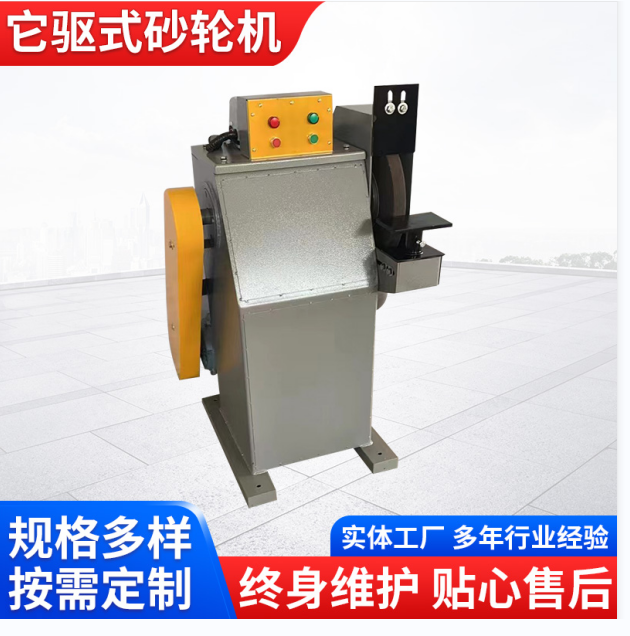

MT3040 Direct-Drive Grinding Wheel Machine, Cast Iron Grinding High-Speed Wheel Machine

 M30The type of floor-standing grinding wheel machine features an attractive appearance, simple structure, ease of use, and excellent performance, making it a commonly used equipment in general industrial and mining enterprises.

 1.Floor-mounted grinding wheels are primarily used by general mining and industrial enterprises for grinding ordinary small parts, deburring, and cleaning castings.,Also suitable for resharpening common cutting tools.

 2.The pedestal grinding wheel is not resistant to chemical corrosion and should not be used outdoors.

2.Utilization and Maintenance

Grinder before use                  Please provide the Chinese content you would like translated into American English.Megohmmeters above 500 volts are used to measure the insulation resistance, which must be no less than 0.5 megohms.

2. Before use, the parts of the grinding wheel machine should be thoroughly inspected for any damage or cracks due to transportation, and for loose fasteners. If any are found, they should be tightened accordingly.  Ensure proper rotation. Pay special attention to the absence of cracks in the grinding wheel. Gently tap with a wooden mallet; a clear, crisp sound indicates it's safe to use.

3. Before use, the grinding wheel machine should be manually rotated to check for smooth, easy movement, and to listen for any grinding or rubbing sounds.

4. The sanding machine and fan should rotate in the direction indicated by the rotation direction indicator.

5. Do not allow the workpiece to collide with the grinding wheel during operation.                  Gradually apply pressure to prevent the grinding wheel from being impacted, thereby avoiding an explosion and potential accidents.

6. The abrasive wheel machine guard shall not be removed except for replacing the abrasive wheel and maintenance. Removal is strictly prohibited under normal circumstances.                                                                      。

7. Two grinding wheels used on a medium-grit wheel machine, with a difference in their wear diameter.            No larger than20%。

8. Replace with a new grinding wheel. Ensure the wheel is balanced during installation, and the soft pad between the wheel and the mounting plate should be properly seated. Do not tighten the nut too much to prevent the wheel from cracking.            After                  Cover the protective cover.

Lubricating grease in bearings should be replaced approximately every six months.

10. The M3030, M3035, and M3040 vertical grinding wheels are equipped with a worktable. When using the worktable, ensure that its supporting surface is at the same height as the motor's shaft centerline. After adjusting the height of the worktable,                  Secure properly.

11. During storage, the grinding wheel machine should not be exposed to dampness or freezing to prevent cracking of the insulating surface, which may affect the normal operation of the machine.
