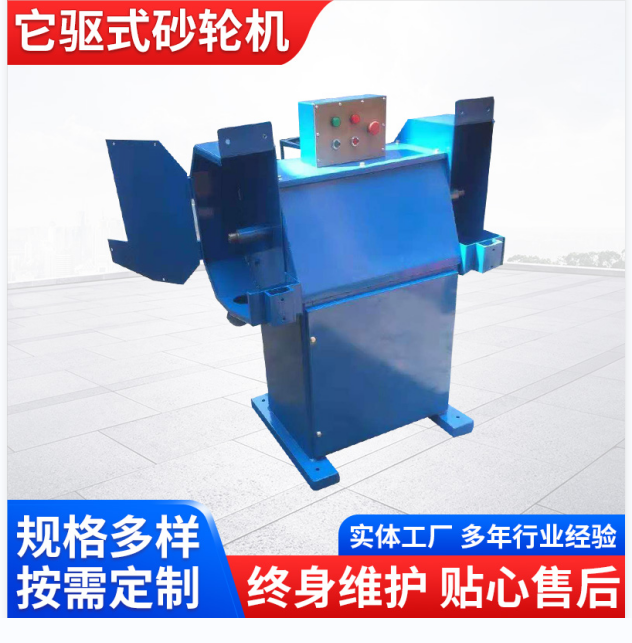

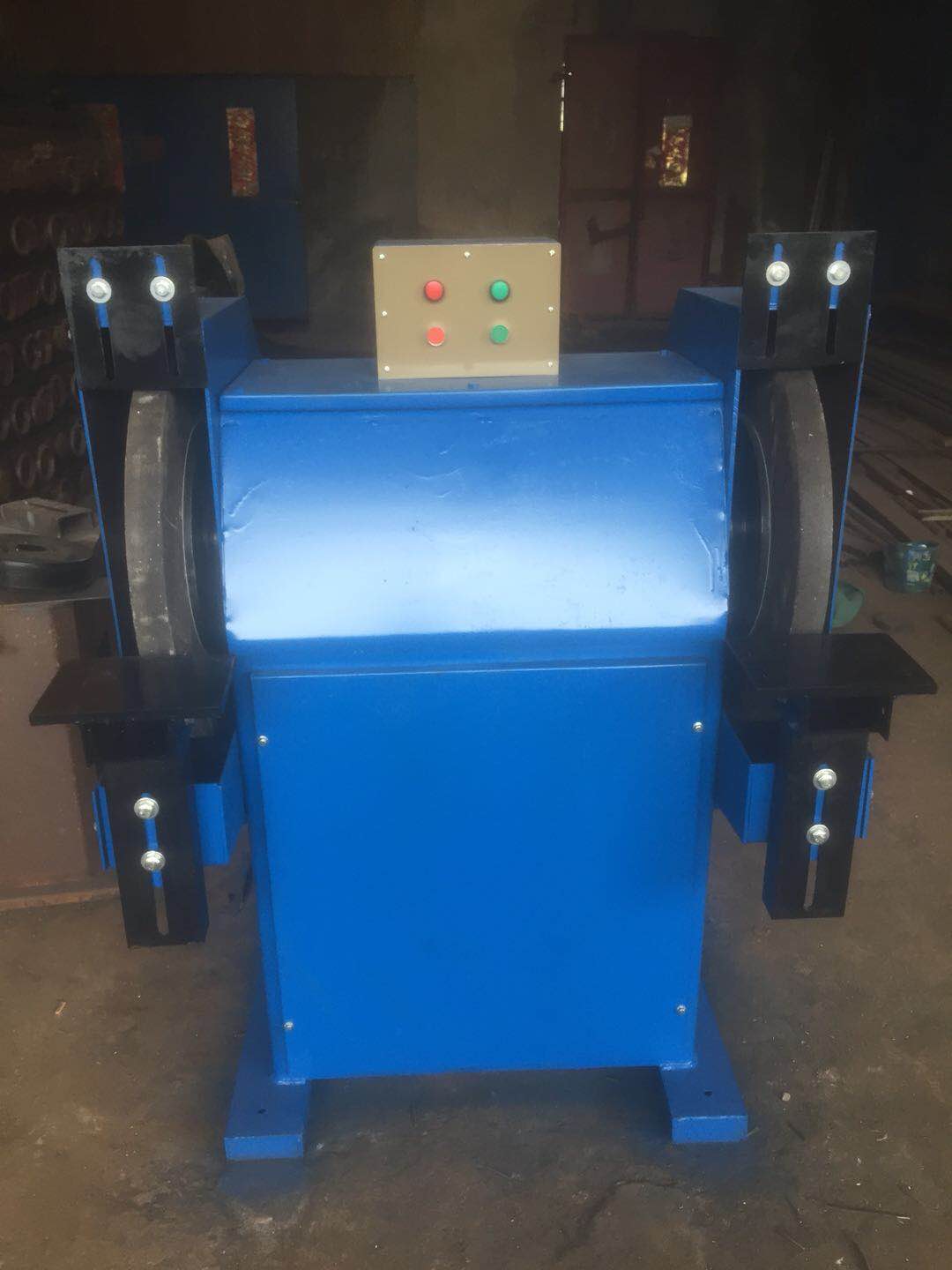

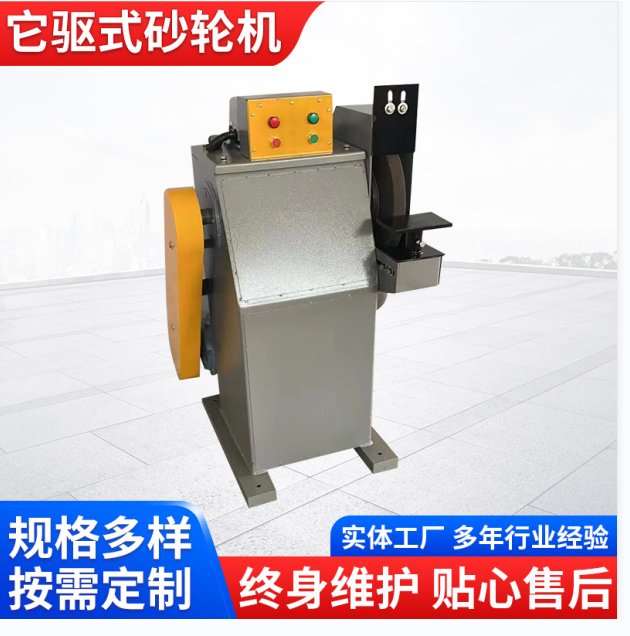

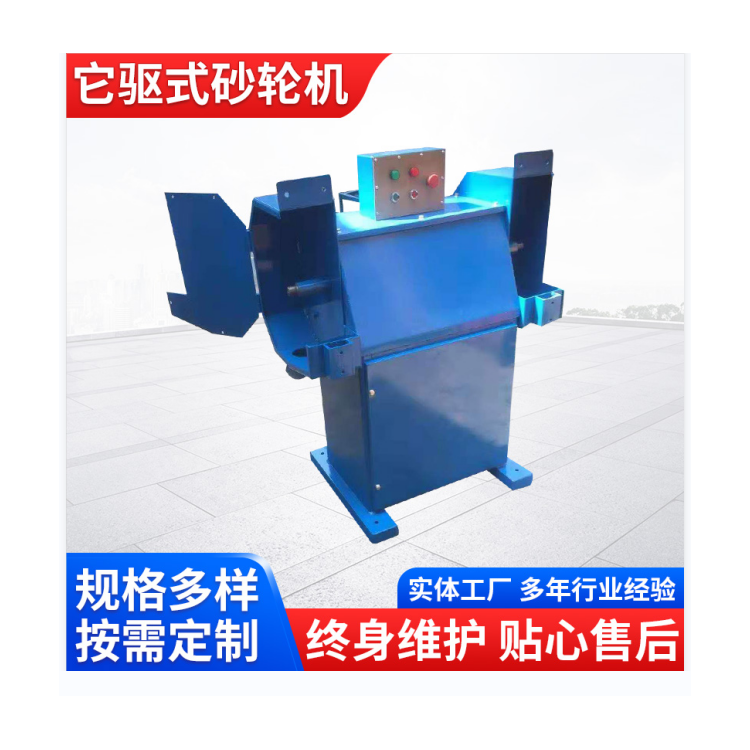

MT3040 Single/Double Station Diamond Grinding Wheel Polishing Machine - Drive Type High-Speed Grinding Wheel Machine
1. Grinding, deburring, and cleaning. Dust-extraction grinding wheels are primarily used in industrial and mining enterprises for sharpening cutting tools and can also be used for grinding, deburring, and cleaning of small general parts.
Grinding wheels are commonly used equipment for honing various tools and implements.
Grinder machine, primarily consisting of a base, abrasive wheel, electric motor or other power source, bracket, guard, and water supply, among other components. The abrasive wheel is mounted on the top surface of the base, with the base internally accommodating space for the power source. The power source is connected to a reducer, which has a drive shaft extending through the top of the base to securely attach the abrasive wheel. The bottom position of the base corresponding to the abrasive wheel features a recessed water collection area, which extends outward.The water feed is located above one side of the grinding wheel, featuring a compartment for holding water liquid, and a water outlet on the side corresponding to the grinding wheel. It boasts a highly streamlined and sophisticated overall transmission mechanism, making the grinding process more convenient and smooth, and enhancing the overall efficiency of the grinding wheel machine.
Explosion-proof grinding wheels include protective covers and other components, where the protective cover is composed of circumferential components and two side components. Its features are: protective devices are installed on the protective cover, which include adjustable obstacles and an adjusting mechanism for obstacle positions. The adjustable obstacle can be positioned tangentially close or nearly tangent to the rotating direction of the grinding wheel, or close to the tangential direction. The obstacle, together with other parts of the protective cover, forms an almost closed barrier around the grinding wheel. During operation, the adjusting mechanism for obstacle positions can make corresponding adjustments based on the wear condition of the grinding wheel to maintain the relative position between the obstacle and the grinding wheel; the aforementioned tangential refers to: the effective working surface of the adjustable obstacle is tangent to the outer circumference of the grinding wheel; the aforementioned close to tangential refers to: although separated, it is close to the outer circumference of the grinding wheel and nearly tangent, or the effective working surface of the adjustable obstacle intersects with the outer circumference of the grinding wheel, with the angle at the center of the grinding wheel's outer circumference corresponding to the chord intersection.α is less than 110 degrees; the "close proximity" mentioned refers to: the distance between them being less than one-seventh of the nominal diameter of the grinding wheel. The explosion-proof grinding wheel machine employs a double-layer protection device, which automatically opens the inner protective cover when the grinding wheel explodes unexpectedly or experiences significant vibration, blocking the flying fragments of the grinding wheel, and at the same time, cutting off the power supply.
