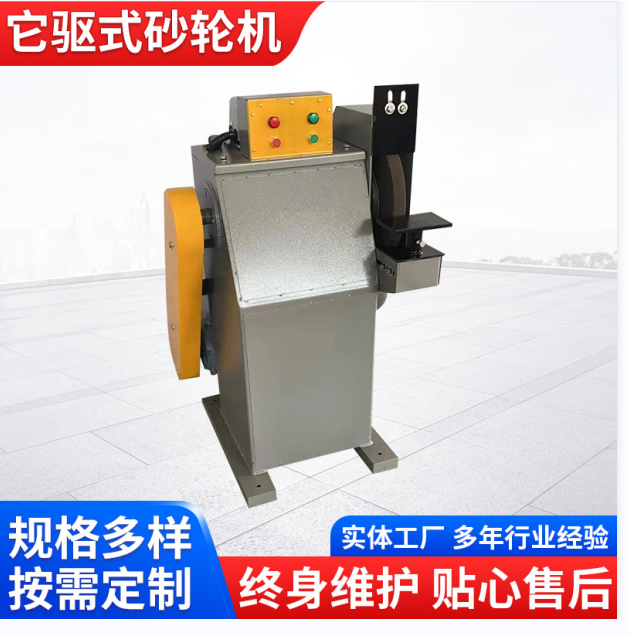

M3040 Casting Factory Burr Removal Diamond Grinding Wheel Machine, it drives single-head grinding wheel machine.
1.The grinding wheel machine must rotate in the correct direction, allowing the chips to fly away from the wheel downwards only. 2After the grinding wheel machine is started, grinding should only be performed once the machine has rotated smoothly. If the grinding wheel machine is bouncing significantly, it should be stopped and adjusted immediately.3The abrasive wheel machine bracket and abrasive wheel should be kept3mmDistance must be maintained to prevent workpieces from piercing and causing accidents.4Stand to the side of the grinding wheel during operation and avoid excessive force.5Select a grinding wheel that matches the spindle speed of the grinding machine according to the instructions provided.6The newly acquired grinding wheels must have a factory certification or inspection mark. Do not use the wheel if any defects such as quality, hardness, grain size, or cracks in appearance are found before installation.7When installing the grinding wheel, the clearance between the inner hole of the grinding wheel and the main shaft should not be too tight. It should be adjusted according to the technical requirements for loose fit, generally controlled at0.05?/FONT>0.10Within millimeters.8The grinding wheel must be equipped with flanges on both sides, with a diameter not less than one-third of the grinding wheel's diameter. A gasket should be properly placed between the grinding wheel and the flange.9When tightening the bolt, use a specialized wrench. Do not overtighten, and strictly avoid using a hard object for hammering to prevent the sandwheel from cracking.10After the grinding wheel is installed, the protective cover,挡板, and bracket should be attached. The gap between the挡板and bracket and the grinding wheel should be maintained at>3Within millimeters, and slightly below the center of the grinding wheel.11Don't rush when starting a new grinding wheel; first, make a slight movement to inspect, then proceed.5?/FONT>10After a minute trial rotation, it can be used.
