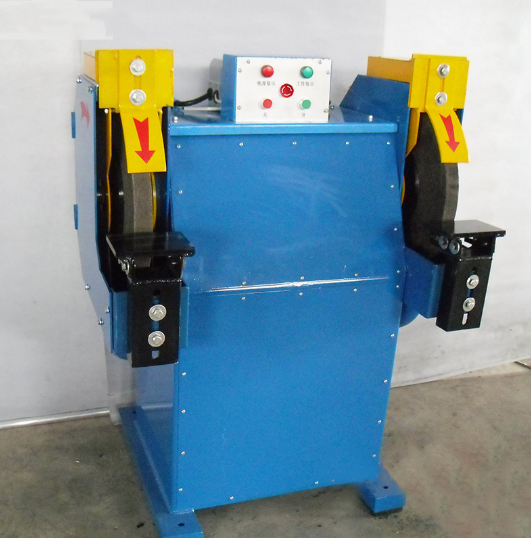

High-Speed Diamond Cast Iron Wheel Grinder, Manual Wheel Grinder, M3040 Electric Wheel Grinder
Applicable to metal cutting and non-metal cutting industries,Grinds flat surfaces, convex and concave shapes, wheel grinding, deburring, casting sprues, and chamfering. This product is suitable for businesses with high environmental requirements for work, offering excellent dust extraction.98%Above.
Parameter Model:
Model: M3340 16"
Grinding Wheel Size: Φ400×40×Φ127mm
Electricity Pressure: 380V
Input Power: 3000 W
No-load speed:1420min-1
Hairy Weight: 168kg
Packaging Dimensions:820×650×1140mm Wooden Crate
The dust-extracting grinding wheel is mainly used for deburring and sharpening of parts in factories, repair shops, laboratories, and homes. The difference in wear between the two wheels during use must not exceed:20%To avoid any imbalance. The grinding wheel machine operates strictly within the rated working hours..
Model | Specs | Main Motor | Vacuum Motor | Grinding Wheel Size | Net Weight | Gross Weight | Packaging Dimensions Dimensions: (Length x Width x Height) | ||||
Input Power (W) | Voltage (V) | RPM | Input Power | Voltage (V) | RPM | ||||||
M3320 | 8" | 500 | 380～ | 2840 | 320 | 380～ | 2840 | ф200×20×ф32 | 57 | 62 | 49.5×37.5×104 |
M3325 | 10" | 750 | 380～ | 2840 | 320 | 380～ | 2840 | ф250×25×ф32 | 67 | 73 | 50×40×106 |
M3330 | 12" | 1500 | 380～ | 1440 | 320 | 380～ | 2840 | ф300×40×ф75 | 113 | 120 | 65×45.5×110 |
M3335 | 14" | 1500 | 380～ | 1440 | 320 | 380～ | 2840 | ф350×40×ф75 | 123 | 130 | 65×48×112 |
M3340 | 16" | 3000 | 380～ | 1440 | 320 | 380～ | 2840 | ф400×40×ф127 | 133 | 140 | 72×53×114 |
M3350 | 20" | 4000 | 380～ | 1050 | —— | —— | —— | ф500×50×ф207 | 340 | 370 | —— |
