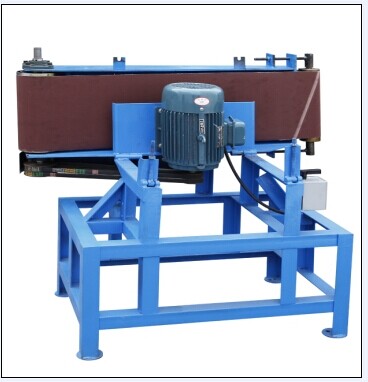

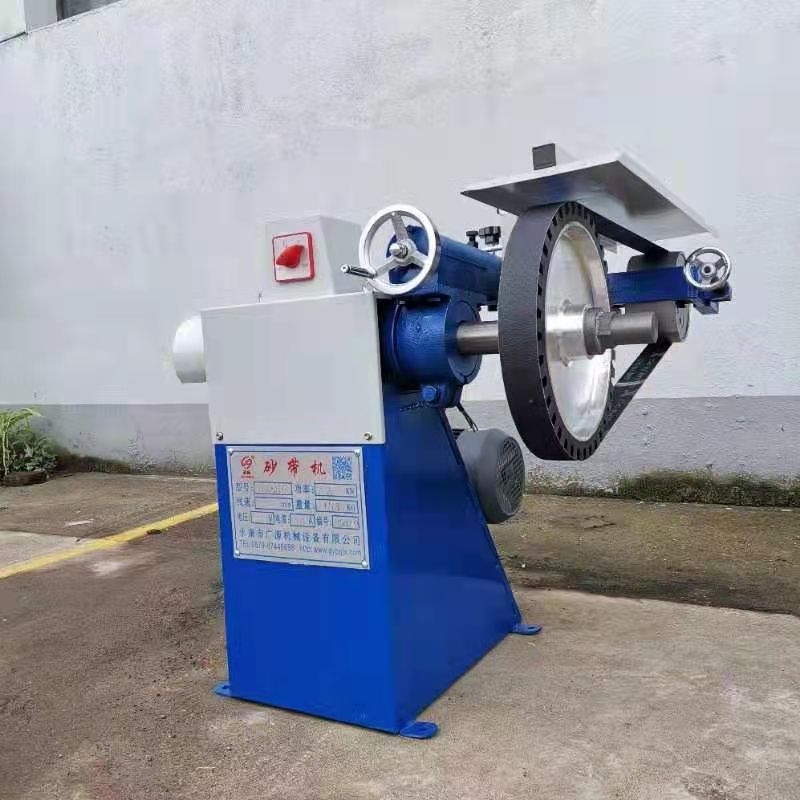

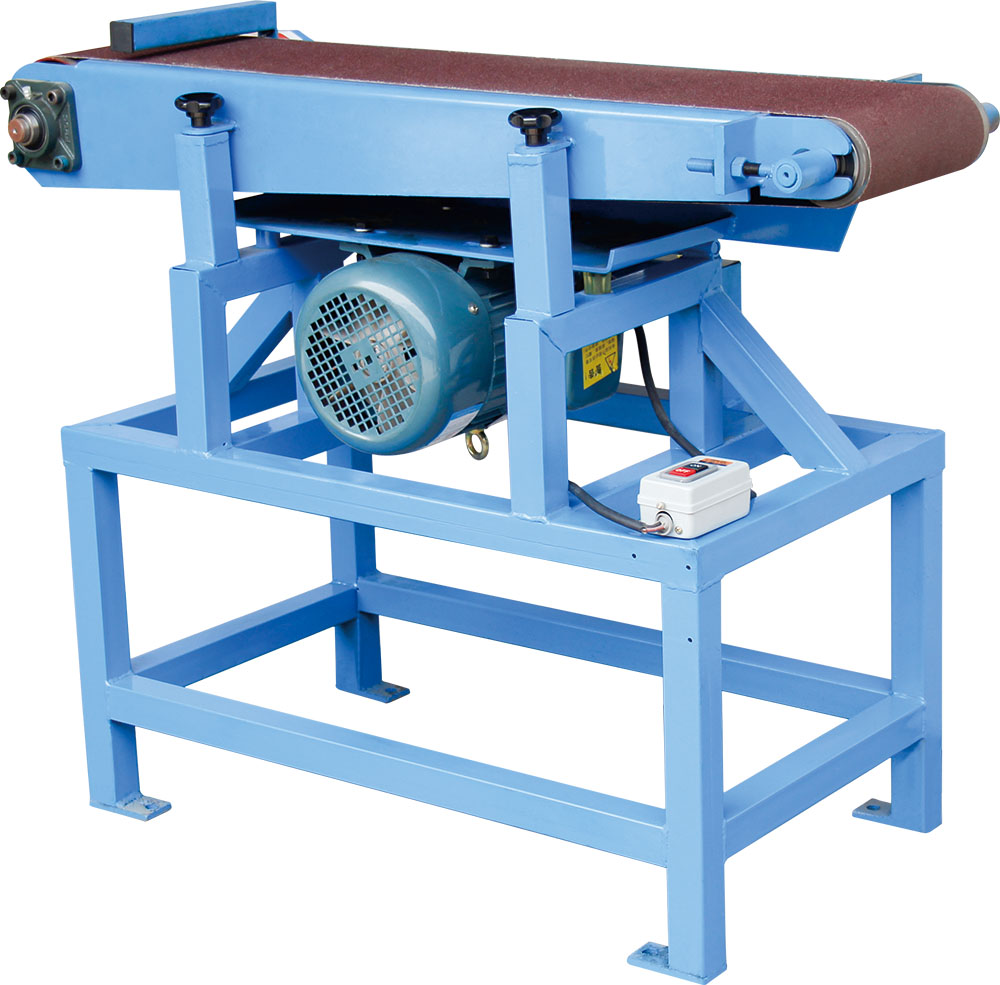

Double-end Sanding Belt Machine, Desk-Type Polishing Sanding Belt Machine, 2100*50 Vertical Sanding Belt Machine

Grinding, deburring, and cleaning. Dust-collecting grinding wheels are mainly used in industrial and mining enterprises for sharpening cutting tools and can also be used for grinding, deburring, and cleaning of ordinary small parts.

2 Low environmental requirements.Dust-extraction type grinding wheel machineCan be used at altitudes not exceeding1,000 meters, surrounding air relative humidity not exceeding 90%            High environmental temperature not exceeding40°C humid tropical region.

High dust removal rate                                                                      The machine utilizes dust removal bags, achieving a dust removal efficiency of over 98% with dust concentration less than 10 mg/m³. Compliant with the Ministry of Labor and Human Resources and the Ministry of Environmental Health.                                                                      Regulations for effective vacuuming performance                              Labor environment Operators are protected from dust exposure..

4 For indoor use only. Dust extraction sanders are not resistant to chemical corrosion and should not be used outdoors.

Section 2: Technical Specifications of the Grinding Wheel Machine

Section 3: Instructions for the Use of the Grinding Wheel Machine

1. Bench grinder in usePlease provide the Chinese content that needs to be translated into American English.Megohmmeter measuring its insulation resistance over 500 volts, with a value not less than 0.5 megohms.

2. Thoroughly inspect the grinding wheel before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the wheel. Gently tap it with a wooden mallet; a clear, crisp sound indicates the item is in good condition.

3.Dust Removal Grinding Wheel MachineBefore use, turn the shaft extension by hand to check for smooth and quick movement, and listen carefully for any rubbing sounds.

4. The rotation direction of grinding wheels and fans should match the rotation direction indicator.

5. Do not allow the workpiece to collide with the grinding wheel during operation.                  Gradually apply pressure to prevent the grinding wheel from being subjected to impact forces, thereby avoiding explosions and accidental incidents.

6. Grinding Wheel MachineProtective guard, replacement of grinding wheelIn addition to removal for maintenance or repair, it is strictly prohibited to remove during normal operations to ensure safety.                                                                      。

7. Two grinding wheels on a medium grit wheel machine have a difference in their wear diameter.            No larger than20%。

8. During operation, the grinding wheel machine should always produce normal sounds. If screeching, humming, or other abnormal noises occur, the machine should be stopped immediately to check the cause of the noise, and it can only be used again after the issue is resolved.

9. Use fabric dust bags for the grinding wheel machine. As more dust accumulates in the bags, the air intake of the fan decreases. Therefore, it is necessary to regularly open the front door, remove the dust bag, and empty the dust inside.
