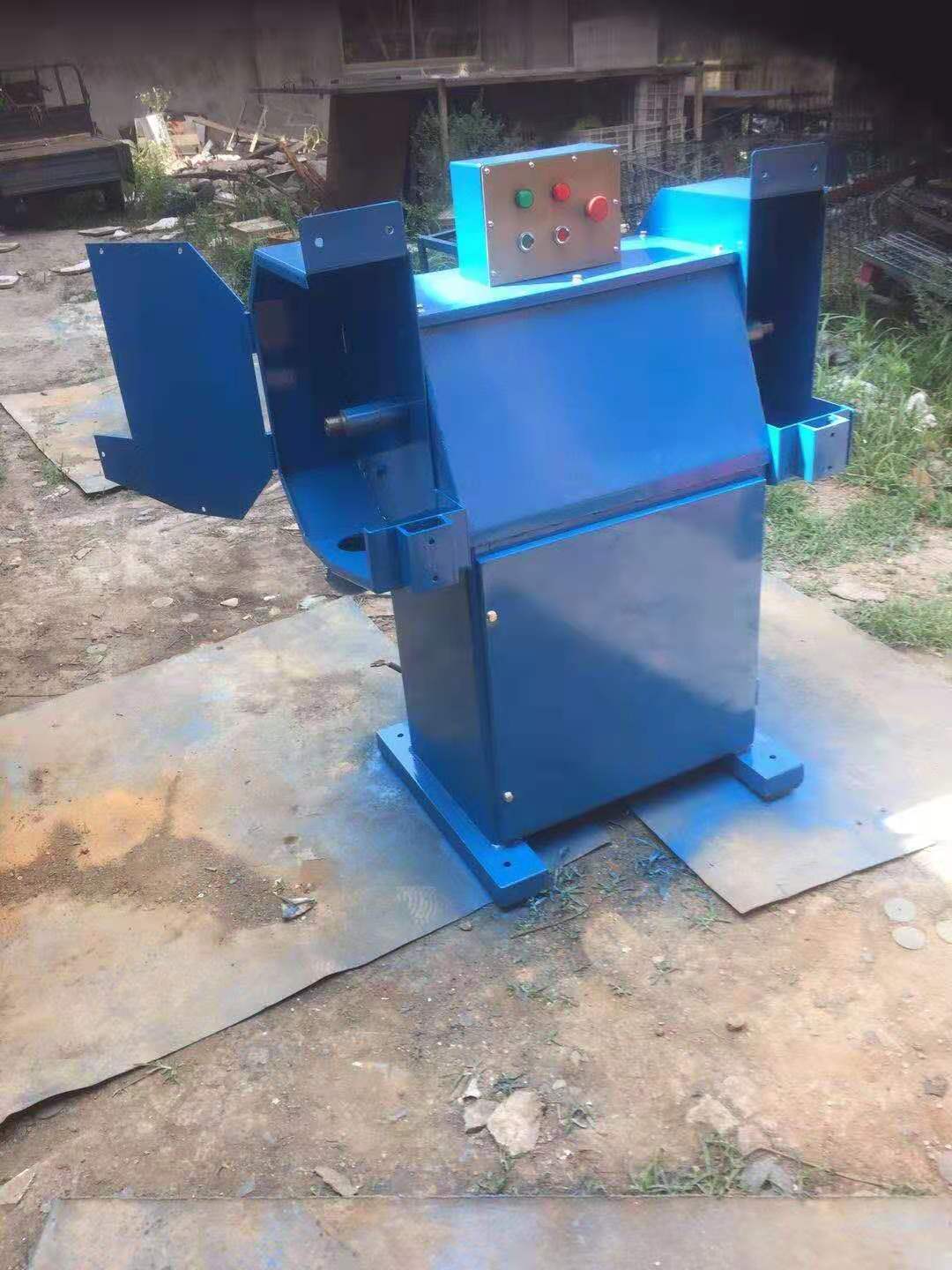

Castings Polishing Industrial Casting Factory M3040 Heavily Duty Diamond-Driven Wheel Grinder High-Speed Diamond Grinding Wheel Machine

1. Grinding, deburring, and cleaning. Dust-removing grinding wheels are primarily used in industrial and mining enterprises for sharpening cutting tools, and can also be used for grinding, deburring, and cleaning of small general parts.

2 Low environmental requirements.Dust-extraction Type Grinding Wheel MachineCan be used at altitudes not exceeding1,000 meters, surrounding air relative humidity not exceeding 90%            High environmental temperature not exceeding40℃ Wet Tropical Zone.

High dust removal efficiency                                                                      The machine uses bag dust removal, achieving an efficiency of over 98% and dust concentration less than 10 mg/m³. Complies with the Ministry of Labor and Human Resources and the Ministry of Environmental Health of the country.                                                                      Regulations for excellent vacuuming performance                              Work environment Operator is protected from dust exposure.

4 For indoor use only. Dustless grinding wheels are not resistant to chemical corrosion and must not be used outdoors.

Section 2: Technical Specifications of the Grinding Wheel Machine

Section 3: Grinder Operating Instructions

1. Grinder before use                  Please provide the Chinese content you would like translated into American English.Megaohmmeters above 500 volts are used to measure the insulation resistance, which must be no less than 0.5 megohms.

2. The grinding wheel machine should be thoroughly inspected before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the grinding wheel. Lightly tap it with a wooden mallet; a clear, crisp sound indicates the item is in good condition.

3.Dust Removal Grinding Wheel MachineBefore use, manually rotate the shaft extension to check for smooth and quick movement, and closely listen for any rubbing or scraping sounds.

4. The direction of rotation for grinding wheels and fans should match the direction indicator.

5. Do not allow the workpiece to collide with the grinding wheel during operation.                  Gradually apply pressure to prevent the abrasive wheel from being impacted, thus avoiding an explosion and any accidents.

6. Grinding Wheel MachineProtective cover, replacement of abrasive wheelIn addition to removal for repair, it is strictly prohibited to dismantle during normal times to ensure...                                                                      。

7. Two grinding wheels used on the medium grit wheel machine have a difference in wear of their diameters.            No larger than20%。

8. During operation, the grinding wheel machine should always produce normal sounds. If a shrill sound, humming, or other abnormal noises occur, the machine should be stopped immediately to investigate the cause of the noise. Use should only resume after the noise is successfully eliminated.

9. Wheel grinder uses dust bag filtration. As more accumulated dust builds up in the bags, the air intake of the fan decreases. Therefore, it is necessary to regularly open the front door, remove the dust bag, and empty the dust from inside the bag.
