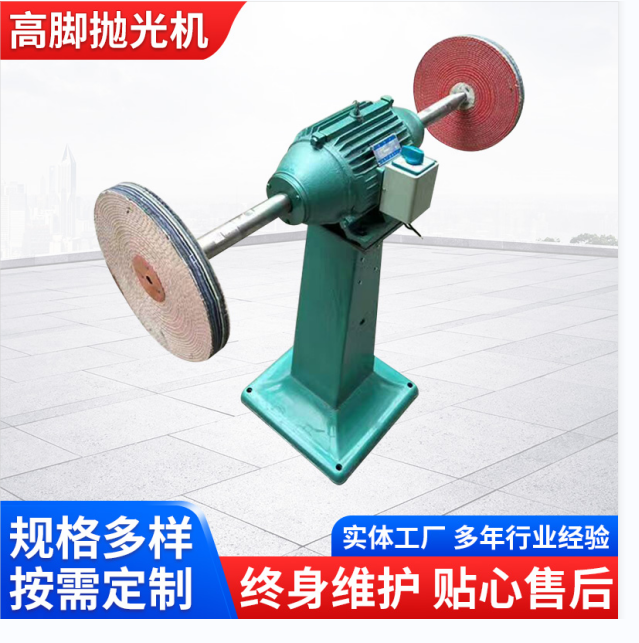

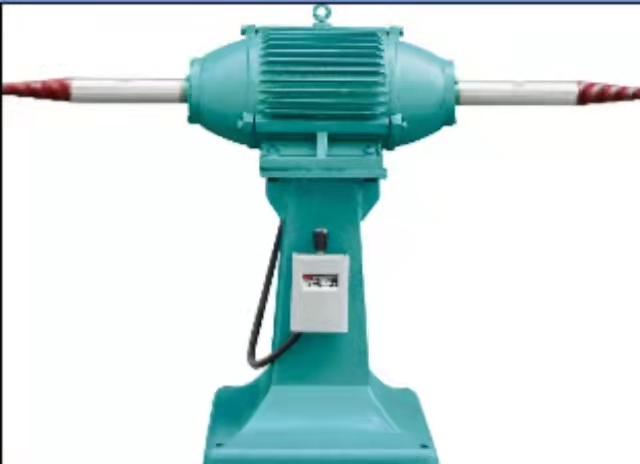

5.5 kW Dual-Head Vertical Polishing Machine, Stainless Steel Polishing Grinder, Electric Polishing Machine

1. Grinding, deburring, and cleaning. Dust-extraction grinding wheels are primarily used in industrial and mining enterprises for sharpening cutting tools, and can also be used for grinding, deburring, and cleaning of small general-purpose parts.

2 Low environmental requirements.Dust-extraction type grinding wheel machineCan be used at altitudes not exceeding1,000 meters, surrounding air relative humidity not exceeding 90%            High environmental temperature not exceeding40°C humid tropical region.

High dust removal efficiency                                                                      Our machine utilizes bag dust removal technology, achieving a dust removal efficiency of over 98%. The dust concentration is less than 10 mg/m³. Meets the requirements of the National Ministry of Labor and Human Resources and the Ministry of Environmental Health.                                                                      Regulations for excellent vacuuming performance                              Labor environment Operators are free from dust exposure.

4 For indoor use only. Dust-collecting grinding wheels are not resistant to chemical corrosion and must not be used outdoors.

Section II. Technical Specifications of the Grinding Wheel Machine

Section 3: Instructions for Use of the Grinding Wheel Machine

1. Bench Grinder, before use                  Please provide the Chinese content you would like translated into American English.Megaohmmeters measuring insulation resistance above 500 volts, with a value not less than 0.5 megaohms.

2. Thoroughly inspect the grinding wheel before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the wheel. Gently tap it with a wooden mallet; a clear, crisp sound indicates the item is in good condition.

3.Dust Removal Grinding Wheel MachinePrior to use, turn the shaft extension by hand to observe if it rotates smoothly and quickly, and closely listen for any grinding or rubbing noises.

4. The rotation direction of the grinding wheel machine and the fan should be consistent with the rotation direction indicator.

5. Do not allow the workpiece to collide with the grinding wheel during operation.                  Gradually apply pressure to prevent the grinding wheel from being impacted, thereby avoiding an explosion and any accidents.

6. Grinding Wheel MachineProtective cover, replacement of grinding wheelIn addition to removal for maintenance and repair, removal is strictly prohibited under normal circumstances to ensure safety.                                                                      。

7. Two grinding wheels on a medium-grit wheel machine have a difference in their wear diameter.            No larger than20%。

8. During operation, the grinding wheel machine should always produce normal sounds. If squealing, rumbling, or other abnormal noises occur, the machine should be stopped immediately to check the cause of the noise, and it can only be used again after the issue is resolved.
