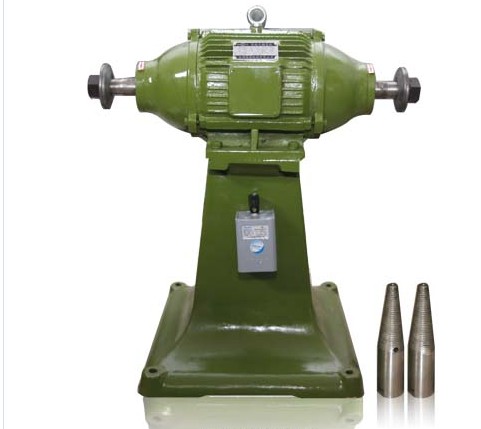

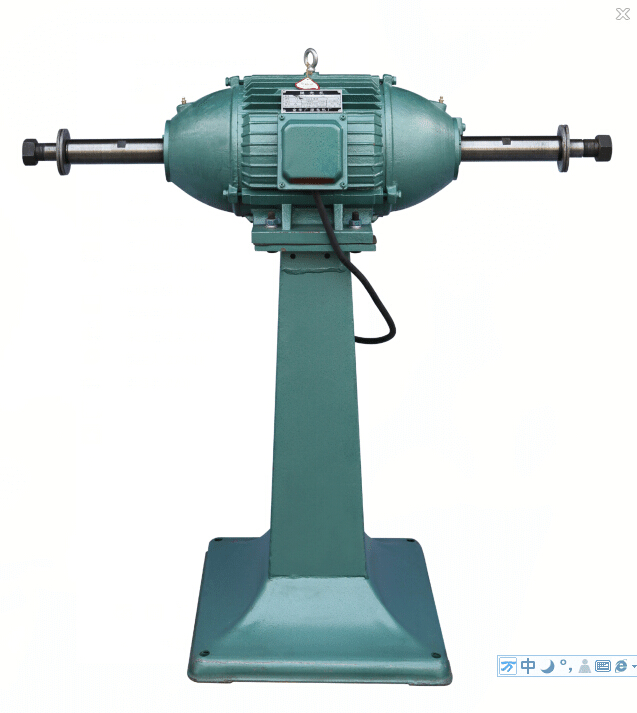

Grinding Wheel Machine, Tall Vertical Casting Grinder M3030, Belt Drive Grinding Wheel Machine

Grinding wheels are used for sharpening cutting tools and removing burrs from machinery.

The difference between a horizontal and vertical grinding wheel machine:

Table-mounted grinding wheel machine - wheel diameter150~300mm; Vertical grinding wheel machine wheel diameter 200~400mm

The bench grinder is suitable for deburring, finishing, and honing of small metal parts, as well as blade sharpening, and is widely used in mechanical manufacturing and household industries.

Vertical grinding wheels are suitable for deburring and polishing of medium to large metal parts, as well as for blade sharpening of cutting tools. They are widely used in mechanical manufacturing and by small and medium-sized enterprises.

M30Type Vertical Grinding Wheel Machine: Usage and Maintenance

Grinder prior to use                  Please provide the Chinese content you would like translated into American English.A megohmmeter over 500 volts to measure its insulation resistance, with a value not less than 0.5 megohms.

2. Prior to use, the parts of the grinding wheel machine should be thoroughly inspected for any damage or cracks due to transportation, and for any loose fasteners. If any are found, they should be addressed.  Ensure tight rotation. Pay special attention to the wheel for any cracks. Use a wooden mallet to gently tap, a clear, crisp sound indicates it is ready for use.

3. Before use, the grinding wheel machine should be manually rotated to check for smooth operation and listen for any rubbing noises.

4. Wheel grinder rotation direction                  In alignment with the rotation direction sign.

5. Do not forcibly collide the workpiece with the grinding wheel during operation.                  Gradually apply pressure to ensure the grinding wheel is not subjected to shock forces to prevent explosion.?

6. The protective cover of the trilateral abrasive wheel machine is strictly prohibited from being removed except for replacing new abrasive wheels and for maintenance and disassembly, to ensure safety.                                                                      。

7. Currently in use trilateral grinding wheel machine, the difference in diameter between the two worn grinding wheels            No more than the Great Beyond20%

8. Replace with a new grinding wheel. Ensure the wheel is balanced during installation, and the soft pad between the wheel and the mounting plate should be properly seated. Do not tighten the nut too much to prevent the wheel from cracking.            After                  Secure the protective cover.

9. The grease in the bearings should generally be replaced every six months.

10. The vertical grinding wheel machine is equipped with a worktable. When using the worktable, ensure that its supporting surface is at the same height as the motor shaft centerline. Adjust the height of the worktable after...                  Secure firmly.
