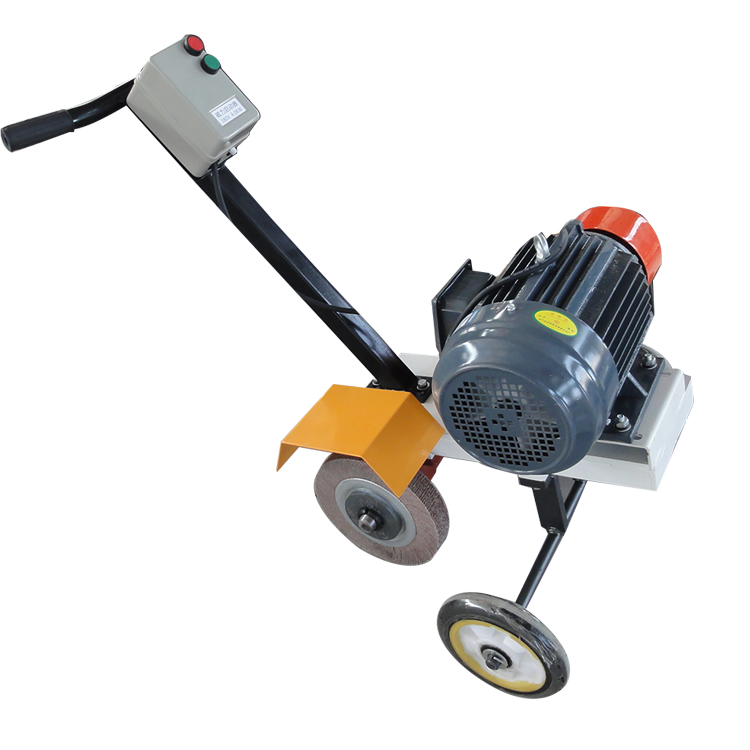

Handheld Grinding Wheel Machine MS3030 (3KW)

BrandAnyuan Model: MS3030 Custom Processing: Yes Rated Voltage: 380V

Grinding Wheel Diameter300mm, Rated Speed: 1420 r/min, Rated Input Power: 3 W

Polishing is a finishing process carried out in the foundry for castings. Regarding the polishing machine...(Also known as an abrasive wheel machine), the selection of the model should be based on the principles of ease of operation, high efficiency, labor and abrasive wheel savings, low labor intensity, long machine lifespan, and good economic benefits. This means choosing different grinding models based on factors such as casting size and geometric shape. Generally, small pieces are ground using fixed abrasive wheel machines, while large pieces are handled with suspended abrasive wheel machines, where the casting remains stationary while the suspended abrasive wheel machine operates.Radius of operation, or use a portable pneumatic/electric small grinding wheel machine, which can grind any part. Although convenient, it is not very efficient, consumes more grinding wheel segments, has high labor intensity, and high costs. A handcart-type grinding wheel machine is more suitable for grinding flat surfaces or cutting off excess sprue and riser roots on moderately high castings. The simple handcart-type grinding wheel machine has a straightforward structure and can be easily homemade in any scale foundry. It is easy to use, effective, and the outline dimensions can be adjusted according to the casting conditions.
