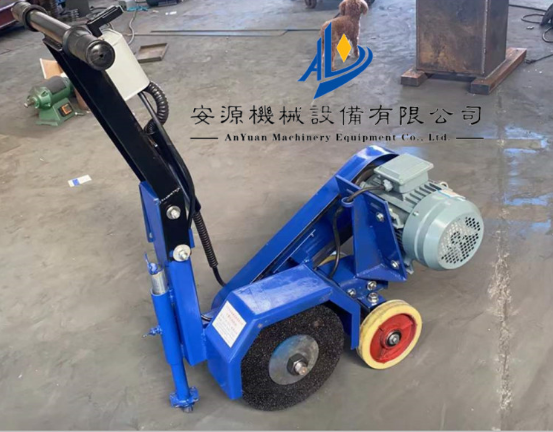

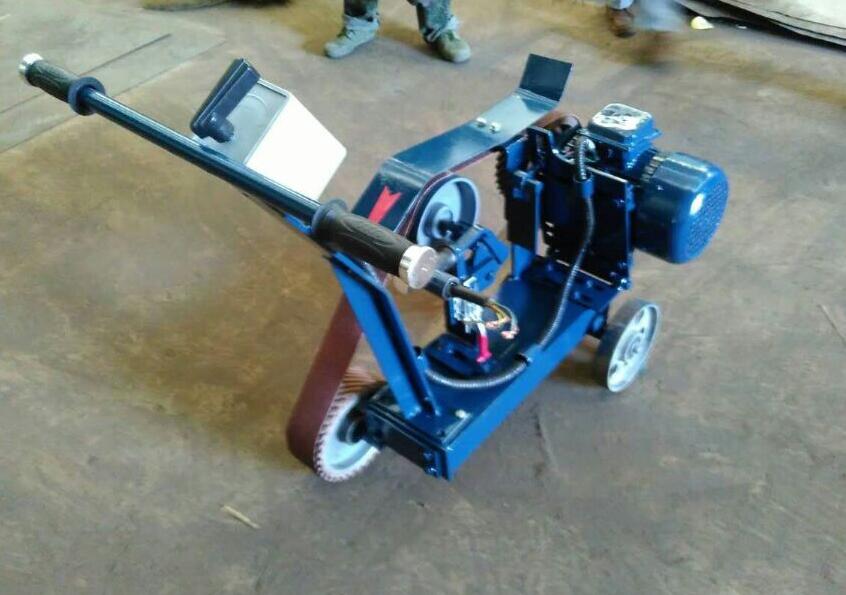

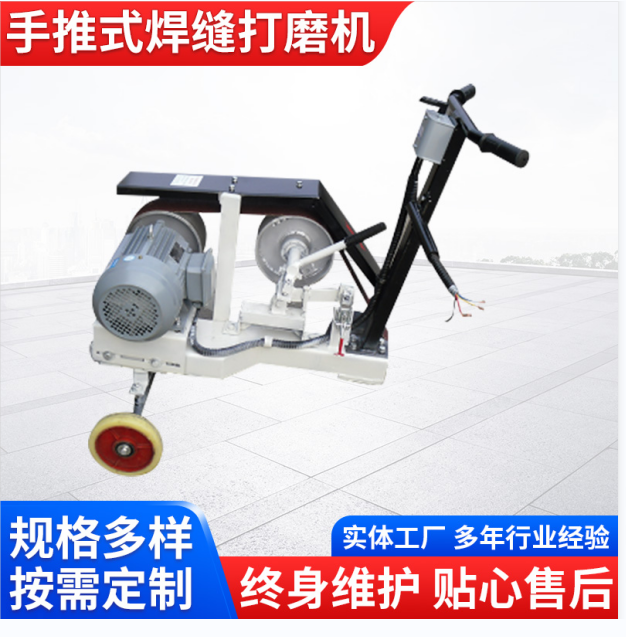

Weld Seam Sanding Machine, Electric Welding Joint Grinder, Push-Type Steel Plate Rust Removal and Polishing Machine

Suitable for grinding steel platesCarbon steel/Alloy steel/Ductile iron/Non-ferrous metals/Copper parts/Aluminum parts/Wood/Stone/Glass and other non-metallic materials.

Shipyard, boiler factory, large steel welding factory, cast steelIron Castings / Copper Castings Factory Grinding, deburring, and polishing machines.

Brand:Anyuan

Model：2100*75

Spec: Workpiece Diameter φ500 - φ2500 mm

Product Alias:Flat polishing

Application: Polishing and buffing of the internal and external surfaces of the head

 Principles of Machining Machines

By friction between the abrasive wheel or polishing wheel and the workpiece surface, one canEnd caps interior and exteriorSurface and welds are ground and polished to improve the surface roughness of the workpiece.

2. The machine tool structure consists of the mechanical and electrical control components.

3. Head Cap Polishing

3.1 Head Flange Polished Surface Setting: The internal surface curve of the head can be roughly divided into three sections: front, middle, and rear, which is controlled by three-speed sections.

3.2 The control box provides point-to-point operation in four directions (up, down, left, right) during the sealing head polishing, facilitating operators to approach the sealing head, observe, and adjust the contact between the grinding wheel and the workpiece.

4. Basic Parameters

4.1 Polished Workpiece Dimensions: Workpiece Diameter φ500 - φ2500 mm

4.2 Surface roughness Ra ≤ 0.25 μm (achieved sequentially)

4.3 Production Efficiency: 9 square meters per hour.

4.4 The workpiece rotation and horizontal feed are both variable frequency stepless speed control, further enhancing work efficiency.

4.5 Suitable for polishing materials such as abrader wheels, cloth wheels, and sisal wheels; nylon wheels can achieve surface etching.
