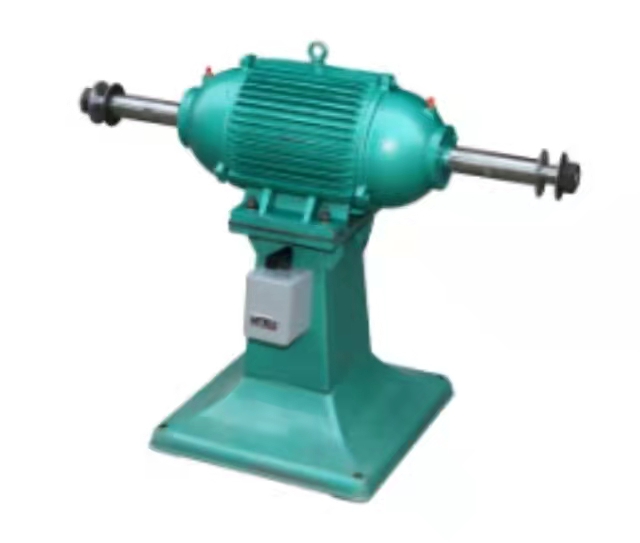

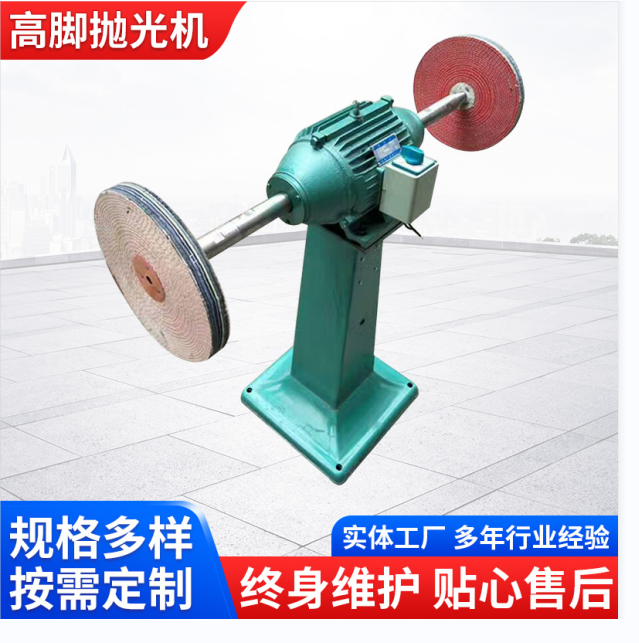

2.2-kW Flat Tip Interchangeable Polishing Machine

1. Grinding, deburring, and cleaning. Dust-removing grinding wheels are primarily used in industrial and mining enterprises for sharpening cutting tools and can also be used for grinding, deburring, and cleaning of small parts.

2 Low environmental requirements.Dust-extraction type grinding wheel machineCan be used at altitudes of no more than1,000 meters, surrounding air relative humidity not exceeding 90%            High environmental temperature not exceeding40°C humid tropical region.

High dust removal efficiency                                                                      This unit utilizes dust removal with bag filters, achieving an efficiency of over 98%, with dust concentration less than 10 mg/m³. Compliant with the Ministry of Labor and Human Resources and the Ministry of Environmental Health of the country.                                                                      Regulations for superior vacuuming performance                              Labor environment Operators are protected from dust exposure.

4 For indoor use only. Dustless grinding wheels are not resistant to chemical corrosion and must not be used outdoors.

Section 2: Technical Specifications of the Grinding Wheel Machine

Section 3: Instructions for the Use of the Grinding Wheel Machine

Grinding wheel machine before use                  Please provide the Chinese content to be translated.Megaohmmeters above 500 volts are used to measure the insulation resistance, which must not be less than 0.5 megohms.

2. Thoroughly inspect the grinding wheel before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the grinding wheel. Gently tap it with a wooden mallet; a clear, crisp sound indicates the item is in good condition.

3.Dust Removal Grinding Wheel MachineBefore use, manually rotate the shaft extension to check for smooth operation and listen for any rubbing noises.

4. The direction of rotation for grinding wheels and fans should match the direction indicator.

5. Do not allow the workpiece to collide with the grinding wheel during operation.                  Gradually apply pressure to prevent the abrasive wheel from being subjected to impact forces, thereby avoiding an explosion and potential accidents.

6. Grinding Wheel MachineProtective cover, replacement of grinding wheelIn addition to removal for maintenance and repair, removal is strictly prohibited under normal circumstances to ensure...                                                                      。

7. Two grinding wheels used on a medium-grit wheel machine, with a difference in their wear diameter.            No larger than20%。

8. During operation, the grinding wheel machine should always produce normal sounds. If squealing, rumbling, or other abnormal noises occur, the machine should be stopped immediately to check the cause of the noise. Only after the cause is identified and resolved should the machine be used again.

9. Wheel grinder uses fabric bag dust removal. As more dust accumulates in the bags, the air intake of the fan decreases. Therefore, it should be opened regularly to remove the dust bags in the front door and empty the dust inside.
