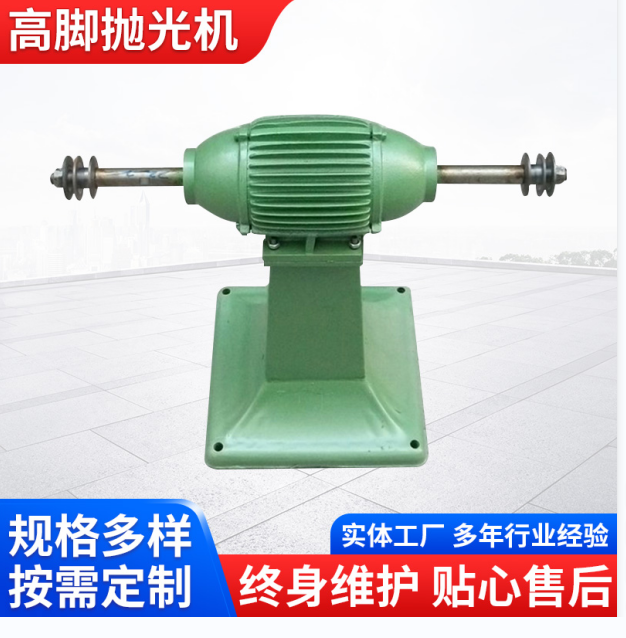

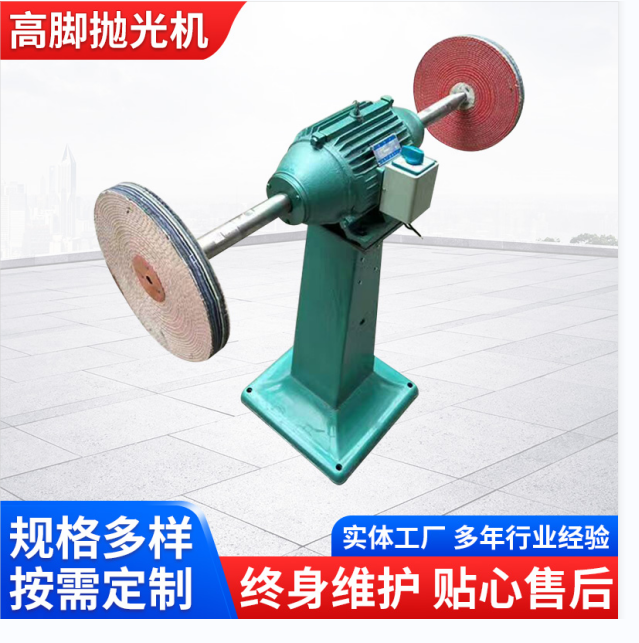

4-kilowatt (single-use) low-profile polishing machine, interchangeable tip polishing machine
Grinding, deburring, and cleaning. Dust-removing grinding wheels are mainly used in industrial and mining enterprises for sharpening cutting tools and can also be used for grinding, deburring, and cleaning of small parts.
2 Low environmental requirements.Dust Extraction Grinding Wheel MachineCan be used at altitudes not exceeding1000 meters, surrounding air relative humidity not exceeding 90% High environmental temperature not exceeding40°C humid tropical region.
High dust removal efficiency This unit utilizes bag dust removal, achieving an efficiency of over 98% with dust concentrations less than 10 mg/m³. Complies with the Ministry of Labor and Human Resources and the Ministry of Environmental Health. Regulations for excellent vacuuming performance Labor environment Operators are free from dust exposure.
Use indoors only. Dust-extraction grinding wheels are not resistant to chemical corrosion and should not be used outdoors.
Section 2: Technical Specifications of the Grinding Wheel Machine
New model | MC3015 | MC3025 | MC3030 | MC3035 | MC3040 |
Power | 0.25 | 0.75 | 1.5 | 1.75 | 2.2 |
Frequency | 50 | 50 | 50 | 50 | 50 |
Current | 1.7 | 1.7 | 3.4 | 3.95 | 4.9 |
RPM | 2850 | 2850 | 1420 | 1440 | 1430 |
Efficiency | 67 | 75 | 79 | 80 | 81 |
Section 3: Instructions for the Use of the Grinding Wheel Machine
1. The grinding wheel machine before use Please provide the Chinese content you would like translated into American English.Megohmmeters measuring above 500 volts determine their insulation resistance, which must be no less than 0.5 megohms.
2. Thoroughly inspect the grinding wheel before use to check for any damage or cracks due to transportation. Pay special attention to any cracks in the sandwheel. Gently tap it with a wooden mallet; a clear, crisp sound indicates the item is in good condition.
3.Dust Removal Grinding Wheel MachinePrior to use, manually rotate the shaft extension and observe if the rotation is smooth and effortless. Listen closely for any rubbing or grinding noises.
4. The rotation direction of the grinding wheel machine and the fan should match the direction indicator.
5. Do not allow the workpiece to collide with the grinding wheel during operation. Gradually apply pressure to prevent shock forces on the grinding wheel, avoiding explosions and accidents.
