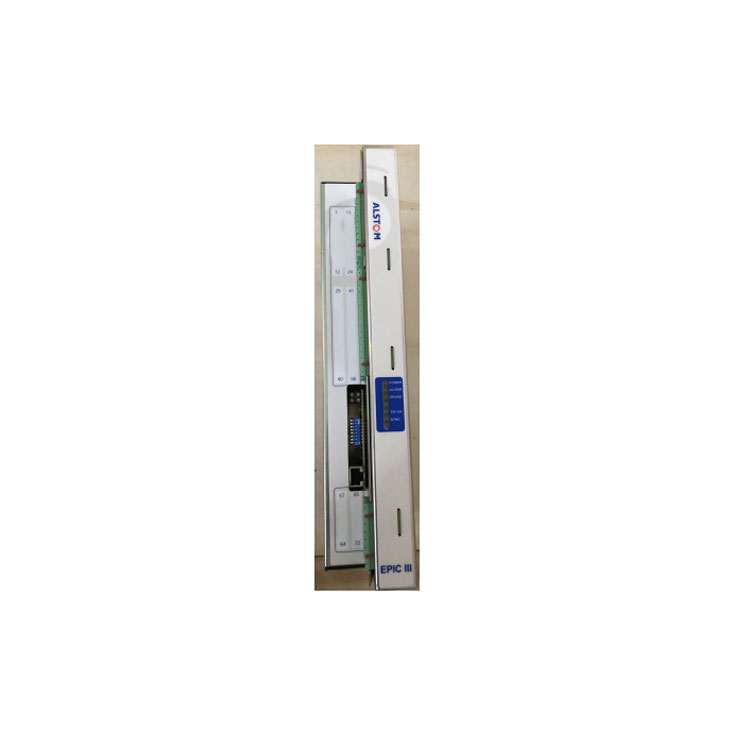

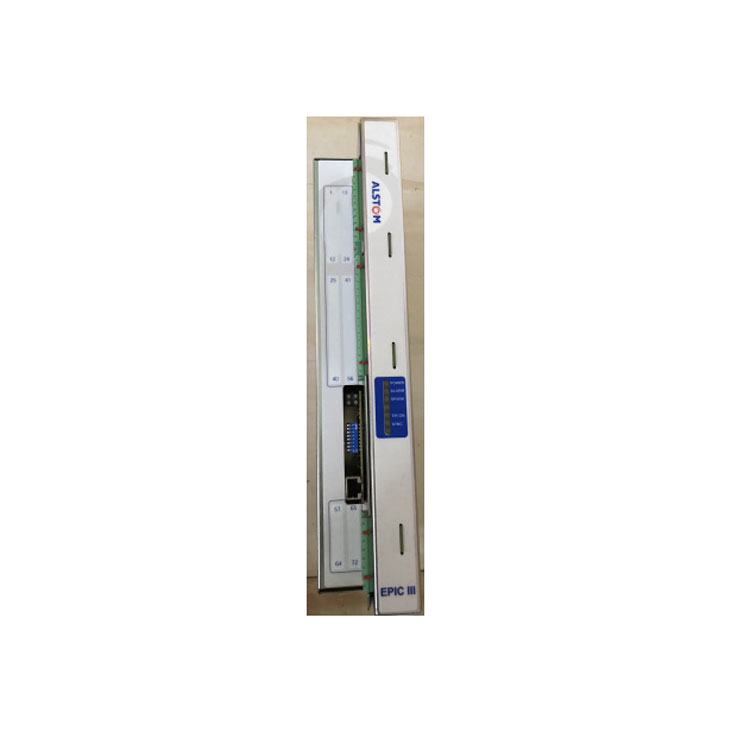

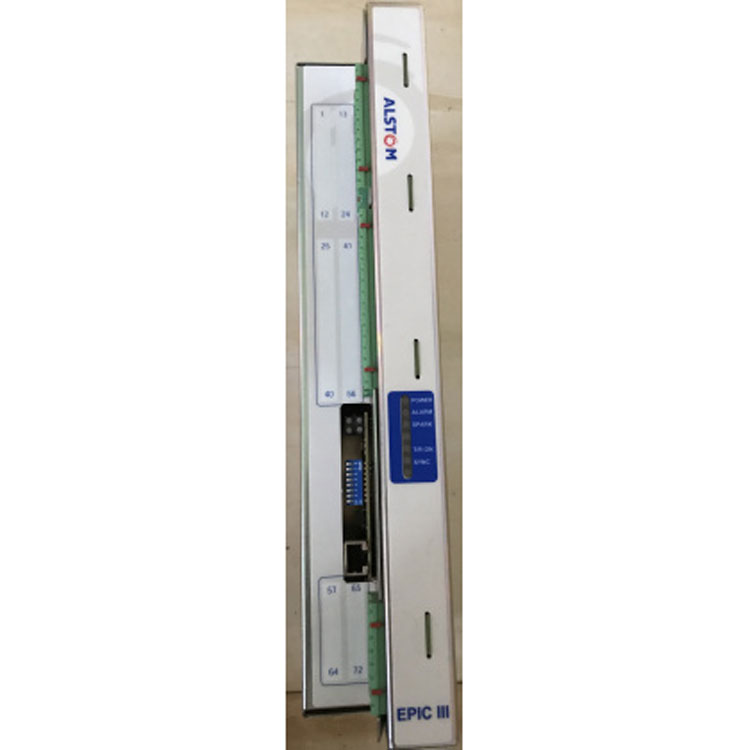

EPIC-III Electrostatic Dust Collector Controller

Product Description

The main control board is a high-performance single-board computer system with the 80C196KB microcontroller from the MCS-96 series as its core. The main chips it uses include: Microcontroller 80C196KB, Random Access Memory 62256, Read-Only Memory PSD311, Memory 93LC66, D/A Converter AD558TD, Programmable Parallel Interface 8255A. Besides the microcontroller and peripheral chips, the main control board also incorporates a 2x16 character LCD display driver circuit, functional key input circuit, serial communication optocoupler driver circuit, watchdog reset circuit, and more. 2. Integrated Board The integrated board's main circuits include voltage regulator, zero-crossing pulse signal generation, input processing for various analog signals and spark detection, I/O interfaces, and optocoupler thyristor triggering. 3. Sampling Signal Board The sampling signal board includes signal sampling and ammeter shunt elements.
