Product Introduction

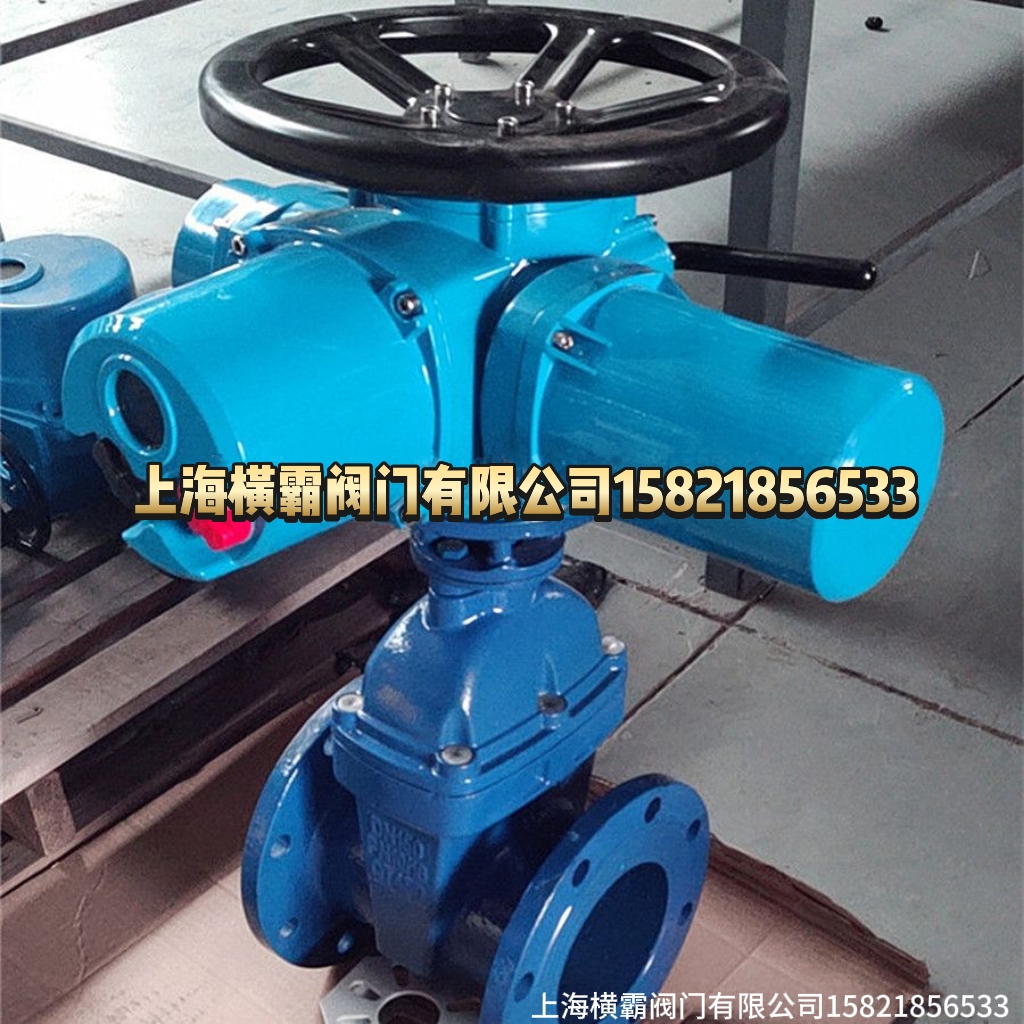

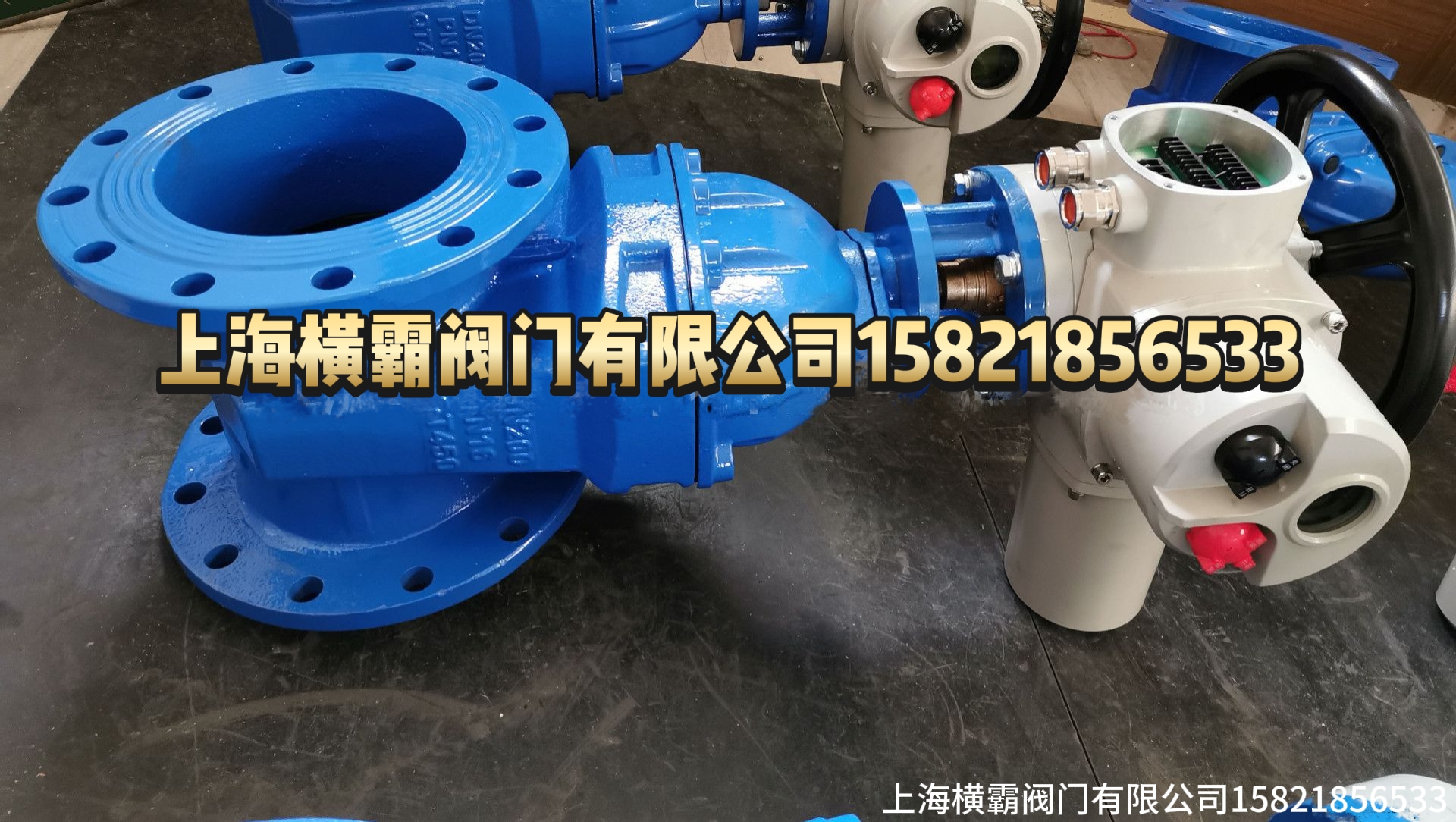

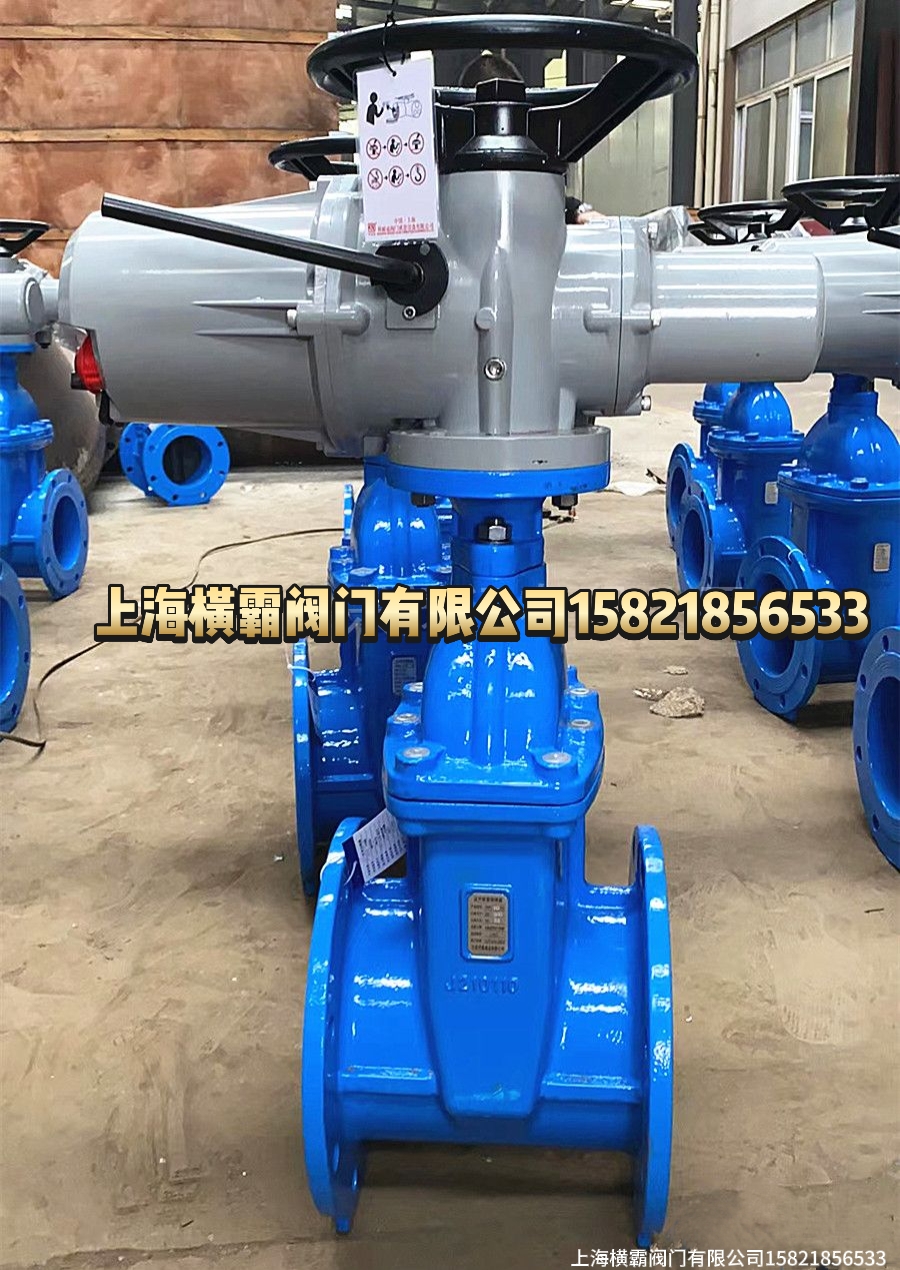

RRHX Electric Elastic Seat Sluice Valves (with exposed stem), RVHX Electric Non-exposed Stem Elastic Seat Sluice Valves, Z945X Electric Non-exposed Stem Soft Seal Sluice Valves, Z941X Electric Soft Seal Sluice Valves (with exposed stem), and other electric sluice valves, which can be equipped with various electric actuators for remote and automatic control. They feature sensitivity, reliability, and easy installation, and are widely used on fluid pipelines in water supply, sewage, construction, petroleum, chemicals, food, pharmaceuticals, light industry, textile, power ships, metallurgy, and energy systems as regulating and cutoff devices.
Product Features
Key components materials
| Serial Number | Part Name | Material |
|---|---|---|
| 1 | Valve body | Gray Cast Iron, Ductile Cast Iron, Cast Steel |
| 2 | Gate valve | QT Ductile Iron with EPDM or NBR Rubber Coating |
| 3 | Valve Stem | 45 Steel, 40Cr Stainless Steel |
| 4 | Valve cover | Gray Cast Iron, Ductile Cast Iron, Cast Steel |
| 5 | Bracket | Gray Cast Iron, Ductile Cast Iron, Cast Steel |
| 6 | Electric Actuator | DZW series multi-revolution electric valve actuators |
Primary connection dimensions
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| H (Full Open) | 732 | 773 | 820 | 870 | 915 | 1003 | 1110 | 1263 | 1630 | 1550 | 1610 | 1900 | 1938 | 2120 |
| Category | Details |
|---|---|
| Model | Z945X - 10/16Q/C/P etc. |
| Connection Type | Flanges, welding, etc. |
| Material | Cast steel, stainless steel, carbon steel, etc. |
| Nominal Bore Size | DN15~DN1800 mm |
| Applicable Medium | Water, steam, oil products, various highly corrosive chemical media, weak acid and alkali media, ammonia gas, nitrogen gas, oxygen gas, hydrogen gas, liquefied gas, air, coal gas, dust-containing gas |
| Sealing Type | Rigid sealed type |
| Standard | National Standard, American Standard, German Standard, etc. |
| 外形 - Appearance | Medium to large sizes |
| Flow Direction | Bi-directional |
| Drive Method | Electric, manual, etc. |
| Parts and accessories | Bolts, washers, etc. |
| Usage | Control the opening, closing, and adjustment of pipeline media |
| Pressure Environment | PN0.6~1.6MPa |
| Operating Temperature | -25~+80℃ |
| Type | Direct Connect |
| Control Type | Switch type, adjustable type, explosion-proof type, integral type |
| Type of Protection | Outdoor type, general explosion-proof, mine-used explosion-proof, etc. |
| IP Rating | IP65 |
| Power Voltage | Standard AC380V 50Hz |
| Lead Time | Shipment within 3 days upon receipt of payment |
| Control and feedback signals | 4-20mA DC analog signal or switch signal |
Product Packaging & After-Sales Service
Our company packages this series of products uniformly in wooden cases, which is both convenient for transportation and provides excellent protection for the products. In terms of quality and service assurance, we solemnly promise:
If you have any questions about the product, please call our 24-hour service hotline at 15821856533 or log in to our website. We will arrange an engineer to answer your questions and clarify any doubts as soon as possible. We are always committed to providing you with the best service.
Logistics Distribution
Multiple logistics and delivery methods are available, including SF Express, YTO Express, Deppon Express, and national rail and road transportation. You can freely choose according to your needs. Delivery destinations cover major cities, transit points, and ports both domestically and internationally.
DeclarationAll text, data, and images in this article are for reference only. For specific product performance parameters, structural dimensions, prices, and other detailed information, please contact the relevant department personnel of our company. 24-hour service hotline: 15821856533.
